There won't be much commentary, this is a huge job, one I regretted  more than once during the months it took me... West Marine lost my fridge, then it showed up and when I got it home from the store I found massive damage from a wayward fork lift tine. All in all, it took about four weeks to get one.

Getting the old Dometic 3 Way out was not hard, but the factory installation is horrible and putting it back would be a great chore. See this thread:

https://olivertraveltrailers.com/forums/topic/9040-how-to-dometic-3-way-fridge-removal-and-demolition/

And this one:

https://olivertraveltrailers.com/forums/topic/9169-how-to-isotherm-intelligent-control-for-cruise-130-refrigerator/

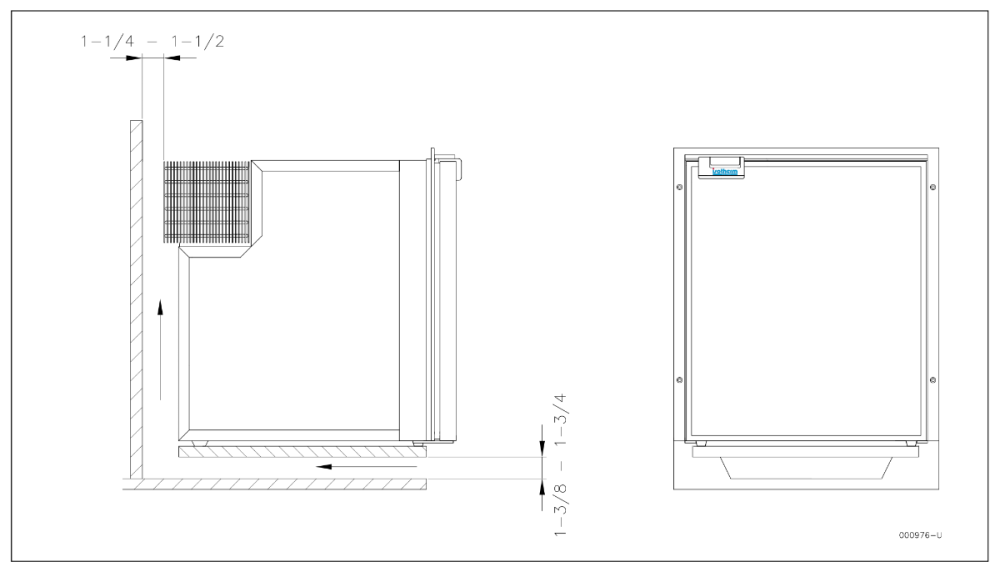

The huge problem is that the fridge cavity is a fiberglass molding which is "out of true" in every dimension. NOTHING was parallel, true or at 90 degrees to each other, and the galley bulkhead was a disaster, it was not cut properly and the tech simply  taped a flimsy extension that leaked copious amounts of outside air and dirt. Since I have the tools and skills, I decided to use 15 mm Baltic Birch to make a true and straight cabinet inside the wonky fiberglass.

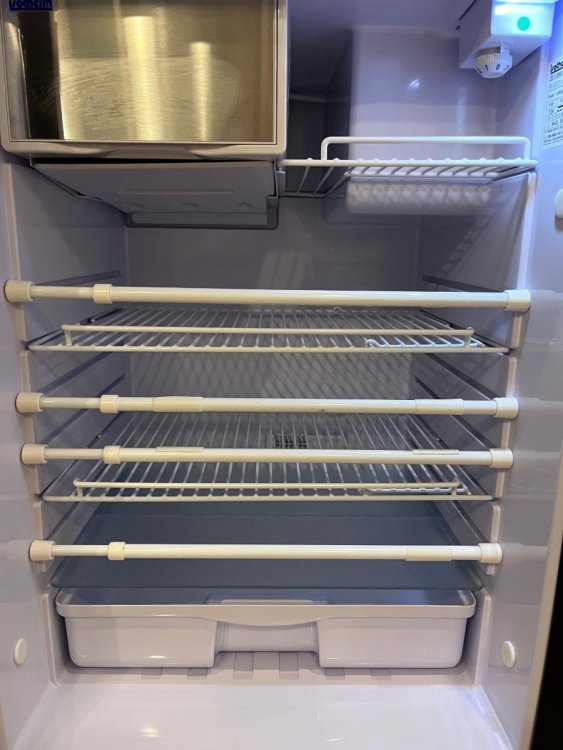

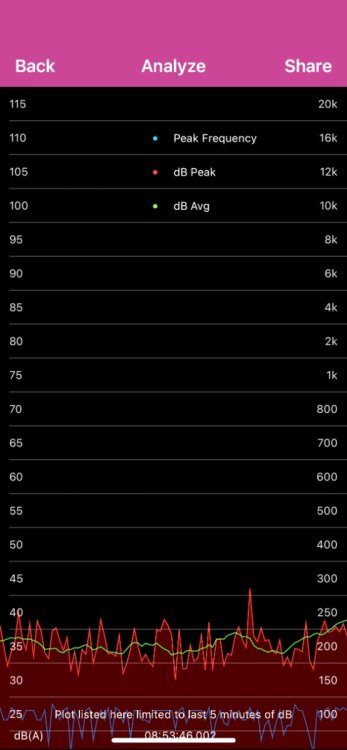

Here are a bunch of pics in approximate order. If anyone has a specific question, ask. BTW the final installation turned out to be beautiful. I used the six flange screws AND the four internal side screws. All ten go into solid thick plywood. It is super sturdy and dead silent in operation.

John Davies

Spokane WA













SOLD 07/23 "Mouse":  2017 Legacy Elite II Two Beds, Hull Number 218, See my HOW TO threads:

Tow Vehicle: 2013 Land Cruiser 200, 32” LT tires, airbags, Safari snorkel, Maggiolina Grand Tour 360 Carbon RTT.

travel trailer units for sale
Find Oliver Travel Trailers for Sale
New Travel Trailers for Sale
Posted

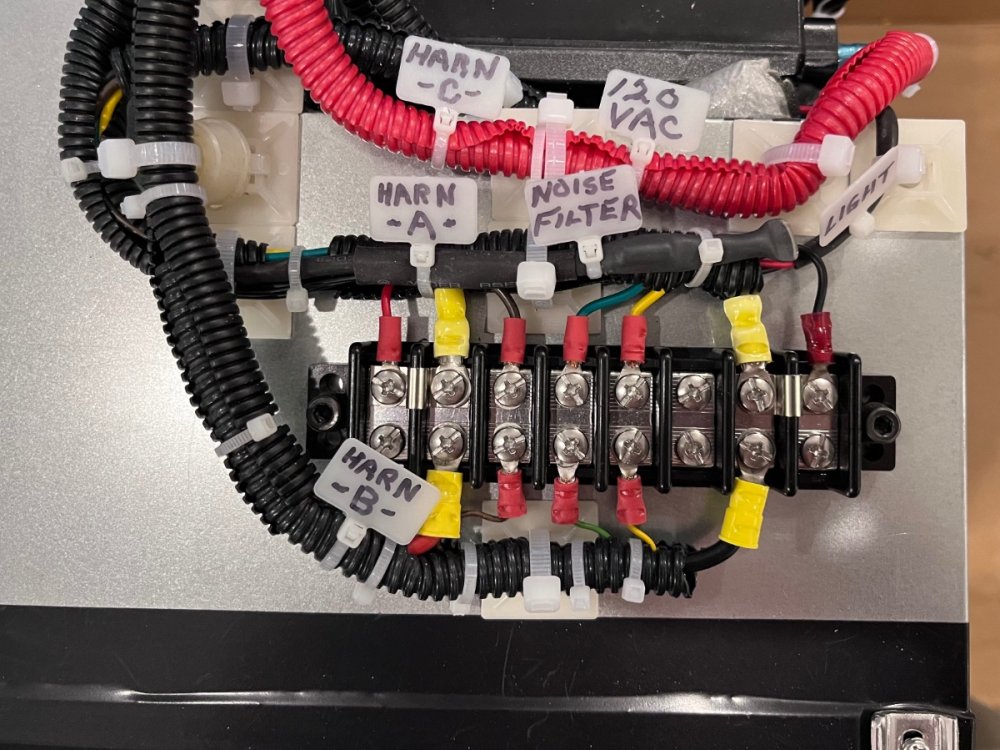

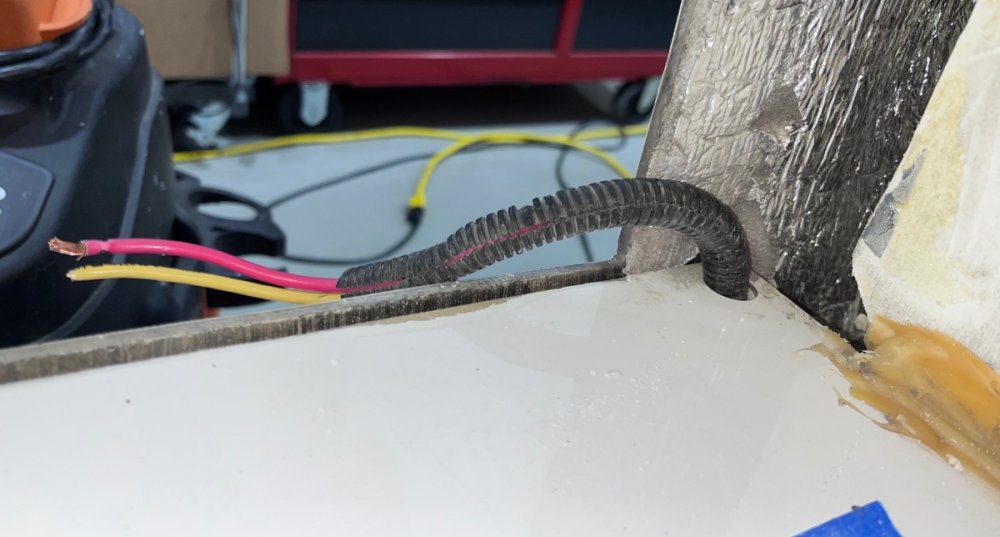

PicsIMG_0681.thumb.jpeg.8ff1a25530e8c0cf27de52a6126ff7b5.jpegIMG_0671.thumb.jpeg.ad173001f9cb6d35b1cc4611217fb3af.jpegIMG_0670.thumb.jpeg.d0e687179e278ca2df6250a2c4e29770.jpegIMG_0663.thumb.jpeg.fc1693606dde1fe984347dca7a84e021.jpegIMG_0660.thumb.jpeg.f62a88908bfe3877587df6c63c7cacdc.jpegIMG_0657.thumb.jpeg.fafc07a7c4490362b9a10d80760b9f4b.jpeg







SOLD 07/23 "Mouse":  2017 Legacy Elite II Two Beds, Hull Number 218, See my HOW TO threads:

Tow Vehicle: 2013 Land Cruiser 200, 32” LT tires, airbags, Safari snorkel, Maggiolina Grand Tour 360 Carbon RTT.

Posted (edited)

Pics

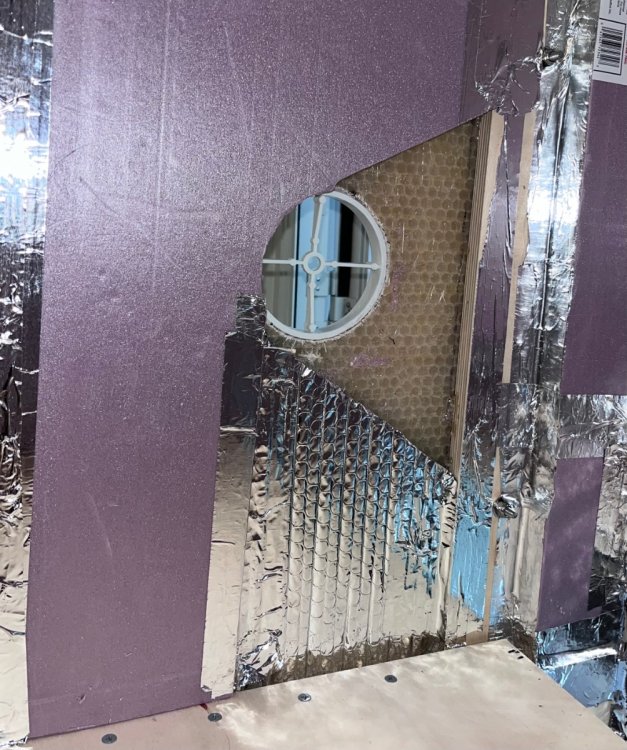

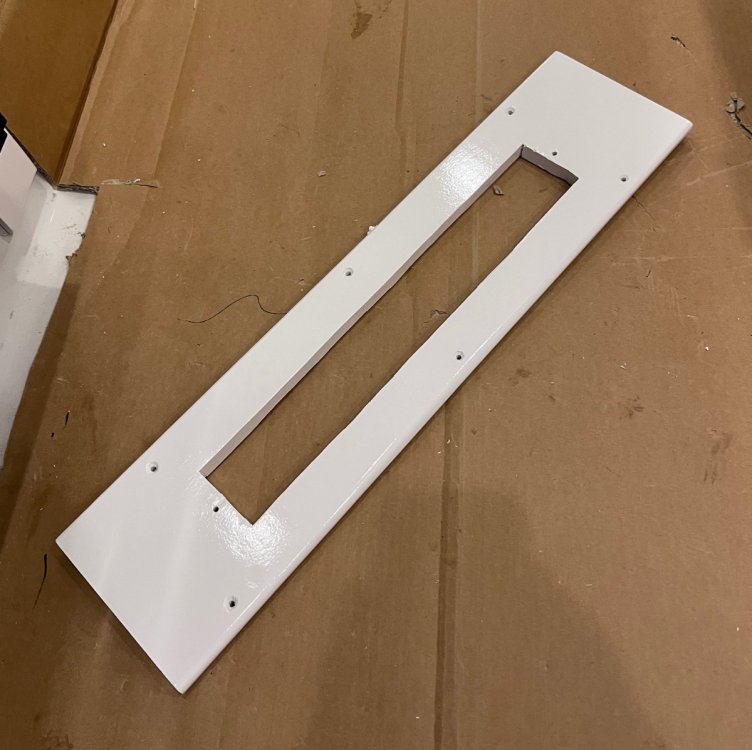

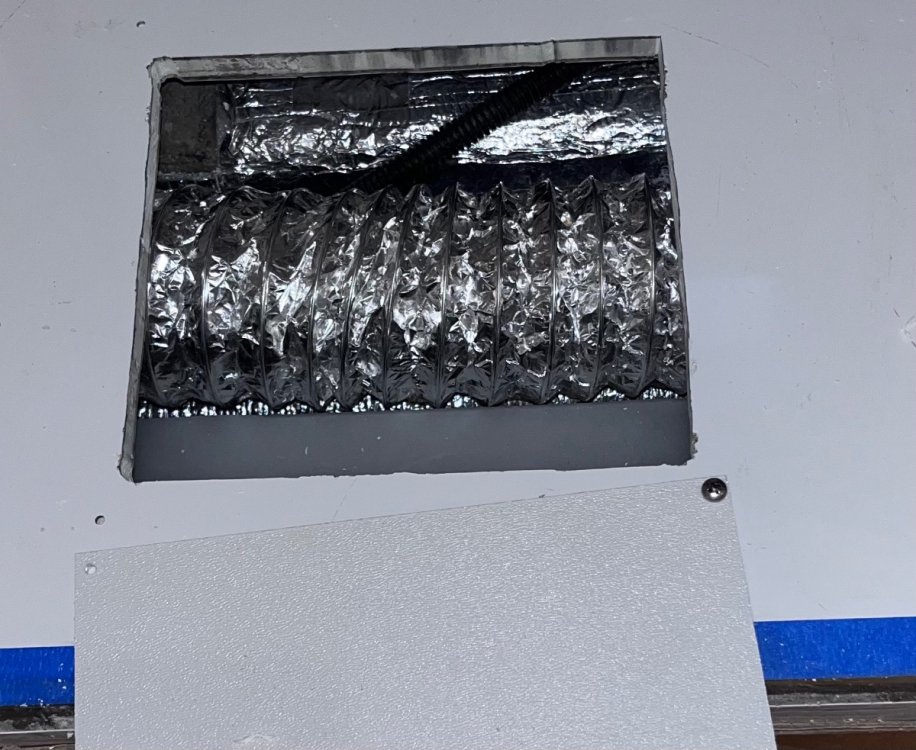

The sliding inner flow adjuster for the register must be completely removed. Cut off the plastic retainers.








Edited by John E Davies

SOLD 07/23 "Mouse":  2017 Legacy Elite II Two Beds, Hull Number 218, See my HOW TO threads:

Tow Vehicle: 2013 Land Cruiser 200, 32” LT tires, airbags, Safari snorkel, Maggiolina Grand Tour 360 Carbon RTT.

Posted

Pics

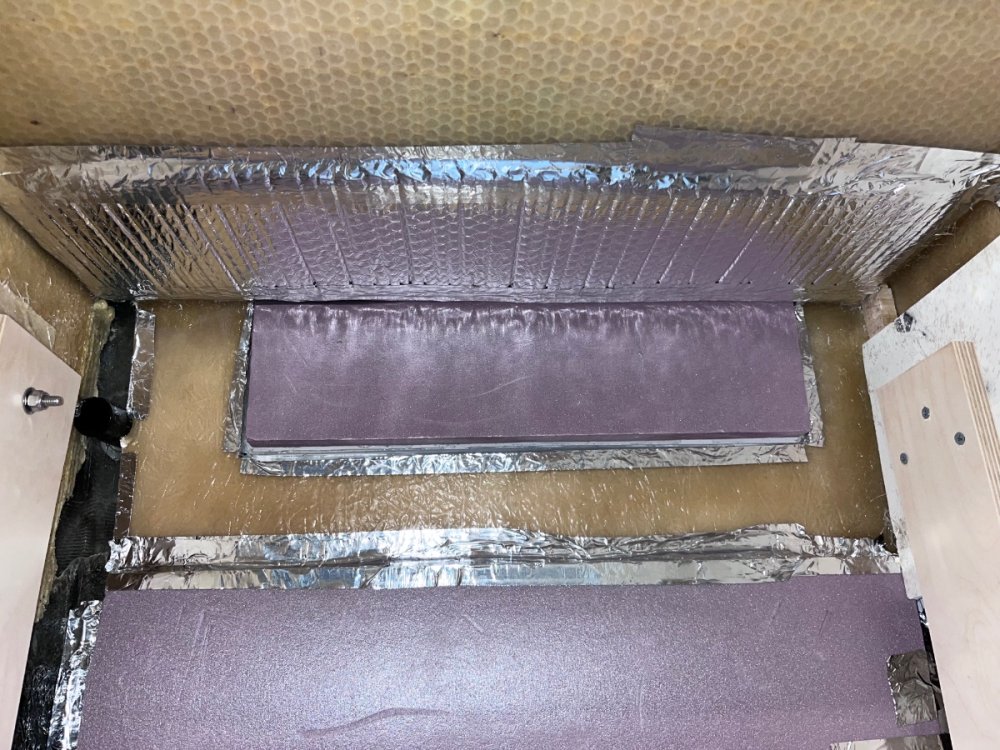

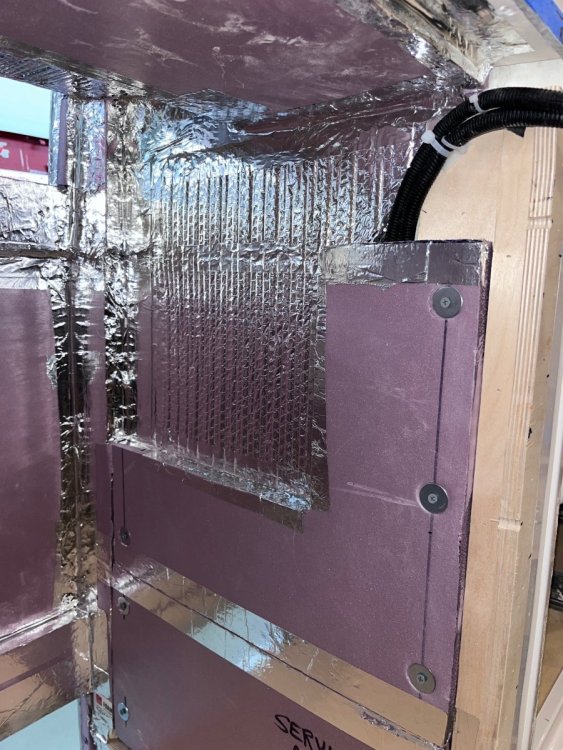

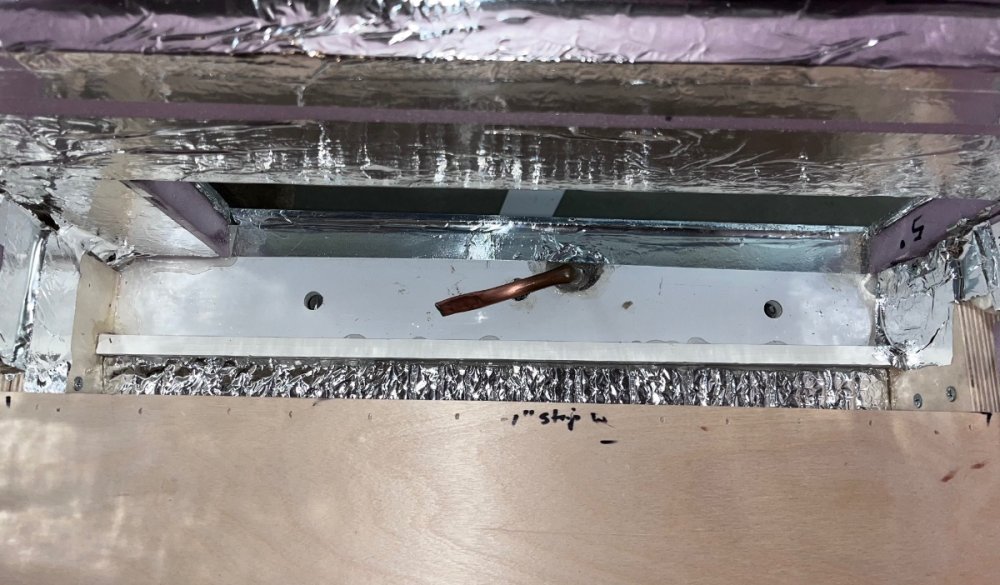

The entire cavity is fully insulated with R5 foam board, spray foam and bubble insulation, including the outside hull panels.

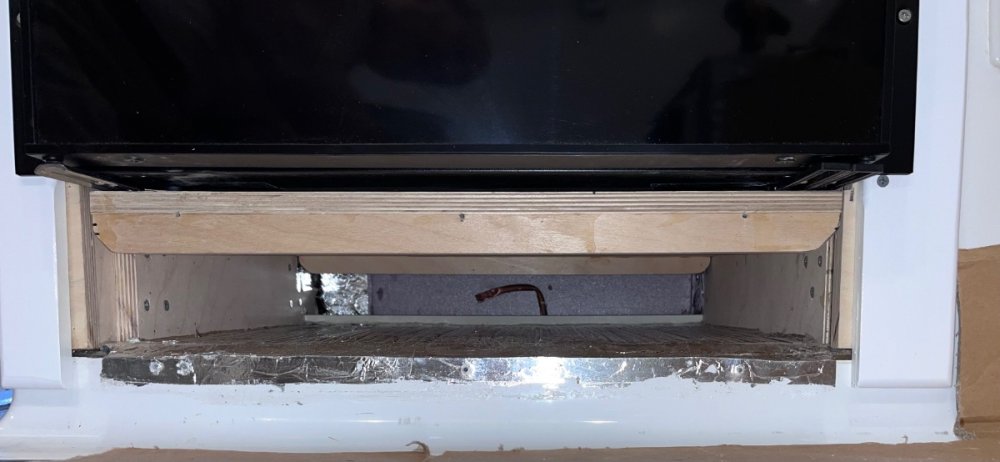

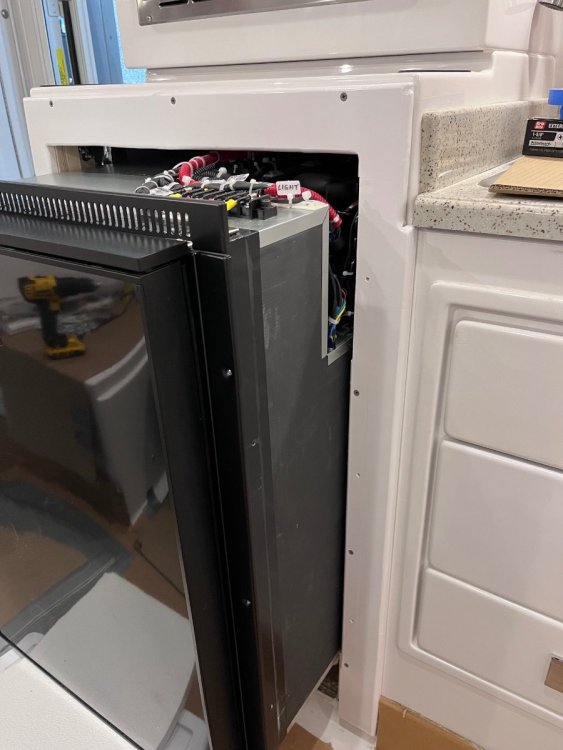

The fridge must be supported under the door to keep it approximately level, or it will drop down and possibly damage the wood trim or wiring on top!




SOLD 07/23 "Mouse":  2017 Legacy Elite II Two Beds, Hull Number 218, See my HOW TO threads:

Tow Vehicle: 2013 Land Cruiser 200, 32” LT tires, airbags, Safari snorkel, Maggiolina Grand Tour 360 Carbon RTT.

Posted

Pics













SOLD 07/23 "Mouse":  2017 Legacy Elite II Two Beds, Hull Number 218, See my HOW TO threads:

Tow Vehicle: 2013 Land Cruiser 200, 32” LT tires, airbags, Safari snorkel, Maggiolina Grand Tour 360 Carbon RTT.

Posted

Pics

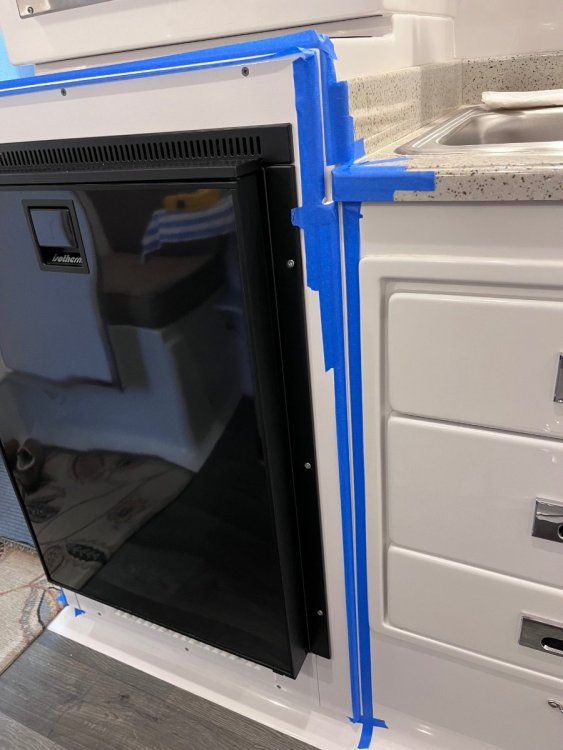

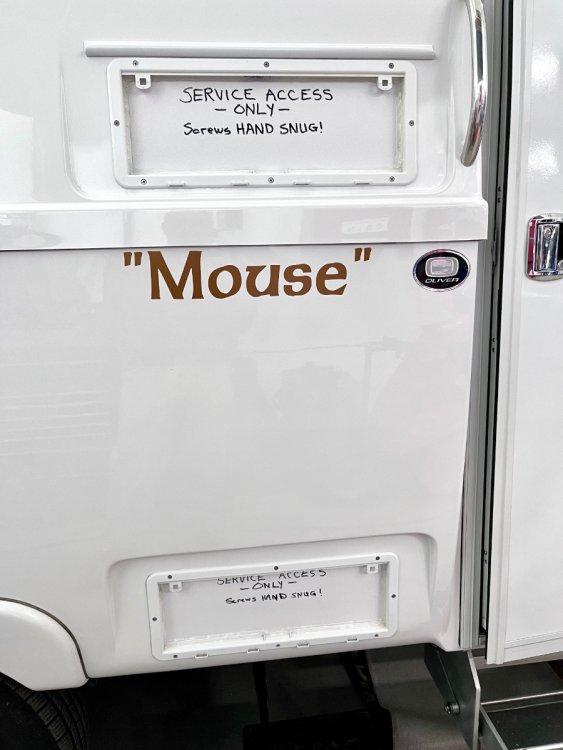

The two vertical gaps were covered with 3M white electrical tape, and the screw heads painted by hand with Testors model enamel.
