Exterior Dimension Sketch


Galway Girl
 Share

Recommended Posts

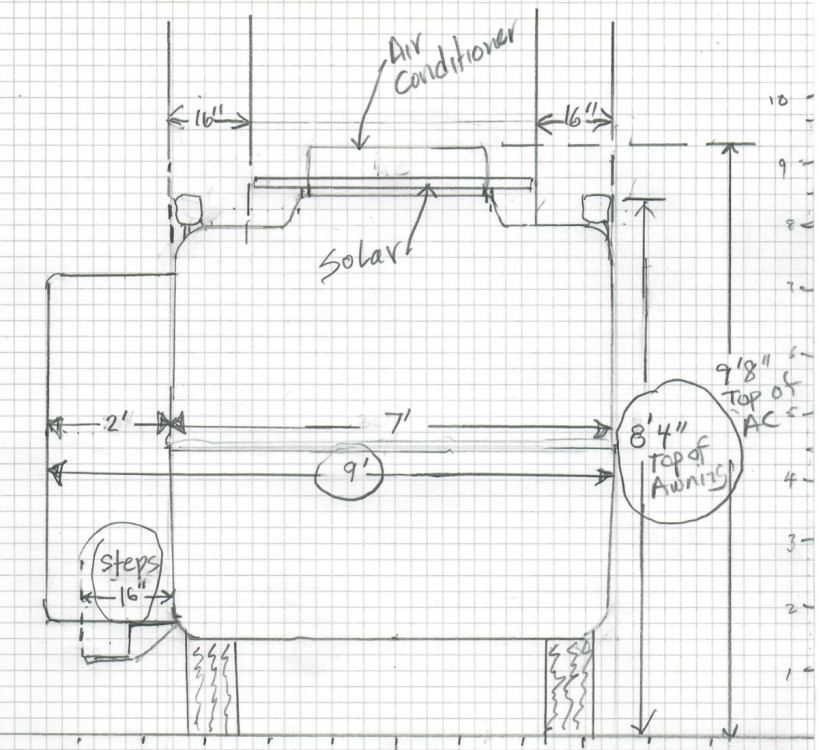

We showed our trailer last week and the party wanted some quick measurements after the visit to make sure the EII would fit beside his garage.

What he asked for prompted me to do this extremely rough sketch for him...and I thought dropping it here might be useful.

It looks at the EII from the FRONTAL view, with the door and steps open.

537330401_ScreenShot2021-04-13at3_59_44PM.thumb.png.2a7952e563410af12ceaad2b4bb99993.png

Text that went along with the sketch:



Here are the measurements you asked for and a bit more on the front view sketch with Steps and Door Open.
The drawing is at a scale of 3” per square, or 4 squares / 1 foot.
Height: (To see if it will fit under your overhang area.)
Height from Top of Awning to Ground - 8’ 4” (102”)
Height to Top of Solar Panels - 9’ 1”
Height to Top of AC - 9’ 8”

Width: (To see if it will fit between the house and the hedgerow.)
Trailer Width Door Closed - 7'
Trailer Width with Door Open - 9’  (Door sticks out 24” from belly band.)
Steps - Stick out 16” from trailer when fully open).
Solar Panels are 16” from edges of trailer on either side.

Hope that helps you plan your parking spot.





If anyone has an actual 2d drawing of the Oliver from Side , Front and Top Down profile (which is the floor plan I guess) it would be nice to have.
