Cort

Agreed!

Thanks Ray - good to hear from you. Left you a message. (My phone is 202 341 7536). I haven't started to work on it yet. Probably tomorrow I will try to get the old spring off and take it to the shop to get some new ones. Whether or not we meet up, happy travels to you and Nancy and the dogs. (I have two new ones :))

Yes, that's what I'm planning to do - replace the two broken springs and get back on the road - and at some point upgrade.

Whoa! Over a hundred owners have upgraded....Well, I was surprised to see these small springs underneath this big trailer. They did make it for 6 years and apparently about 20,000 miles (past owner) but it's no fun getting stuck like this. I noticed when I changed the punctured tire that it was closer than usual to the fiberglass. That should have been a clue to look further but I was clueless. If I hadn't found the broken spring on the left I never would have checked the spring on the right rear. I actually didn't check it to see if it was broken or not - I wanted to see what the spring was supposed to look like. Lo and behold, it was broken, and the shock was rubbing against the tire. A big lesson for me. I replaced the shocks a couple of months ago - I NEVER thought to look at the springs. Another learning experience 🙂

The heavier duty the better...:)

Thanks Mountain Man, I will be in touch 🙂 It looks like ALCANS are in my future.

I love it! I used to camp in Prescott when I just had the van - not sure where to go with the Oliver 🙂

That trailer was rocking and rolling -but I was going VERY slow...

Thanks for the instructions. I actually carry all of that with me - I didn't envision a day long job though - darn!

Thanks once again. I am offroad basically all the time...

Ironically, the turnoff had the word 'rocky' in it (lol). It's one of the last exits before you head down the mountain. I've camped a lot in the Flagstaff area, and while there are many good spots, the southern end of the Coconino National Forest can be quite rocky and lumpy. That said, the reason I went so far on this road is that it was late, and because the two dogs I have roam a lot I have to get as far away from the highway as possible - so I just gritted my teeth and get going. Otherwise, I would have turned around, and I think most people with an Oliver would. I haven't had any problems with rocky roads N of Flagstaff yet. Currently I'm camping about 30 minutes north of Flagstaff off of FR 245, and the roads up here are much better, it's much cooler, and I can get well away from a major road. It's also less buggy. I miss the oaks down south but surprisingly there are aspens in this area. I was in Hart Prairie area across the way a spectacular area - nice dirt roads - but it was just closed off because of fire danger until they get consistent monsoon rains. I'll definitely be back there at some point.

Thanks! I called Oliver and while they gave me specifications Spring capacity 1750 lbs, axle capacity 3500 lbs; bronze bushing 9/16th inner diameter; 11/16th outer diameter; length from center of spring eye to center of spring eye (unloaded): 25-1/8"; spring width - 1 3/4"; leaf thickness: 5/16th; number of leaves - 4 They could not provide a brand or part number - so SW4B is a great help. Amazon has some but will not deliver. I will check out trailer shops.

Thanks for the tip. I was surprised at how thin those springs were!

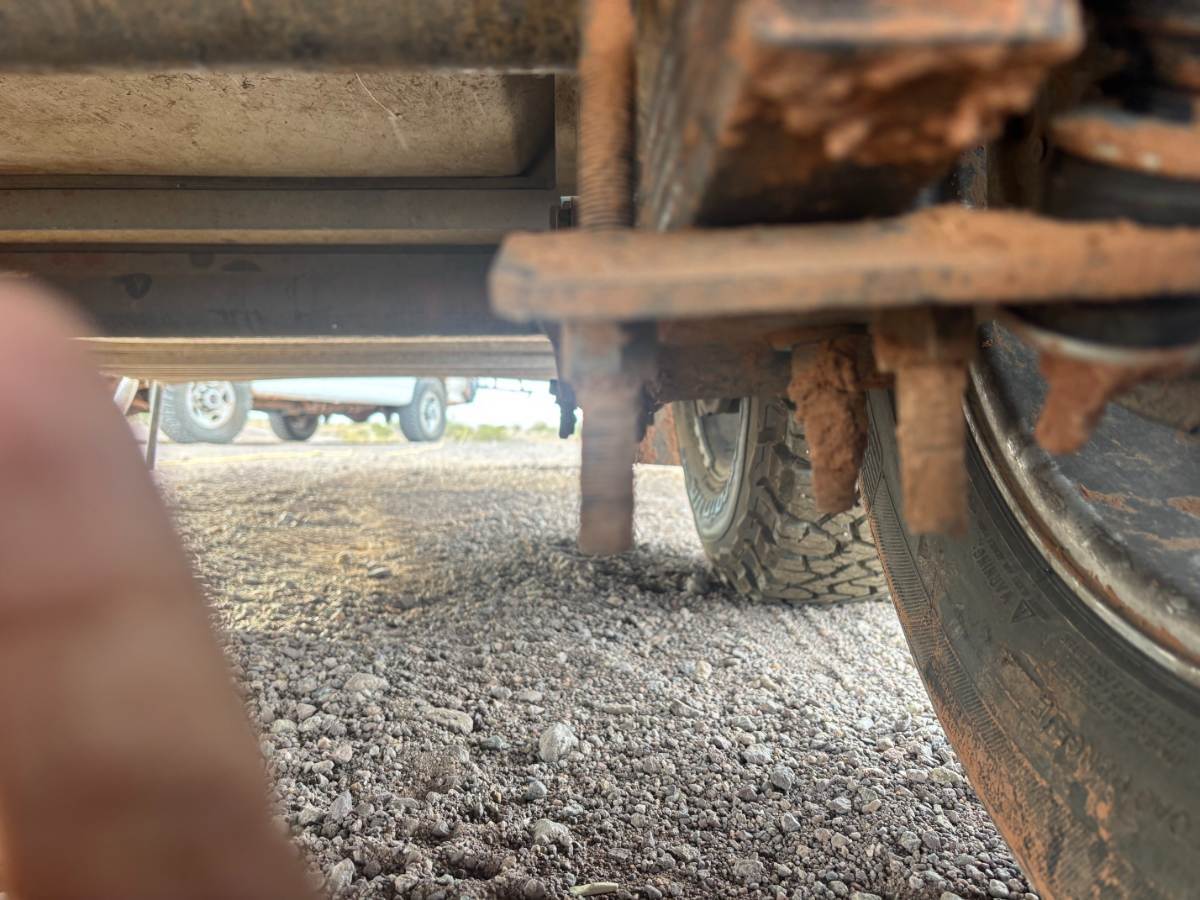

It started yesterday morning after a trip on a very rocky road south of Flagstaff that I swore I would never go on again. The first sign of trouble was a tire on the back left rear that was punctured and its side wall, apparently by rocks. I replaced the tire - but then the in late afternoon well on a dirt road in the mountains, I heard a rubbing sound then found that the left back rear tire was rubbing against the tire in front of it. I removed the tire to find a broken leaf spring and shock. then I looked on the other side to find the leaf spring and shock broken there as well. The shock was actually rubbing against the tire. it seems like I have three options. (1) Try to get a tow truck in here and tow the trailer to a shop. If anyone knows of a good shop, that would be helpful if I do this. (2) lash the axle to the frame and try to get the trailer to the paved Road maybe a mile away and get it towed from there and save some money. (3) Try to fix it here myself. From looking at the Internet, it appears that these repairs are not too difficult - but I’ve never done that before. One question I have is whether other things were damaged and therefore I couldn’t do it properly. Don’t know how to tell that.

This person replaced his Monroe's with Bulldogs.
