Ty J

Thats my Cell phone booster. I can try to penetrate the gasket if I can find some capture device for the water. Thanks!

Wow I did take picture of Serial and specs. Looking through my pics. R32 Softstart was recommended by Tosot support

Tosot A/C installed this winter just finished also. Looks similiar to Greer. Very similiar to Atmos. Caught amazon at weak moment Prime day (900.00) and just finished install. Pretty simple if you have a good back mine is not had most of my friends help get a/c on roof with painters scafolding. Has great reviews on dehumidifying. Not needed up here in mt but maybe able to retire someday and head south. Picture below of unit on top is not mounted(FYI) Just set on top. Hardest part was leveling a/c because of factory bump. Could not modify drain lines to get them to work without ton of modifications. Here is a few pics. I installed with 100.00 dollar tosot soft start. I was told really did not need, but decided to install for running on my lithium. Heater works great. (Slow warm Heat 850watts not warm enough to test a/c quite yet. Pulling 900 watts on high but still cold up here in Montana. Great job on Atmos.

My Nova Kool has been working great have not turned off since april. First season. Only issues I have is that the door shelve braces seem flimsy. I shoe gooed the door shelf braces. Not they dont pop off. FYI. - Two cents for what its worth. GREAT JOB!

The clamps were holding glue while it dried. Did not understand your question. Clamps are off. shower door is ridgid and glued with piece that could be removed if needed. Silicon caulking and thin layer silicon glue.

Its sealed pretty well with glue inner layer and silicon outer layer. The flexing always scared me with the mirror in it. Love newer design on new models.Sorry about bad luck on yours. Thats terrible.

I was tired of the Shower door flexing and decided to try little upgrade. Cut out door from 4 x 8 FRP plastic sheeting. Picked up damaged piece from Lowes and cut out. It has made the door more ridgid and solid. Used Cauling on edges and glue on innter. Was afraid to drill anything. Seems very solid for now. Only issues are my skills are lacking on cutting and saw did get away from me on the bottom not quite a perfect line. Love how the new doors are a solid piece on newer models of olivers.

I experienced dropouts on my first install. Measured resistance across cheap fuses in system and found they had high resistance causing heat and cutout also. Awesome install! Run my a/c last week on batteries, working well. 85 degrees out and can get through complete day on my 400 ah battleborn batteries and my victron. Great work!

I am using this setup to charge my 4 x Battleborn batteries. The Main unit is under my bed and 2 x 2000 watt are under the garage. I drilled hole so they sit perfectly in dead corner of the garage. and main unit sits under my bed. Ill have to crawl and get pictures. FYI you could charge your main batteries with your goal zero. With 97 percent efficiency on the new dc to dc charger you will not lose much !

Beutiful Install, Im Jealous you have double the power with my Battleborns. I love the Victron in last two rigs I had , power assist makes all difference in world, I never blow a basic breaker on anywhere I plug into. The only issues I did notice is the victron when charging or running and getting hot vibrates and is noisy against the wall. I placed a piece of bubble foil behind the victron on my install for sound dampening and should have painted the surface with Lizard skin or some sound dampening material. How noisy is your unit when running? Just curious Thanks Ty I have ordered the new victron 12v to 12volt charger to charge my Battleborn batteries as the efficiency is 95 percent or more on the unit. I am going to charge those batteries with a Pecron all in one unit with two 300 packs attached. I like your install with bigger batteries and watch a lot of Will Prowse videos also. GREAT JOB!!!!!!!!

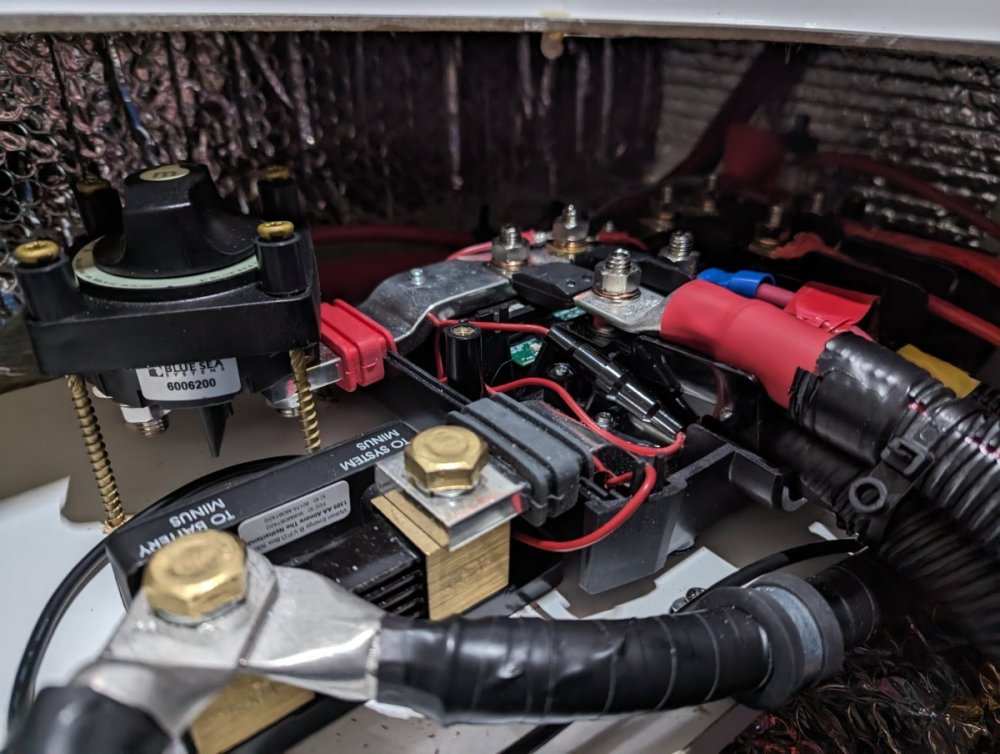

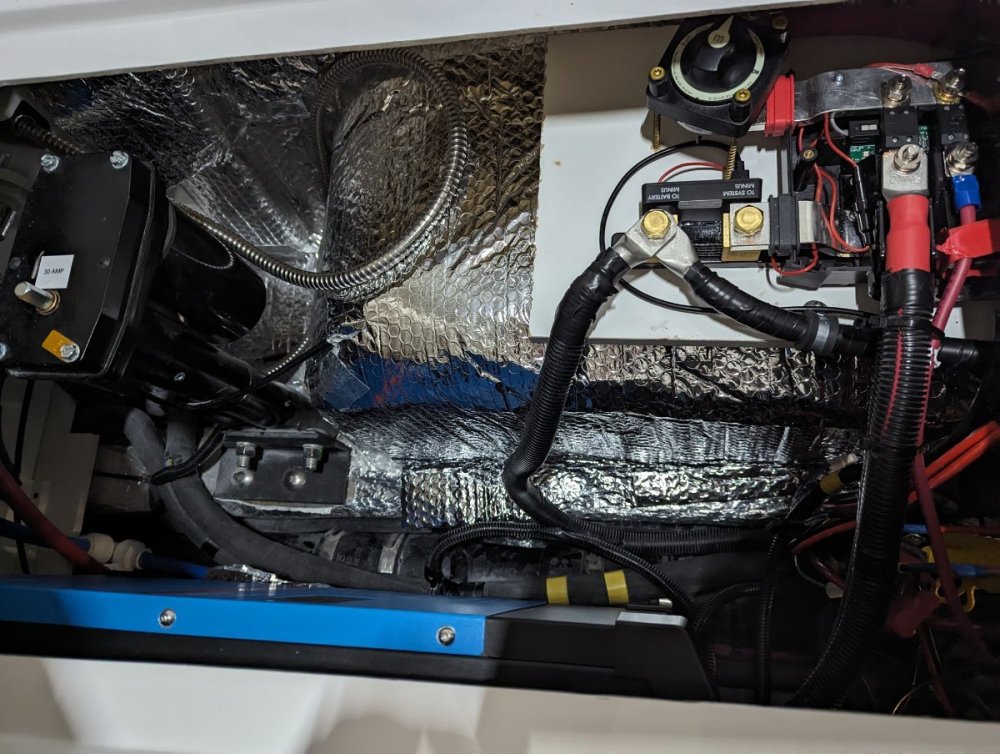

I my xantrex had dc charger built in. I rewired my total dc side though did not like wiring from factory. You should be able to remove the dc xantrex charger. Yours is different layout would have to follow your wires. Never touched ac side at all except hooked up proper breaker to proper spot. AC on fridge and ac on air conditioning were wired backwards from factory. Found that out when tried running AC off my batteries alone. Rewired dc side with victron shunt and lynx distribution on fender well. Very tight

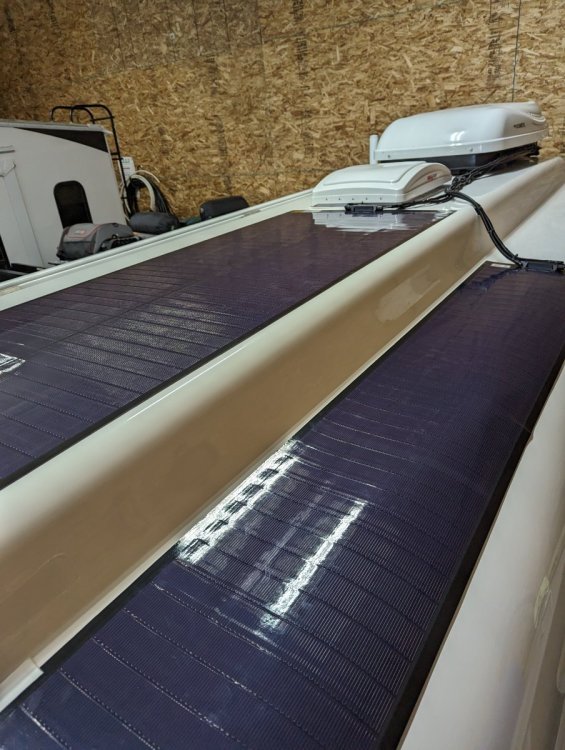

Well. They won't be easy to remove. Time will tell on these. Here's 300 watts. I taped all corners after these pictures with light eternabond.

Just for Giggles , do you have another water pump and accumulator you could switch onto the system. I have a water issue in one of my campers, changed out both of them and situation seemed to be resolved. Farthest sinks from pump were low pressure. The pump was just weak? I have even had new ones weak off the get go.

Looks great. Excellent Job! Do you know of the amount of watts its drawing? It has to add a little more current draw to the system?

Thanks For posting this mod! Finished mine Today
