Victron Smart Shunt - alternative to the BMV-712


Overland

Recommended Posts

3 hours ago, Wayfinder said:

except I do not see any DC loads on monitor.

Do you have other grounds connected to your batteries? If so disconnect them from your batteries and connect them to source side of the SmartShunt. Between the shunt and batteries should only be the single 4/0 battery cable.

In fact, I see a 6 AWG Yellow wire, from the ground/neutral bus heading to the rear of your trailer. This is likely connected to the batteries ground. ALL trailer grounds must go through the SmartShunt. The way it looks as wired, your SmartShunt will only monitor DC current used by the inverter, only when the inverter is running.

Edited by jd1923
  • Like 1

Chris & John in Prescott, AZ | 2016 EII #113 | '01 Ram 2500 Cummins!

Link to comment
Share on other sites

travel trailer units for sale
Find Oliver Travel Trailers for Sale
New Travel Trailers for Sale
16 hours ago, jd1923 said:

Do you have other grounds connected to your batteries? If so disconnect them from your batteries and connect them to source side of the SmartShunt. Between the shunt and batteries should only be the single 4/0 battery cable.

In fact, I see a 6 AWG Yellow wire, from the ground/neutral bus heading to the rear of your trailer. This is likely connected to the batteries ground. ALL trailer grounds must go through the SmartShunt. The way it looks as wired, your SmartShunt will only monitor DC current used by the inverter, only when the inverter is running.

Thanks JD!  That makes good sense to me now.  I do have at least two negs going to the batteries directly. And everything you said about the 6 AWG yellow wire is correct.  I tried to note that in the overlayed pic.  I'll see what I can do about moving those wires.

  • Like 1

Chris
2016 Legacy Elite II  o--o  Hull #110 o--o  Wayfinder  o--o  Twin Bed  o--o  2020 RAM 1500 Limited 5.7L
Augusta, Georgia

Link to comment
Share on other sites

Chris,

On our LEII, 2019, there was a yellow ground wire from the negative post on one of the 6V batteries that ran back to a bus bar that was grounded to the frame.  I discontinued this yellow wire in favor of an additional bus bar that I connected  to the Oliver ground bus bar to allow grounding of the inverter and the shunt.  This means that our batteries are grounded by the 4/0 inverter negative wire that runs from the new bus bar to the battery negative post on the first 6V battery.

  • Like 2

David Caswell and Paula Saltmarsh

Hull 509 "The Swallow"




Link to comment
Share on other sites

  • Moderator+
29 minutes ago, GraniteStaters said:

Chris,

On our LEII, 2019, there was a yellow ground wire from the negative post on one of the 6V batteries that ran back to a bus bar that was grounded to the frame.  I discontinued this yellow wire in favor of an additional bus bar that I connected  to the Oliver ground bus bar to allow grounding of the inverter and the shunt.  This means that our batteries are grounded by the 4/0 inverter negative wire that runs from the new bus bar to the battery negative post on the first 6V battery.

I'm not sure I follow all that but the negative wire coming from the battery should go to the shunt before everything else. Then you can continue on to the buss bar from the other side of the shunt. ALL negative wires should be connected AFTER the shunt or else you won't be measuring all current flowing into and out of the battery bank.

Edited by ScubaRx
  • Like 1

Steve, Tali and our dog Rocky plus our beloved dogs Storm, Lucy, Maggie and Reacher (all waiting at the Rainbow Bridge)

2008 Legacy Elite I - Outlaw Oliver, Hull #026 | 2014 Legacy Elite II - Outlaw Oliver, Hull #050 | 2022 Silverado High Country 3500HD SRW Diesel 4x4








States Visited Tali and Steve 08-23-2021-H.jpg

States Visited Tali and Steve 08-23-2021-I.jpg

Link to comment
Share on other sites

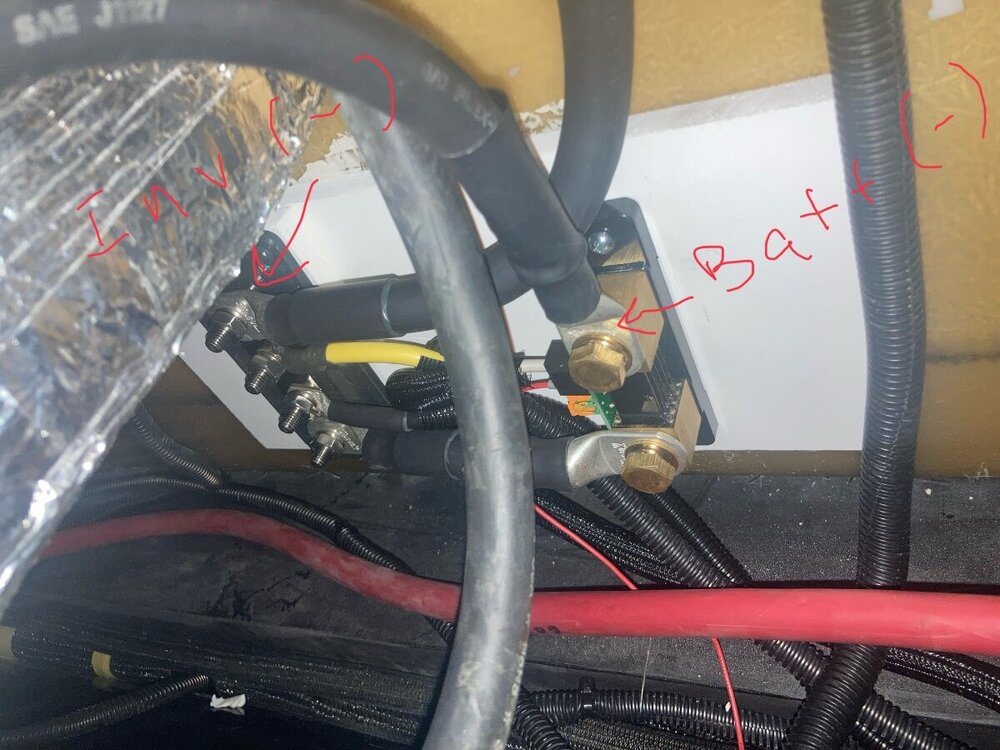

@Wayfinder here is a pic of my shunt and bus bar install. Sorry for crude labeling. On the road using my iPad. The shunt lugs include the inverter negative, batt ground, and solar negative and a 4/0 jumper.


  • Thanks 1
  • Like 1

Derek and Deana | 2019 LE II, Hull #484 | 2023 F150 EcoBoost | SE Louisiana
