MaxxFan Exhaust Filter


mossemi

Recommended Posts

  • Moderators

A few years ago, topgun2 created a filter for his MaxxFan that I really liked, but the frame material he used was no longer available.
Although this is my version below, it is similar to his.


So I kept it in the back of my mind and often looked at different materials to create my own.  I tried some vinyl channel that was used in shower glass installations, but it was too flexible.  My next version was metal channel that I am unsure of it’s purpose, it worked pretty well, but I kept cutting my hands on the mitered corners.  Then I found some plastic or PVC channel at Lowe’s while shopping for PVC lumber and it worked pretty well.

This is the frame material from Lowe’s.

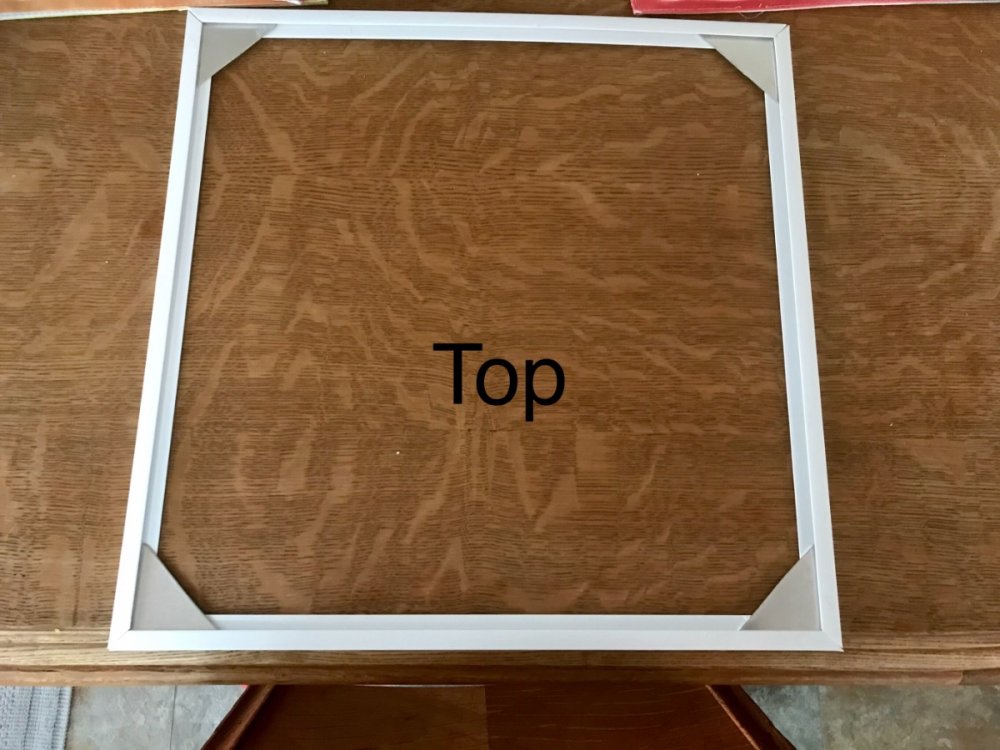

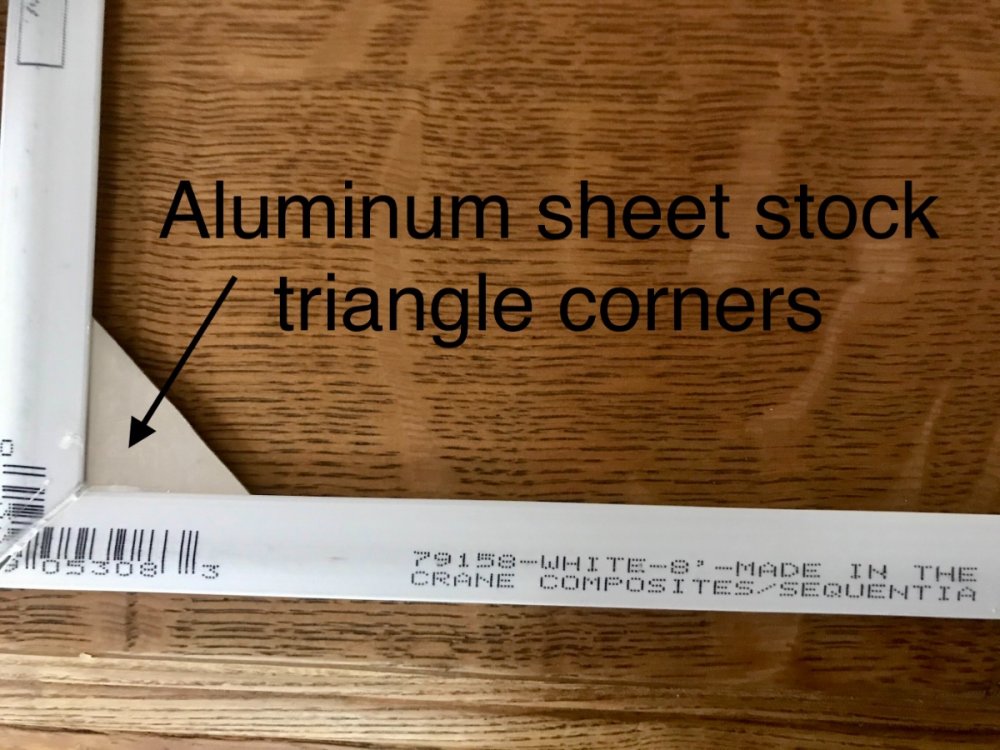

I removed the round screen filter and stored it somewhere I might be able to find or maybe not.  I measured the fan frame and cut the channel to size.  Then I cut some sheet aluminum into triangles and glued up the frame using the triangles for corner supports.

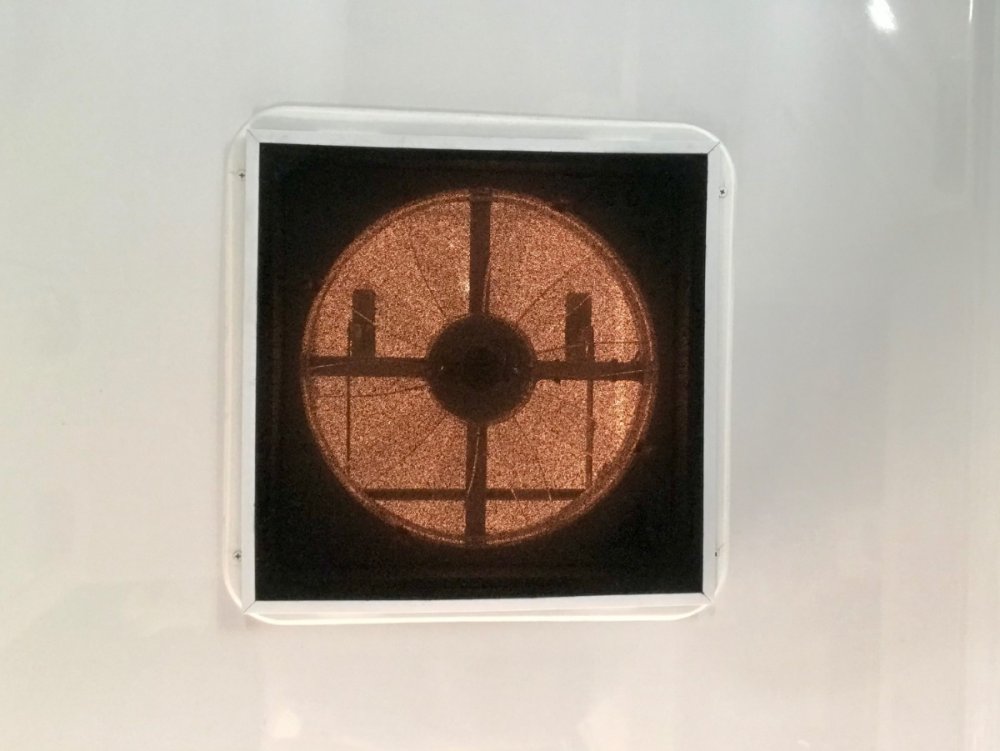

Then the filter material was cut to size and inserted into the slot and then Velcro Command picture hanging strips were used to hold the filter frame to the MaxxFan frame.  This resulted in gaps between the frames which I filled with leftover filter material.






The result is a removable filter that can be washed and reused and the fan blades require less cleaning.

He recently saw my version and asked me to post it for you to see it and improve upon for your own needs.

Mossey
