How to Remove 2017 Dometic Penguin II Interior Cover

[Bobfirst]

To remove the interior a/c cover do you remove the red or green screws or both ? And what type tool is needed to remove these screws? Thank you , Bobby

Edited January 20, 2021 by Bobfirst

[mossemi]

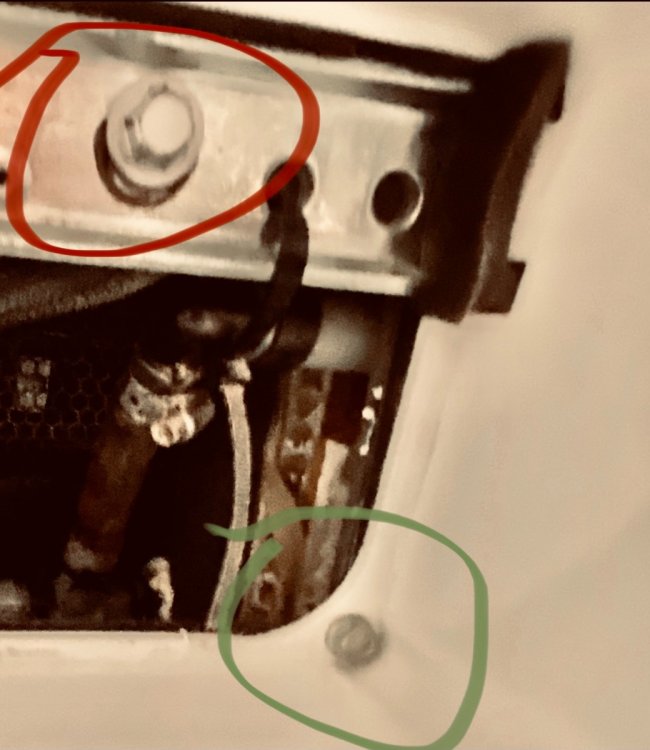

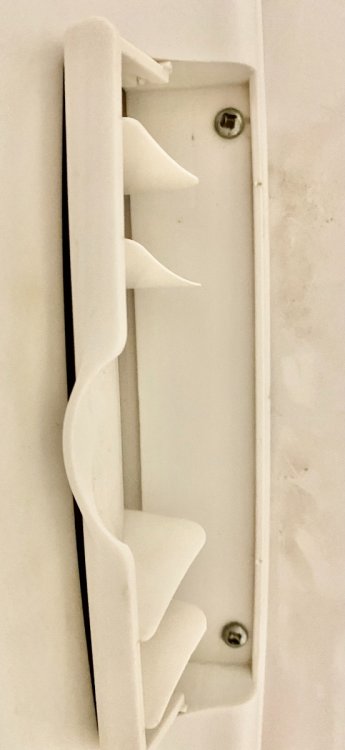

I know the bolt in the red circle holds down the roof unit.  I think, because I don’t remember, the screw in the green circle holds the control portion of the inside cover in place.  To remove 90% of the inside cover, open the curb and street side vents completely and 2 screws will be visible in each opening.  Now that you know where to look, open the front and rear vents completely and look on the hinge side of the opening and you should see 2 screws in each opening, but they are much harder to see.  Use a long #2 Phillips screwdriver with a round barrel because you will be rubbing on plastic and a square barrel will hinder your efforts.

Mossey

Edited January 22, 2021 by mossemi

[Bobfirst]

16 hours ago, mossemi said:

I know the bolt in the red circle holds down the roof unit.  I think, because I don’t remember, the screw in the green circle holds the control portion of the inside cover in place.  To remove 90% of the inside cover off, open the curb and street side vents completely and 2 screws will be visible in each opening.  Now that you know where to look, open the front and rear vents completely and look on the hinge side of the opening and you should see 2 screws in each opening, but they are much harder to see.  Use a long #2 Phillips screwdriver with a round barrel because you will be rubbing on plastic and a square barrel will hinder your efforts.

Mossey

Mossey you stopped me from making a huge mistake! Will tackle the front /rear vents screws . Thank you

[Townesw]

I have the 3314850.000 Air Distribution Box on Hull 313.

See if this document for installation of the Dometic Air Distribution Box 3314850.000 answers your questions.

https://www.intechtrailers.com/images/info/PDF/Dometic/schematics-ac-diagrams.pdf



Edited January 21, 2021 by Townesw

[Bobfirst]

On 1/20/2021 at 6:40 PM, mossemi said:

I know the bolt in the red circle holds down the roof unit.  I think, because I don’t remember, the screw in the green circle holds the control portion of the inside cover in place.  To remove 90% of the inside cover, open the curb and street side vents completely and 2 screws will be visible in each opening.  Now that you know where to look, open the front and rear vents completely and look on the hinge side of the opening and you should see 2 screws in each opening, but they are much harder to see.  Use a long #2 Phillips screwdriver with a round barrel because you will be rubbing on plastic and a square barrel will hinder your efforts.

Mossey

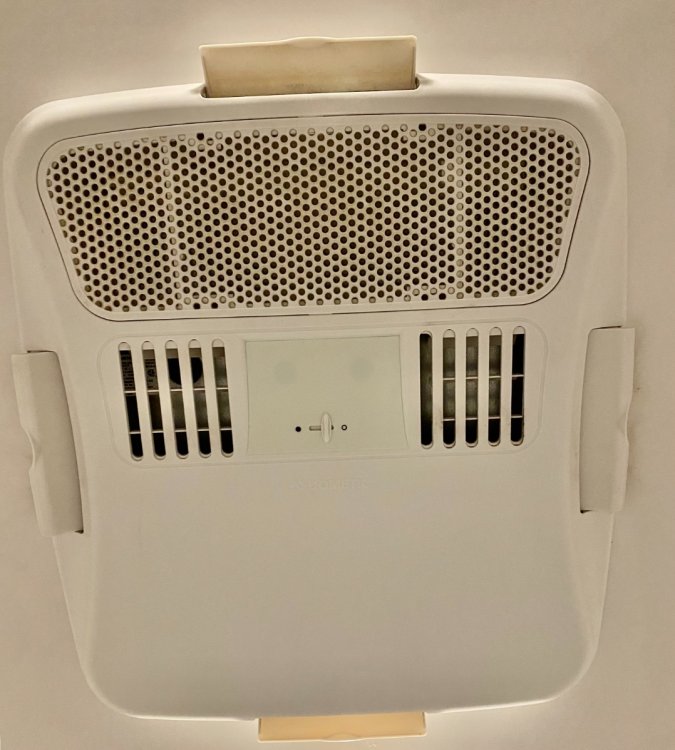

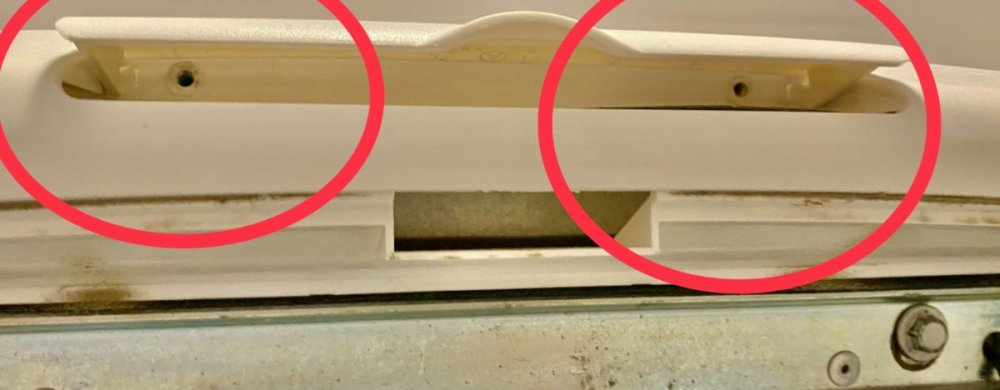

Moses I removed 2 Philip screws from the front , rear & side vents but I still can’t pull down the inside white cover . What am I doing wrong ?


[mossemi]

If you have the 8 screws out from the vents, then I think the 2 screws inside the filter area do need to be removed.  You circled 1 of them in green.

Mossey

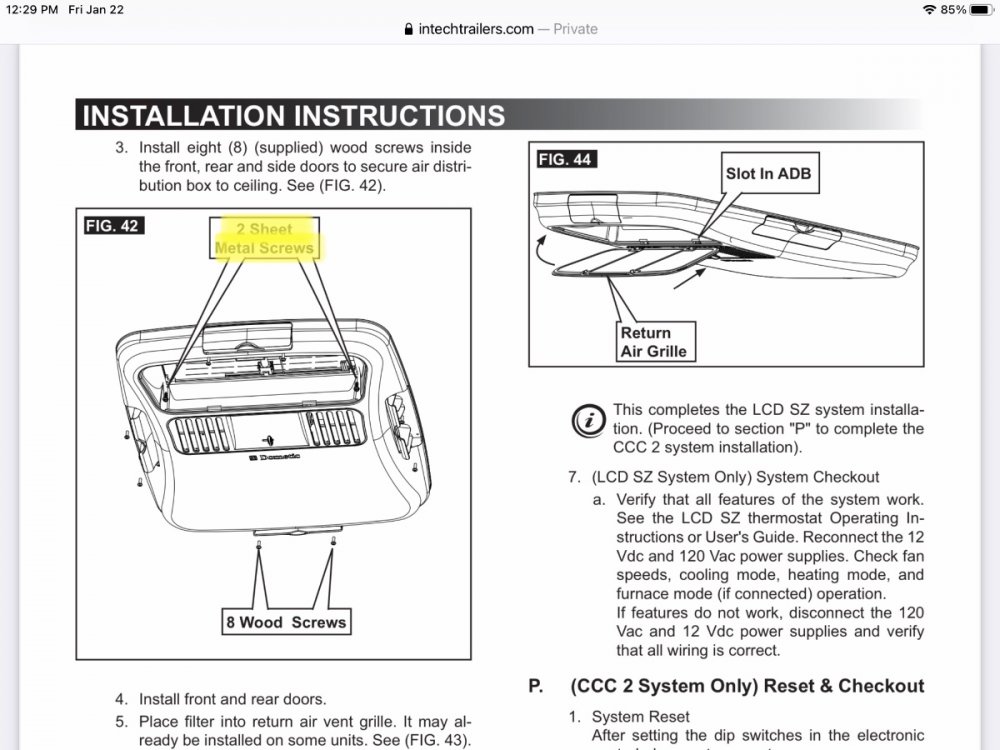

This picture is from the link Townesw provided.

Edited January 22, 2021 by mossemi

[Bobfirst]

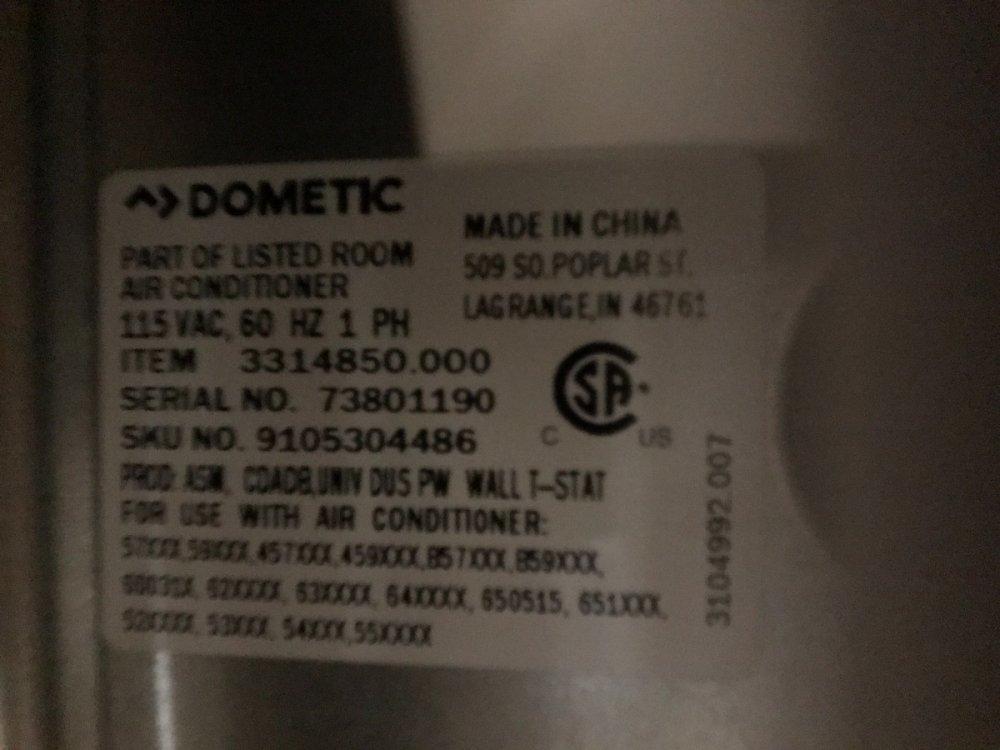

Finally got the cover off . Now know the model & serial # that is needed to move forward with the heat strip blowing the furnace fuse

[Overland]

55 minutes ago, Bobfirst said:

Finally got the cover off . Now know the model & serial # that is needed to move forward with the heat strip blowing the furnace fuse

I don’t know if that was your only reason for wanting the cover off, but you should be able to see that label by taking off just the return air grill and filter.

Edited January 24, 2021 by Overland
