• SETTING A NEW STANDARD IN QUALITY TRAVEL TRAILERS

Starting at $53,900

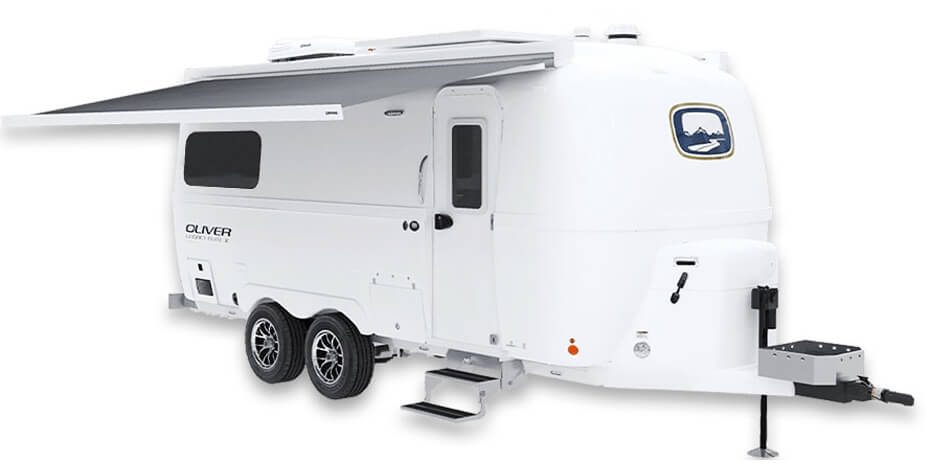

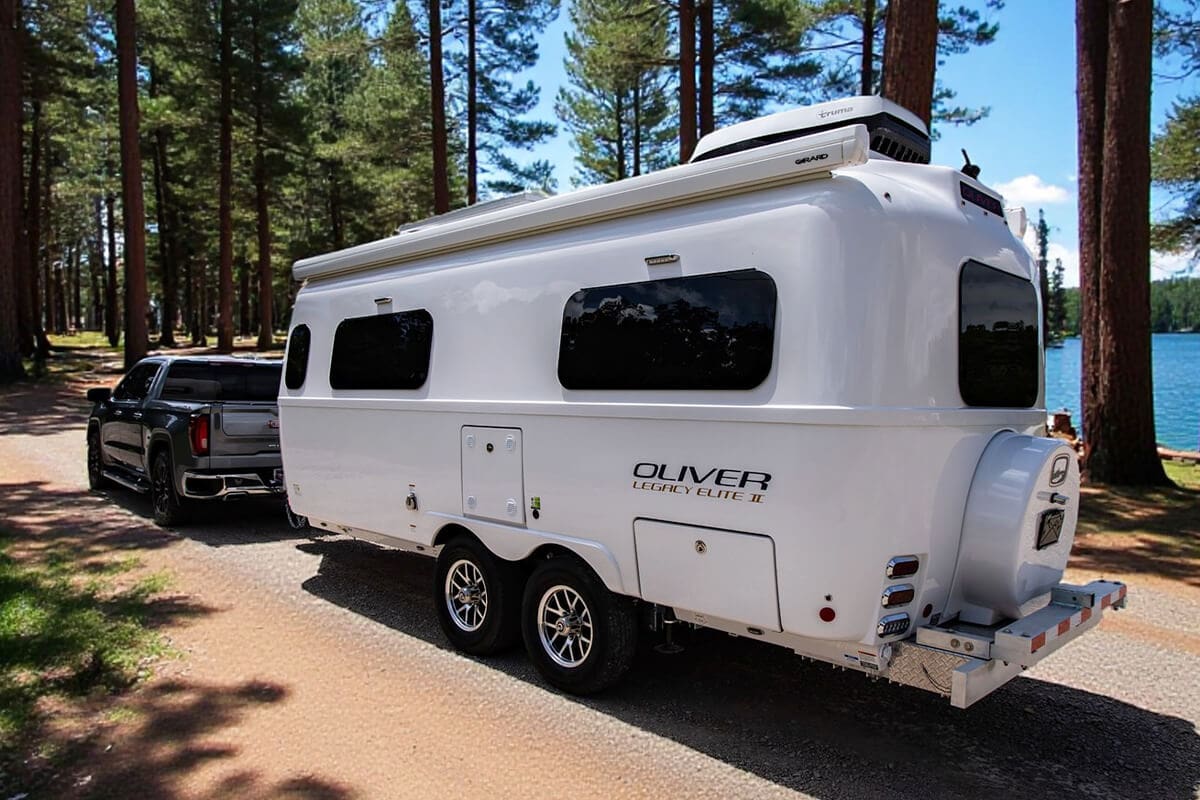

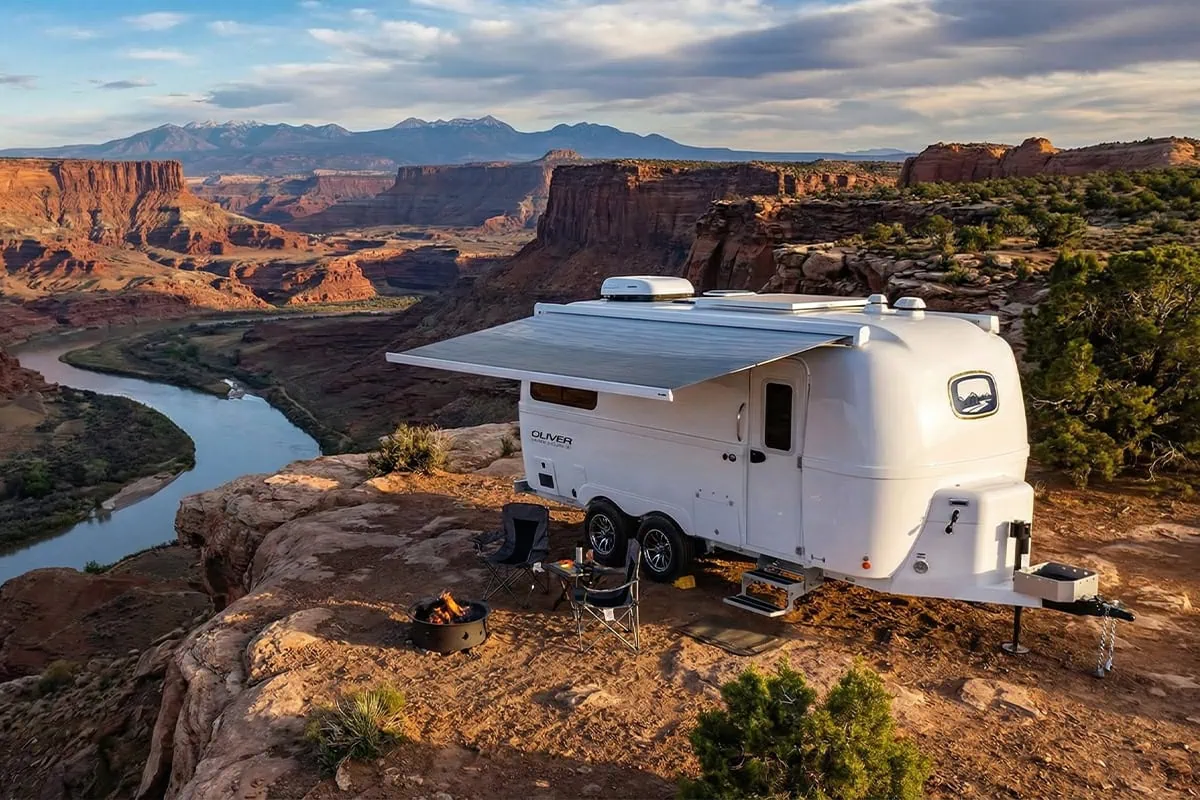

OLIVER LEGACY ELITE II

TRAVEL TRAILER

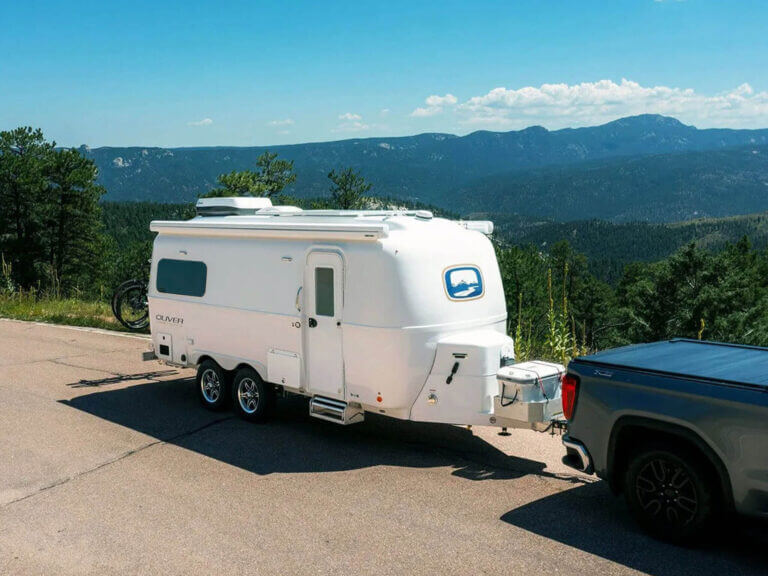

The Legacy Elite II (23' 6``) is our tandem axle double-hulled fiberglass travel trailer!

New Standard Features on 2018 Models
Adding Exterior Port to allow for portable (plug &play) solar – Must have factory solar package installed to use
Adding Water accumulator bladder tank, helps add constant water pressure at faucets (helps with sputtering water flow)
Adding 110V receptacle in closet
Adding dual exterior coax for portable cable/satellite connections
Mirror cabinet doors on center rear cabin and bathroom
2017 Options that are 2018 Standard Features

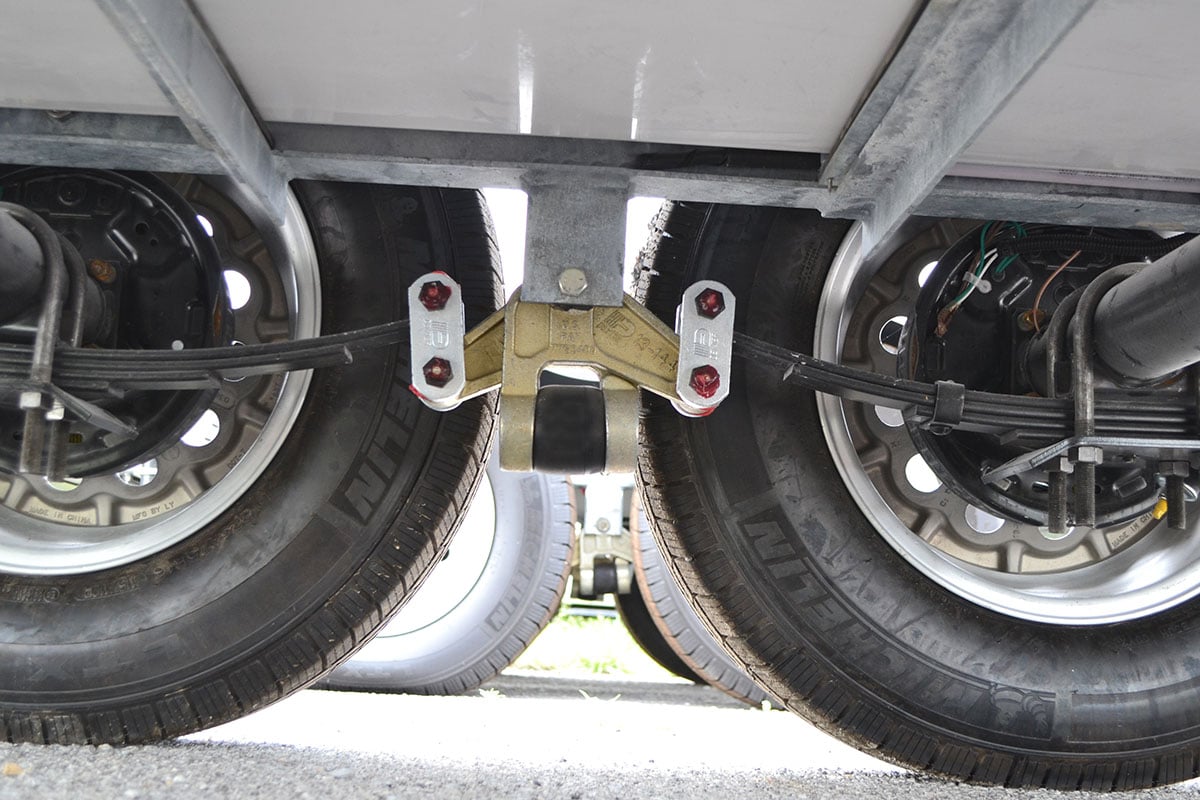

Dexter E-Z Flex
Progressive Industries EMS-HW30C Surge Protector
Dual Charging Station (One 12V socket & Two 5V USB)
Additional Outlets (Up to 2 Additional)
Atwood Furnace (replaces Suburban furnace)
LP Access Deck Port
Reading Light Package
Flip down TV Mount (only on the Legacy Elite II)
STANDARD FEATURESFLOOR PLANSPHOTO GALLERYEXTERIOR OPTIONSINTERIOR OPTIONSUPGRADES & ADD-ONSSPECIFICATIONSINQUIRE ABOUT PURCHASING THIS MODEL

ELITELY EQUIPPED

STANDARD FEATURES

SHELL

  • Full Custom Molded Interior and Exterior Insulated Shells
  • Custom Molded Fiberglass LP Cover
  • Custom Molded Fiberglass Spare Tire Cover
  • Enclosed Plumbing, Holding Tanks and Drain Pipes with Heat to Prevent Freezing
  • 32.5 Gal. Large Capacity Fresh Water Tank
  • 35.5 Gal. Large Capacity Grey Water Tank
  • 18.5 Gal. Large Capacity Black Water Tank with pressure flushing system for the Tank

CHASSIS

  • Quad Shocks on dual Dexter leaf spring axles with “Nev-R-Adjust” 10″ electric brakes for exceptional control and braking
  • Spare Tire with Aluminum Wheel Rim
  • 2” x 5” Box Tube Aluminum Frame
  • 7000 Lb. Cast Iron Bulldog Hitch
  • 16″ Aluminum Rims with Nitrogen filled Michelin LTX M/S2 Tires
  • Black “Rock Guard” Wheel Well Lining
  • Hide-Away Aluminum Storage Bumper with Black/Grey Water Drain attachment located inside
  • NEW Dexter E-Z Flex (2017 option)

EXTERIOR

  • (2) 20 Lb. LP Tanks
  • Fresh Water Fill Hook-Up
  • City Water Direct Hook Up
  • Fold Up Aluminum Double Entry Steps with Grip Tape
  • Custom Enclosed Slide-Out Battery Storage – Includes (2) Group 27 Deep Cycle 12V Batteries (Can hold four 6V batteries)
  • Marine Grade Shore Power Connection with 25’ cord
  • Outside 11OV GFI Protected Outlet w/ Cover
  • LED Brake Lights
  • Custom Rear High Mount Oliver Sign
  • LED Marker Lights
  • 4 High Mount Porch Lights (2 on each side)
  • Exterior Entry Handle
  • Exterior LED Ground Lighting
  • 14′ 9″ Carefree Freedom Wall Mount Awning (Handcrank)
  • Outside Wash Station

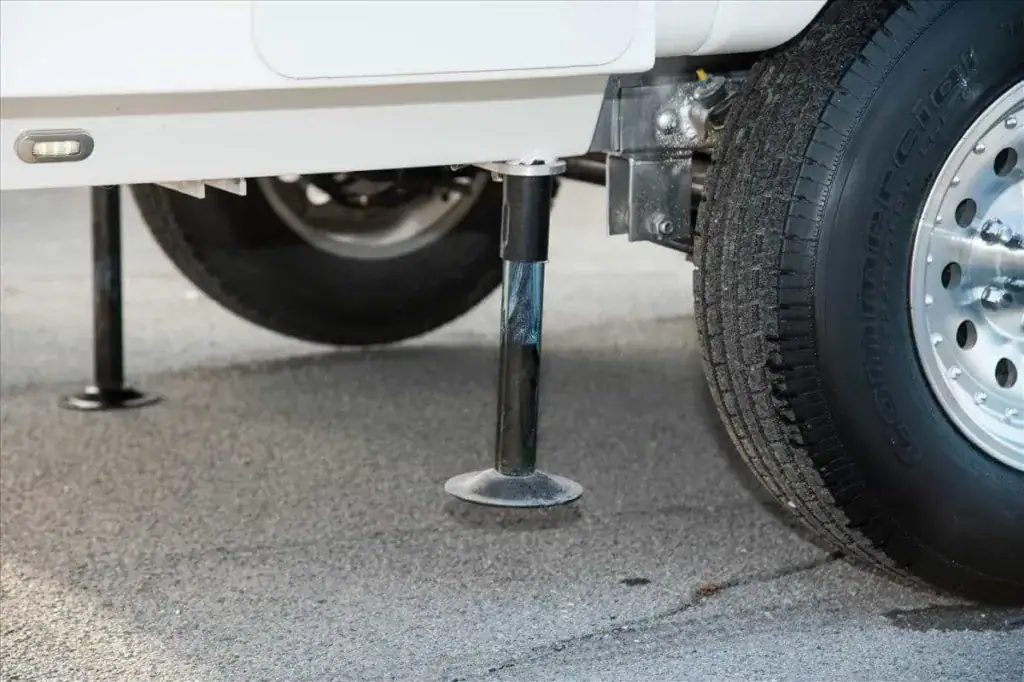

  • Three Point Power Stabilizing System
  • (4) Sliding Thermal Pane Windows with Sliding Screens
  • NEW Propane Access Port (2017 option)

SEATING/SLEEPING

  • Side Dinette (seats 2) Converts to Single Bed
  • Rear Dinette (seats 5) Converts to King Bed (on Standard Floor Plan)
  • Storage Compartments Under Seats

ELECTRIC

  • (5) 110V Outlets on GFI Protected Circuit
  • 45 AMP Charger with Charger Wizards
  • (2) Charging Stations, one over the kitchen area and one under the side dinette – each with one 12V DC marine-grade female socket & one dual USB 5V adapters
  • NEW additional 110V receptacles including one in closet
  • NEW exterior plug & play port for portable solar panels (requires factory installed solar package)

INTERIOR

  • Full Surround Over-Head Lighted Storage Compartments
  • Lighted Storage Closet
  • (EZ) Winterizing System
  • MaxxFan Deluxe Remote Control RV Ventilator System
  • 2 Way Self Igniting Hot Water Heater, DSI 6 Gal
  • Fresh Water Pump 55 PSI, 3.0 GPM x 9.0 BTU
  • Dometic Penquin 2 (13,500 BTU) A/C Unit & Wall Mount Thermostat
  • Self-Igniting LP Furnace with Central Heating
  • Monitoring System for Tanks and Batteries
  • Day/Night Window Treatments (Excludes Bathroom)
  • (15) 3″ Overhead LED Lights
  • (3) LED Courtesy Floor Lights
  • NEW mirrored upper doors on center rear cabin and bath cabinets doors
  • NEW additional 110V receptacles including one in closet
  • NEW water accumulator bladder tank that helps maintain constant water pressure at faucets
  • NEW surge protector (2017 option)
  • NEW additional 12v/5V Dual Charging Stations (2017 option)
  • NEW reading light package (2017 option)

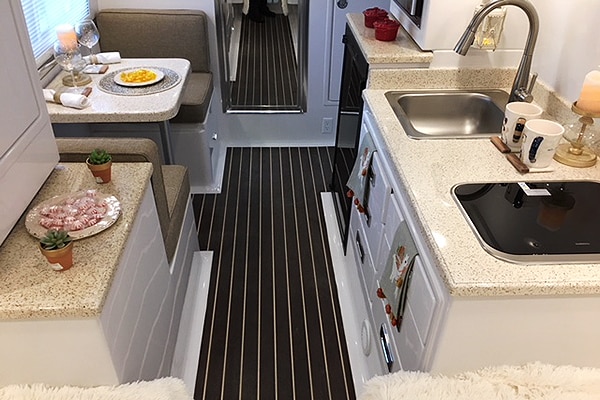

KITCHEN AREA

  • Flush Mount 2 Burner Stove
  • 3 Way Refrigerator (12V, 11OV, LP)
  • High rise swivel faucet
  • Custom Designed Storage Drawers with Dovetail Joints
  • Microwave

COMPLETE BATHROOM

  • Molded Vanity with Toiletry Storage
  • Dometic 311 toilet (low profile with porcelain bowl)
  • Exhaust Fan
  • Chrome Faucet with Pull Out Shower Wand
  • Sliding Frosted Privacy Window with Screen
  • Mirror Tinted Glass Door
  • Waterproof Toilet Paper Compartment
  • Towel Bar and Hook (Central Heat Vent Under Towel bar)
  • Overhead Storage Compartment
  • Central Heat Vent

SAFETY/FIRE PROTECTION

  • Fire Extinguisher
  • Smoke Detector with Alarm
  • Carbon Monoxide Detector with Alarm
  • LP Leak Detector with Alarm
  • Oversized Emergency Egress Window with Screen

ENTERTAINMENT SYSTEM

  • 22” Flat Screen LCD TV, Radio with AM & FM dual zone audio output, CD/DVD/MP/WMA/MP4, USB, Bluetooth & Remote control
  • (4) Custom Mounted Speakers
  • NEW dual exterior coax for portable cable or satellite connections

FLOOR PLAN

DIAGRAMS

STANDARD FLOOR PLAN

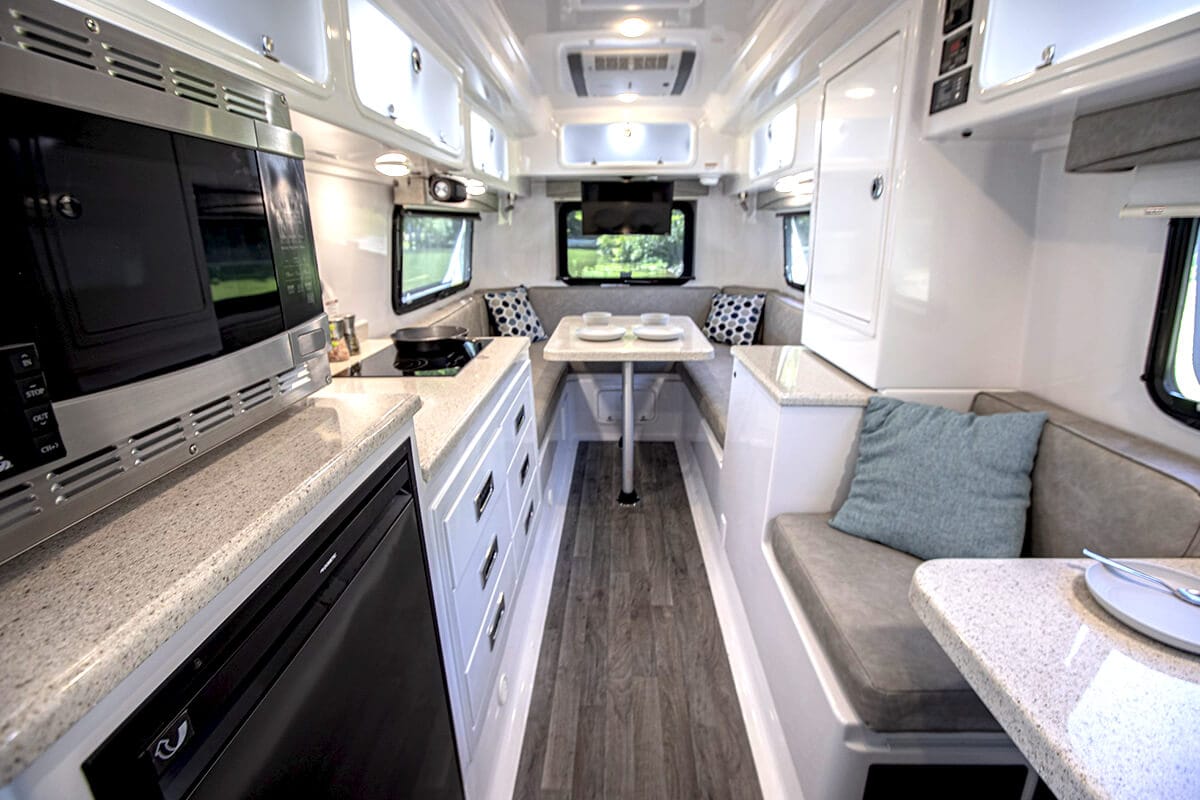

Our Legacy Elite II Standard Floor Plan comes with a large rear table area for 5 people which can be converted to a King Size Bed. This double-hulled insulated unit comes with thermal pane windows, central heat, TV/Stereo and lots of storage space to mention a few of its features. With your choice of fabrics and floor covering you can make your own personalized, one of a kind trailer.

Standard Floor Plan

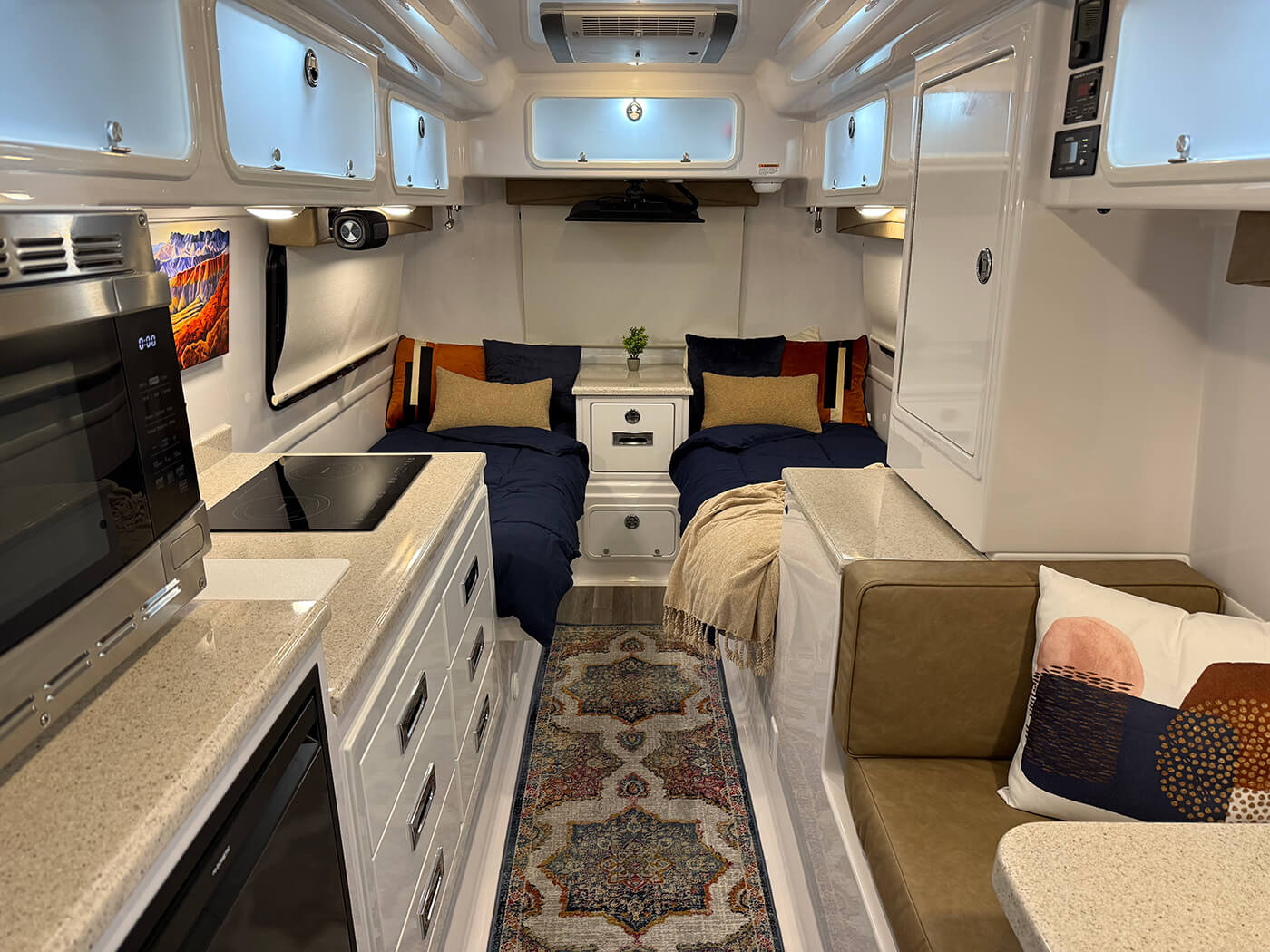

TWIN BED FLOOR PLAN

Our popular Legacy Elite II Twin Bed Floor Plan has two rear beds complete with a night stand and additional storage drawer. Complete with a black tank flush system, LED floor courtesy light, illuminated overhead storage, SeeLevel II tank monitoring system and MaxxFan Deluxe Remote Control Ventilator System to mention a few of its features.

Twin Bed Floor Plan

LEGACY ELITE II

PHOTO GALLERY

EXTERIOR

OPTIONS

When you are ready to order your new Oliver Travel Trailer, you can choose your exterior style options that include Solid and Pinstripe exterior graphics. You can choose two vinyl colors to give your Ollie it’s own unique style. The awning is available in five color choices.
travel trailer graphics color options

Graphic Vinyl Color Options

Alternative color choices may be available as an upgrade. Contact our sales office for more information.
  • sRGB: 251, 170, 0
    020 Golden yellow
  • sRGB: 254, 197, 0
    021 Yellow
  • sRGB: 111, 0, 14
    312* Burgundy
  • sRGB: 176, 0, 13
    031 Red
  • sRGB: 211, 49, 0
    047 Orange red
  • sRGB: 234, 103, 0
    036 Light orange
  • sRGB: 27, 46, 93
    050 Dark blue
  • sRGB: 0, 64, 140
    057 Traffic blue
  • sRGB: 0, 117, 187
    084* Sky blue
  • sRGB: 61, 161, 210
    056 Ice blue
  • sRGB: 0, 155, 151
    054 Turquoise
  • sRGB: 0, 82, 54
    613 Forest green
  • sRGB: 0, 122, 66
    068 Grass green
  • sRGB: 106, 167, 45
    063 Lime-tree green
  • sRGB: 67, 47, 30
    080 Brown
  • sRGB: 168, 136, 92
    081 Light brown
  • sRGB: 206, 192, 159
    082 Beige
  • sRGB: 13, 14, 17
    070 Black
  • sRGB: 75, 76, 76
    073 Dark grey
  • sRGB: 117, 125, 124
    071 Grey
  • sRGB: 191, 194, 192
    072 Light grey

Awning Color Options

Click colors below to enlarge

INTERIOR

OPTIONS

When ordering, you can customize your ``Ollie`` by choosing any combination of our standard flooring and upholstery options to match your personalized style.

Flooring Options

Upholstery Options

LEGACY ELITE II

UPGRADES & ADD-ONS

See the available Upgrades and Add-ons below for the Legacy Elite II. Features and Options are subject to change without notice.
Contact our sales office for pricing.

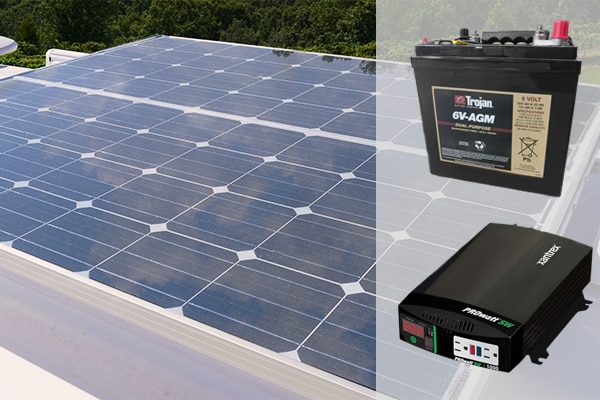

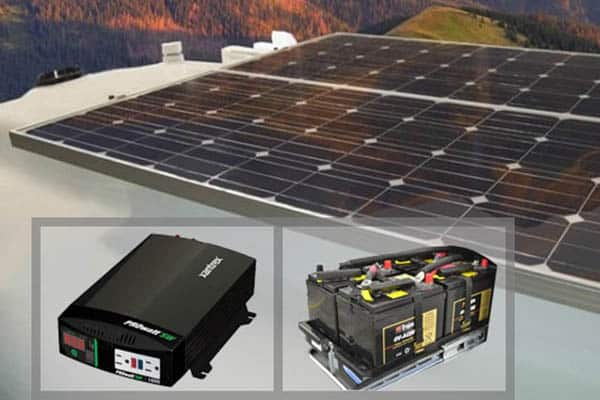

320 Watt Solar Package

Add-on
320 Watt Solar Package

Includes two 160 watt solar panels, ZAMP charge controller, 6 gauge wire harness with 30 amp circuit breaker and a disconnect switch. With the minimal electrical draw of our LED lighting and other technologies, this will allow you to use your “Ollie” off the grid and without the need of a generator. Efficiency dependent on sun exposure.

Power Inverter – Xantrex – ProWatt SW Series/2000W

Add-On
Xantrex – ProWatt SW Series/2000W

Features True Sine-wave AC output with 1800 continuous watts and high surge capability. This option includes a transfer switch to bypass the inverter when plugged in to a 110V power source.

Micro-Air EasyStart

Add-On
Micro-Air EasyStart

EasyStart™ is the best-in-class soft starter for single-phase motors operating at 115-240VAC/50-60Hz, only available from Micro-Air. With unmatched performance and compressor-protection features, it allows you to start your air conditioner on a limited power source, such as a generator, inverter or reduced utility hookup, when it otherwise would not have been possible.

WiFiRanger SkyPro Pack

Add-On
WiFiRanger SkyPro Pack

A complete RV network solution with indoor accessibility and outdoor range.  The package includes the indoor Core router and the outdoor SkyPro antenna, with the SkyPro ready to be mounted directly to a flat surface roof. The outdoor SkyPro is equipped with Flex-guardTM antennas that can bend down to 5″ clearance without doing damage to the unit, protecting against trees and other overhangs. The indoor Core provides a secure, private network for all of your wireless computers and devices.  The indoor Core router also has several LAN ports for hardwiring computers and devices. The SkyPro brings in otherwise weak WiFi from Hotspots in the area to get your entire network online. The indoor Core is dedicated to providing the secure network and also allows for USB tethering a cellular 3G/4G Aircard or cellular MiFi device.  Add an USB cellular modum to your existing wireless carrier plan, and have internet access anywhere you have cellular signal.

Winegard ROADSTAR Omni-Directional Antenna (RS-3000)

Add-On
Winegard ROADSTAR Omni-Directional Antenna

Compact amplified omni-directional antenna continuously receives VHF/UHF/FM signals from all directions without adjustment.

Winegard CARRYOUT G2+ SATELITTE TV ANTENNA Mounted or with Portable Tripod (GM-6000)

Add-On
Winegard CARRYOUT G2+ SATELITTE TV ANTENNA

The Winegard Carryout G2+ offers the ultimate in flexibility with the ability to be completely portable, roof mounted, or mounted on our rear cab, ladder, window or tri-pod mounts.

Easily switch providers between DIRECTV, DISH and BellTV!

Bike Rack Mount

Add-On

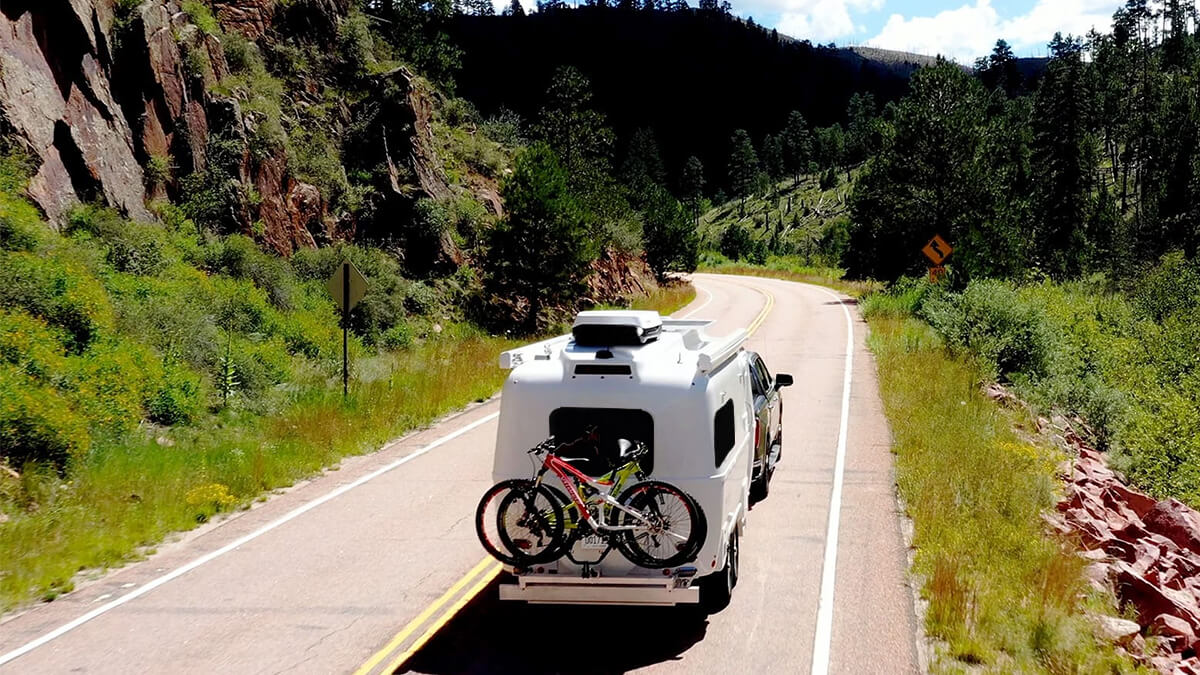

Bike Rack Mount

Our all new Bike Rack design adds space for two bikes mounted on Thule mounts.

Storage Basket

Add-on
Storage Basket

Adds a storage basket on the front, used for transporting generators or other camping accessories.

30 AMP CONVENIENCE CONNECTION

ADD-ON
30 AMP CONVENIENCE CONNECTION

Adds a male plug to the front of the trailer that allows you to quickly to connect your generator to power your travel trailer.

Additional Awning

Add-On
Additional Awning

Awning added to the street side of the trailer that adds additional shade when needed.

Available Awning Colors: Charcoal, Chocolate and Indigo.

Mirrored Upper Cabinet Doors

Upgrade
Mirrored Upper Cabinet Doors

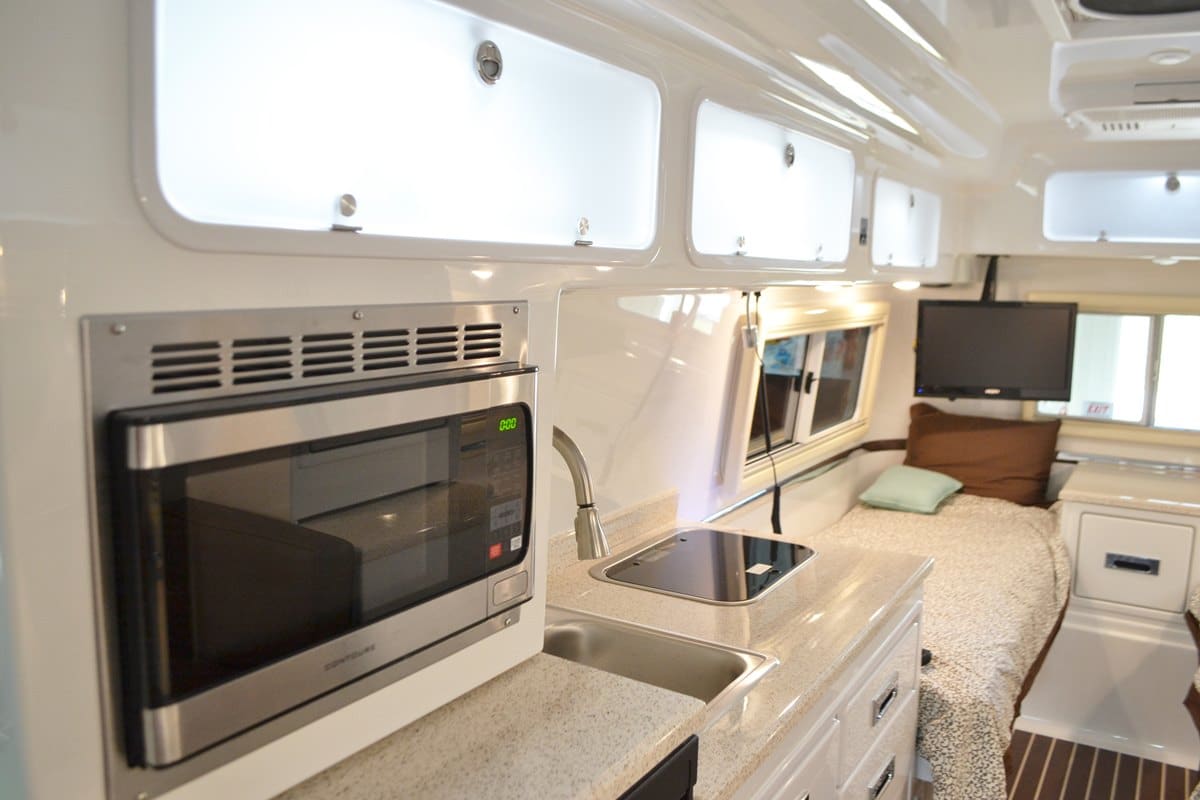

Upgrade the standard frosted (transparent) upper cabinet doors to a mirrored finish.

Also available in white and black.

Andersen “No-Sway” Hitch

Add-On
Andersen “No-Sway” Hitch

New Anti-Sway, Anti-Bounce Weight Distribution Hitch that has completely redesigned weight distribution.

Door Handle/Lock with Electronic Keypad

Upgrade
Door Handle/Lock with Electronic Keypad

Upgrade the standard door handle/lock with option to lock and unlock the door using a user friendly electric keypad.

Cabinet Under Twin Bed Nightstand

Add-On
Cabinet Under Twin Bed Nightstand

Add a Cabinet Under the nightstand. Available only on the Legacy Elite II Twin Bed Floorplan.

Auto Drain

Upgrade
Auto Drain

Adds Auto Drain to the shower.

Fiber-Granite

Countertops Upgrade
Fiber-Granite

Fiber-Granite is a luxury countertop upgrade and is custom molded from fiberglass, gel coated and then buffed to resemble granite. It will replace all available standard countertop surfaces.

Available Colors: Paradise Beach, Tahoe, Baltic and Dakota

*Standard countertop package includes black side dinette and rear dining tables, white molded fiberglass on the kitchen galley and bathroom countertop, along with wood accents under the pantry and microwave. Fiber-Granite colors online may not appear appropriately. Contact us for samples.

weBoost Drive 4G-M Cell Phone Booster

Add-On
weBoost Drive 4G-M Cell Phone Booster

The Drive 4G-M is weBoost’s most popular 4G vehicle cell phone signal booster. This booster for vehicles extends cellular signal range to ensure you get better voice and data with fewer dropped calls, improved voice quality, faster uploads and downloads. weBoost’s Drive 4G-M boosts cell signals up to 32x to enhance 4G LTE and 3G signals for everyone in the vehicle such as a car, truck, van or RV. This booster is compatible with all US and Canadian wireless networks such as Verizon, AT&T, Sprint, T-Mobile, US Cellular, Straight Talk and more.

4 Trojan T-105-Wet Cell Batteries with Hydrolink

Battery Upgrade
4 Trojan T-105-Wet Cell Batteries with Hydrolink

Four T-105, 6V Deep Cycle Batteries rated at 225AH for each set and a total of 450AH. This is an upgrade from the standard two Group 27 batteries.

Battery maintenance, particularly watering your battery, can be time-consuming, messy and, in some instances, unsafe. Trojan’s HydroLinkTM comes with an independent, nonmechanical water level indicator that is simple to read. A white indicator means that the battery needs water and a black indicator means that the battery has enough water. The HydroLinkTM indicator will not give a false reading, unlike products that utilize mechanical readers. The new durable SnakeTM tubing offers the quickest, simplest installation. The patent pending, one-piece SnakeTM tubing eliminates the need for multiple connections, resulting in fewer parts and faster filling.

4 Trojan Reliant AGM Deep Cycle Battery 6V, 217 AH T105-AGM

Battery Upgrade
4 Trojan Reliant AGM Deep Cycle Battery

Trojan’s Reliant™ Line of U.S.-made Absorbed Glass Mat (AGM) batteries feature design elements that offer a new direction in AGM technology. As the only true deep-cycle AGM battery on the market today, Reliant is engineered with an advanced technology feature set that provides maintenance-free convenience, maximum sustained performance and improved total energy output, delivering the exceptional quality and reliability Trojan batteries are known for.

Digital Wireless Back Up Camera

Add-On
Digital Wireless Back Up Camera

The Voyager WiSight™ package includes a 4.3 LCD color monitor with integrated receiver, one 12-volt accessory plug, a suction cup monitor mount, one rear color camera with integrated transmitter, stainless steel hardware and non-corrosive camera mounting bracket. This allows you to see other vehicles behind you while driving and assist you when backing up. You can add up to two cameras to your Ollie.

30LB Propane Tanks

Propane Tank Upgrade
30LB Propane Tanks

This upgrades the two standard 20 lb. tanks to larger 30 lb. tanks.

Front & Rear Propane Quick Connects

Add-On
Front & Rear Propane Quick Connects

Front and rear trailer connections used for grills, torches, propane campfires and generators.

Truma AquaGo® Comfort Tankless Water Heater

Upgrade
Truma AquaGo® Comfort Tankless Water Heater

Powerful and efficient instant water heater that runs on propane. Provides constant water temperature, even with high flow rates.

Nature’s Head Composting Toilet

Upgrade
Nature's Head Composting Toilet

Replaces the standard Dometic toilet. The toilet is self-contained, urine diverting and the waterless operation allows for ease of use for many applications. The Nature’s Head is lightweight, odorless and compact making it a perfect fit for your Ollie.

The toilet with its stainless steel hardware, robust construction and user friendliness has been designed to withstand the harshest of conditions.

KTT Latex Mattress

Upgrade
KTT Latex Mattress

This comfortable latex foam mattress will serve as a replacement cushion for any of your needs.

Couch Bed Extra Cushions

Upgrade
Couch Bed Extra Cushions

Add an extra couch bed cushion. Available only on the Legacy Elite II Twin Bed Floorplan.

Lagun Table

Add-On
Lagun Table

Add the Lagun Table. Available only on the Legacy Elite II Twin Bed Floorplan.

Shower Track

Add-On
Image Coming Soon

Add a shower track to your bathroom/shower.

Microwave Replacement Storage Box

Replacement
Microwave Replacement Storage Box

Replace the Microwave with a Storage Box.

Custom Graphics

Add-On
Custom Graphics

Add Custom Graphics to the Front, Door front, Sides and Back of the Legacy Elite models.

LEGACY ELITE II

SPECIFICATIONS

GVWR
7,000 lbs.
Dry Weight (approximate)
4,600 lbs.
Tongue Weight (approximate)
460 lbs.
Fresh Water Tank Capacity
30 gallons
Grey Water Tank Capacity
30 gallons
Black Water Tank Capacity
18.5 gallons
Seats
7

*All measurements are approximate

Outside Length
23′ 6″
Outside Height
8′ 6″
Outside Height to top of satellite receiver
9′ 7″
Outside Width
7′
Inside Height
6′ 6″
Inside Width
6′ 7″
Sleeps
3

Contact Info

Oliver Travel Trailers

737 Columbia Highway
Hohenwald, TN 38462
Sales Office Toll Free Phone: 1-888-526-3978
Sales Office Local Phone: 1-931-796-1178
Parts & Service: 1-866-205-2621
Mon - Fri 9:00AM - 5:00PM CST

If you are interested in viewing our manufacturing plant, tours are scheduled Monday thru Friday 10AM CST. Plant tours are available by appointment only and require 24 hour notice.

Latest Posts

Social Media

Who is Online

Canoe12
mtkadan
scouter
2007-2017 © Oliver Travel Trailers - All Rights Reserved.
Login/LogoutForumsView Recent TopicsView Activity WallSearch MembersShare on FacebookShare on TwitterBack to Top
WordPress Image Lightbox Plugin
