• SETTING A NEW STANDARD IN QUALITY TRAVEL TRAILERS
Starting at $47,900
OLIVER LEGACY ELITE

TRAVEL TRAILER

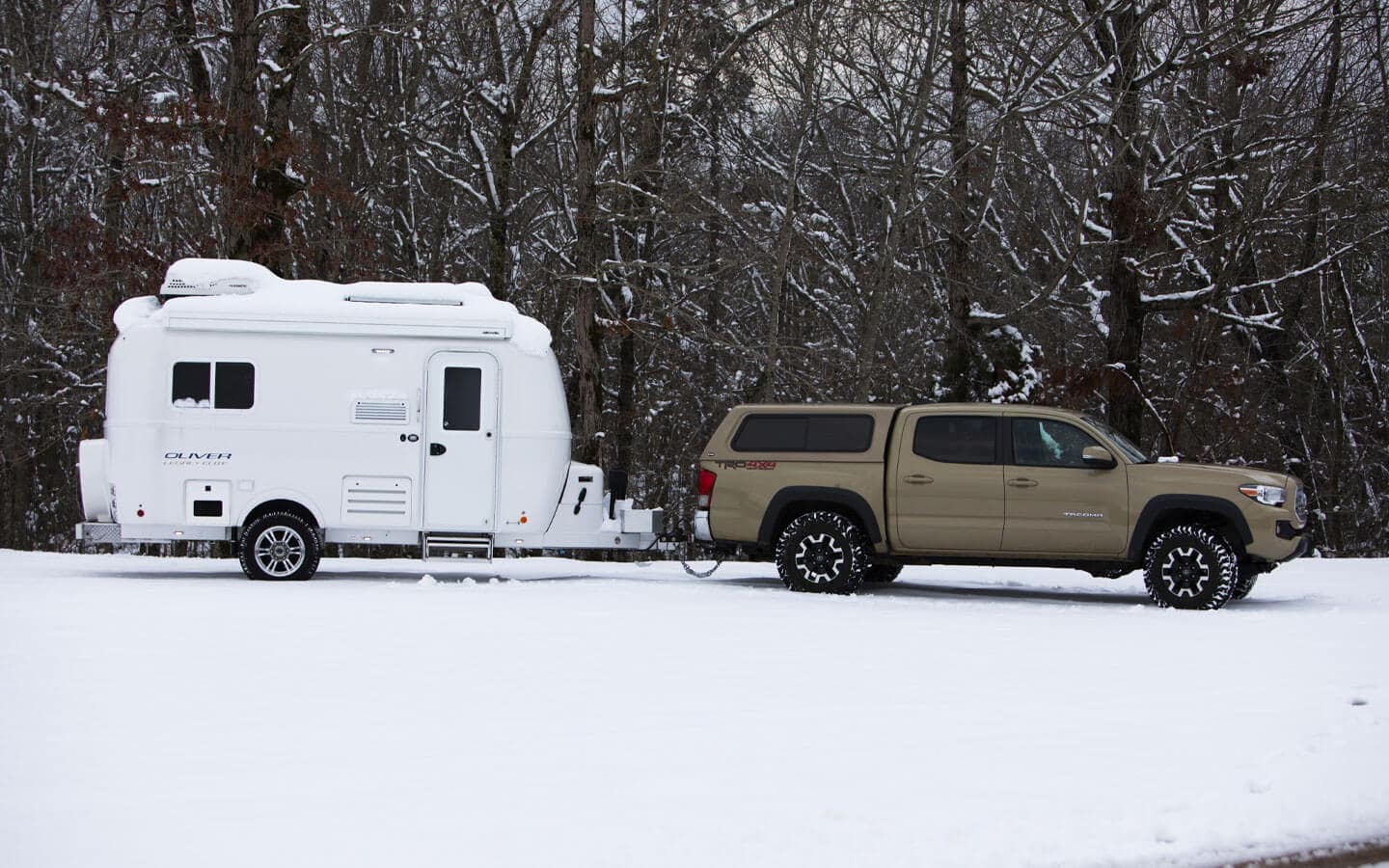

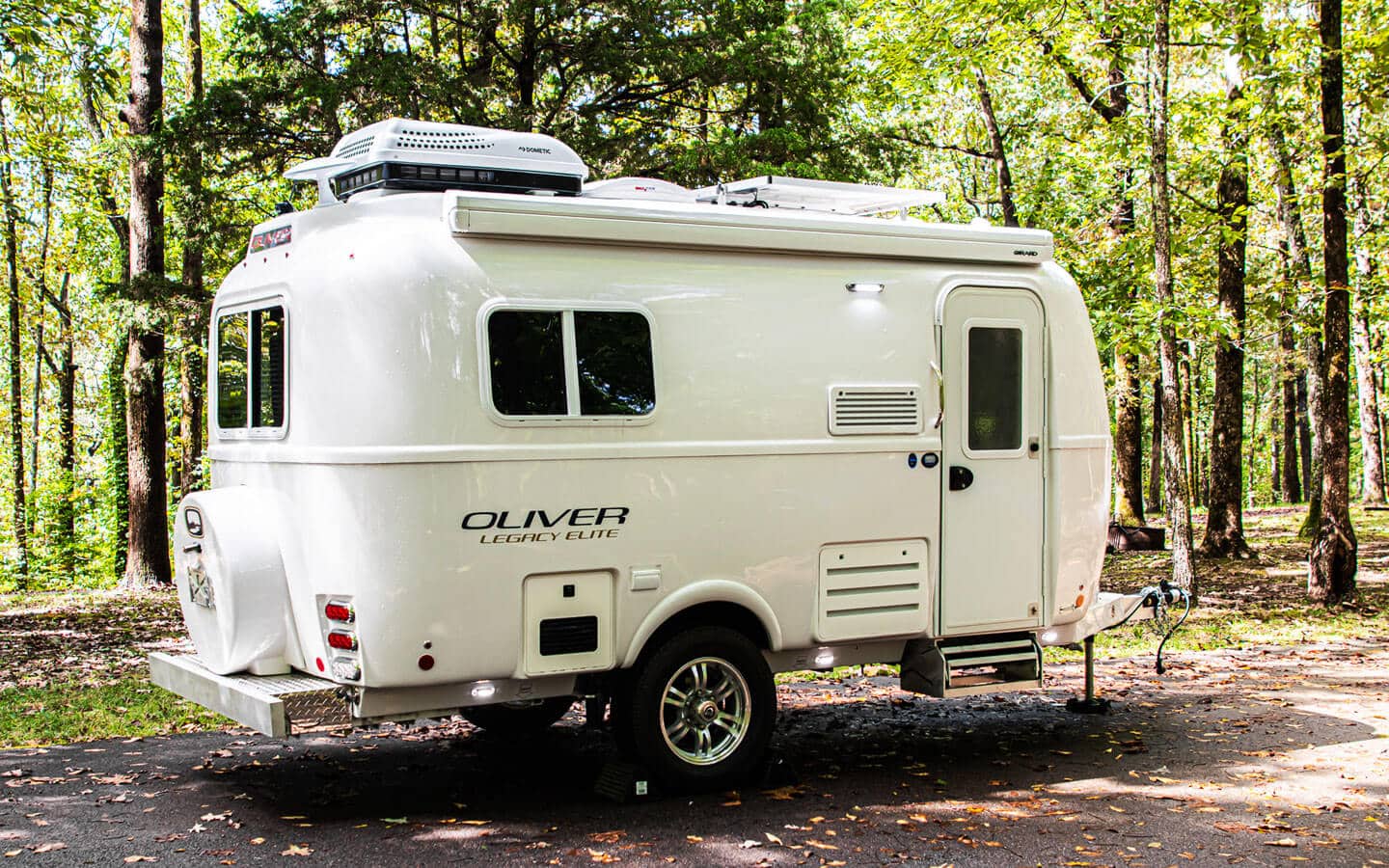

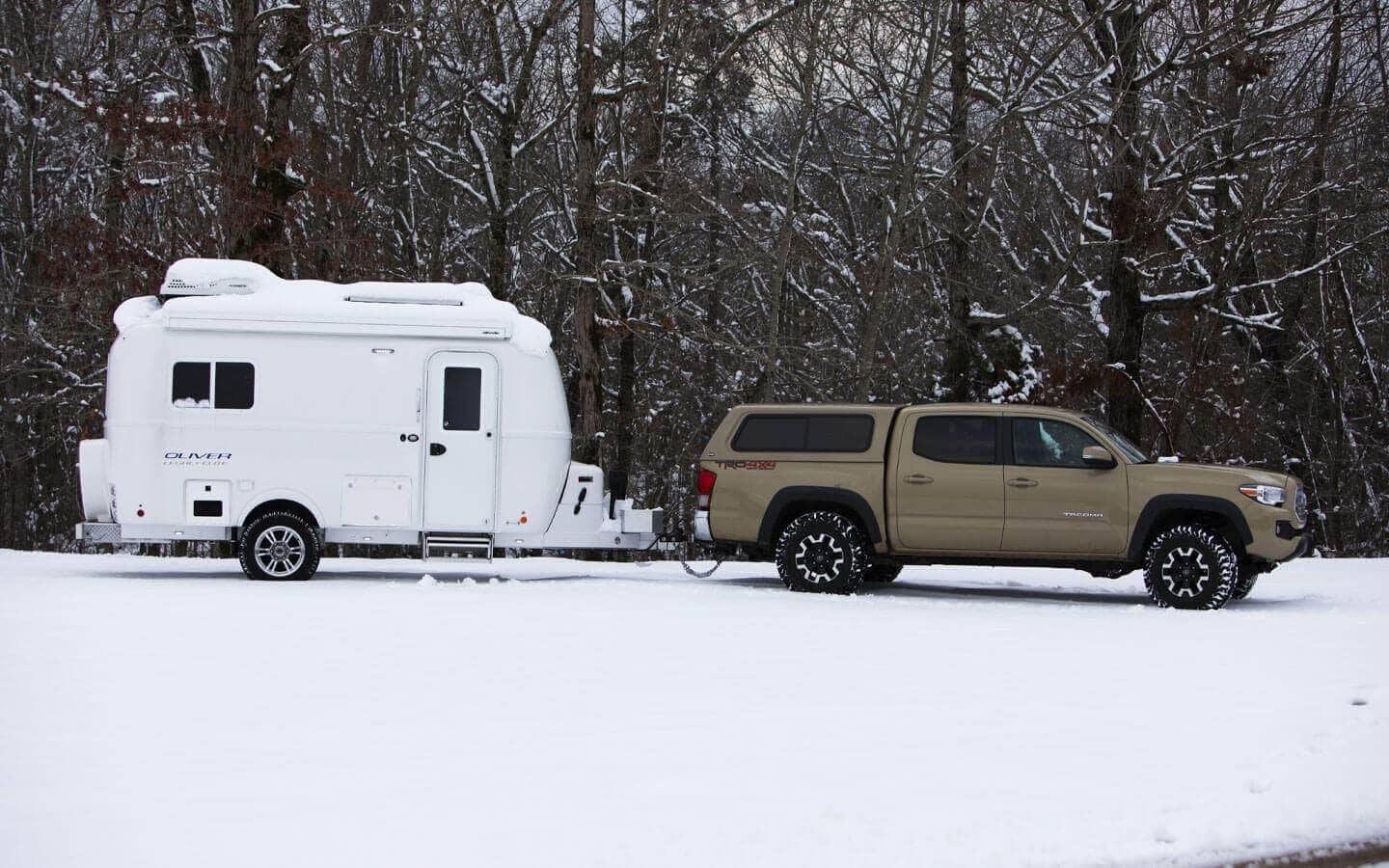

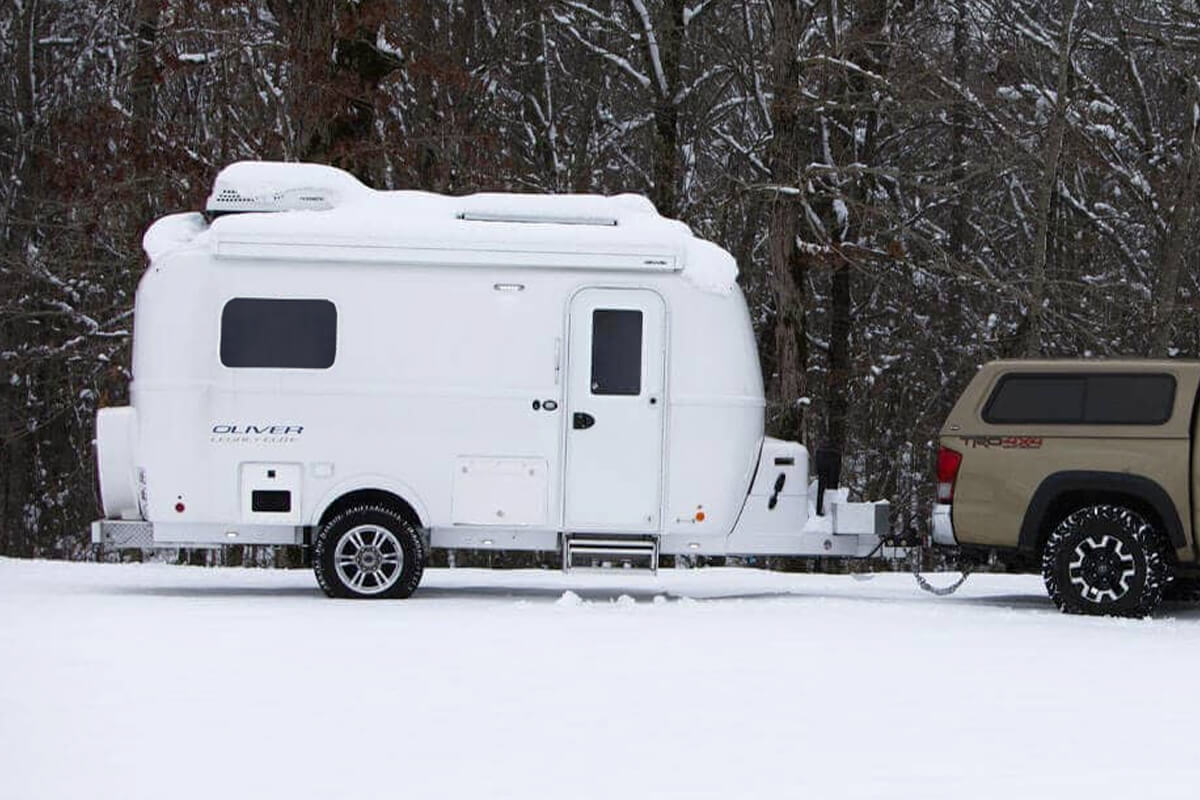

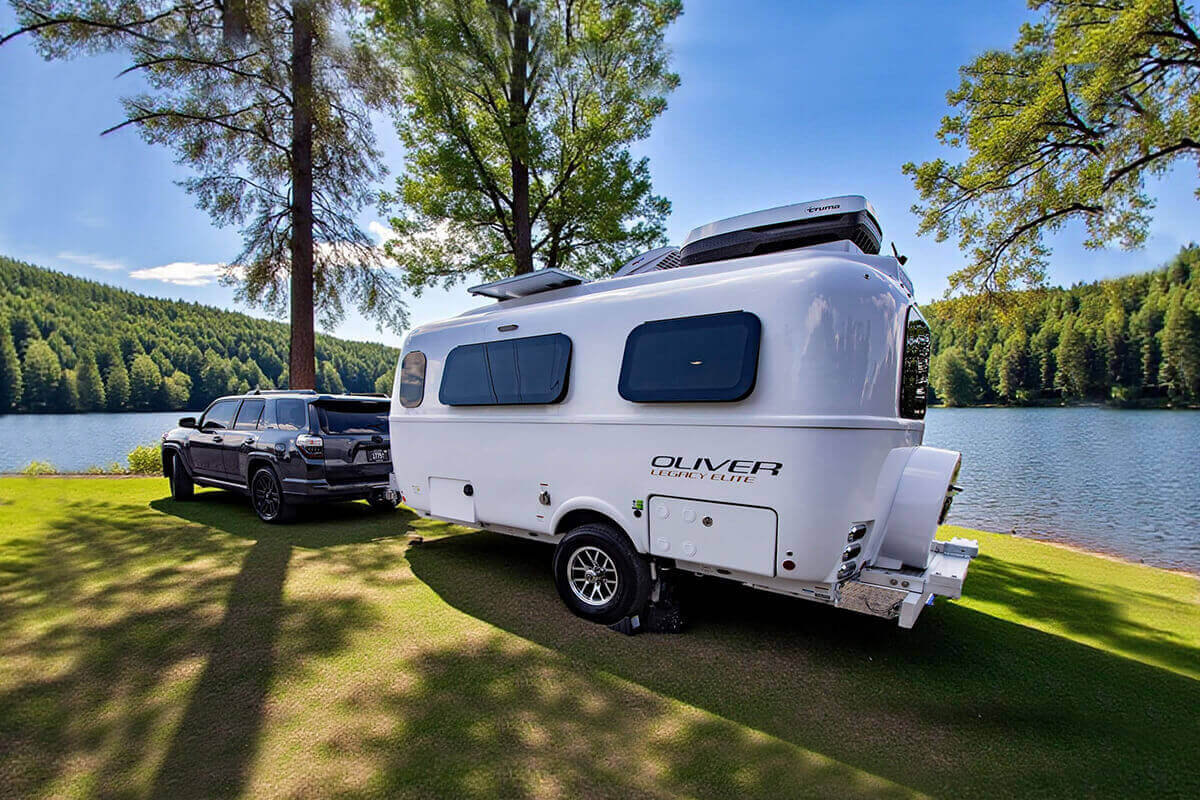

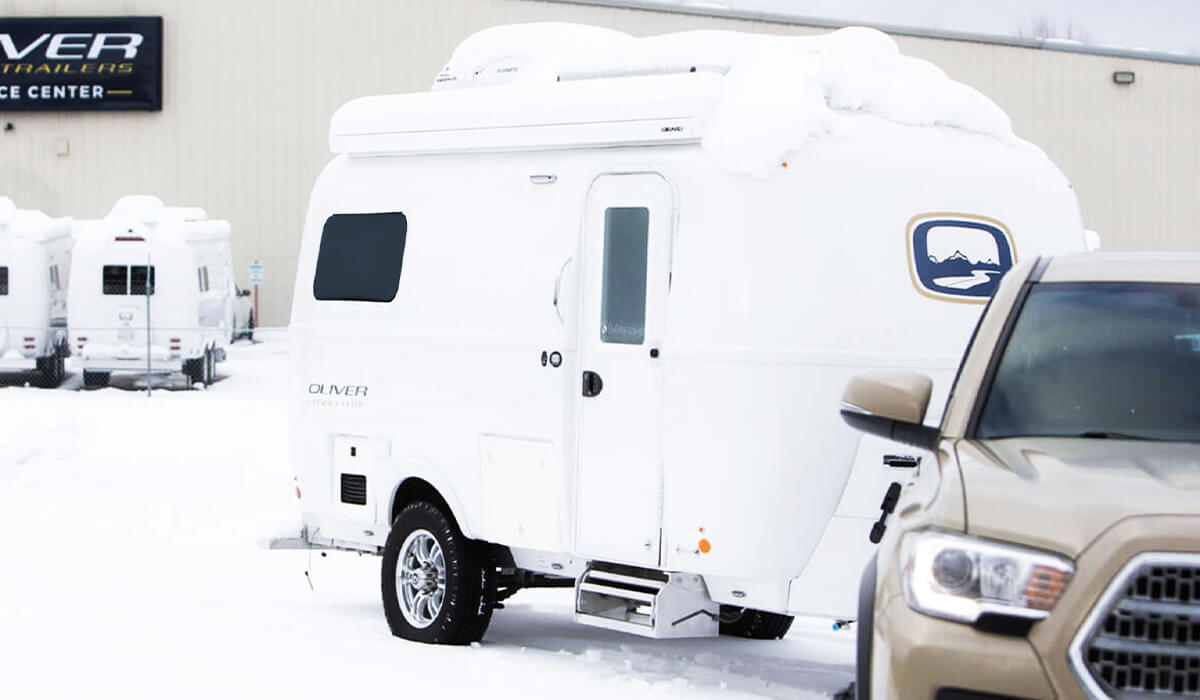

The 2018 Legacy Elite (18' 5''), our single axle double-hulled fiberglass travel trailer, is now available to order!
New Standard Features on 2018 Models
Adding Exterior Port to allow for portable (plug &play) solar – Must have factory solar package installed to use
Adding Water accumulator bladder tank, helps add constant water pressure at faucets (helps with sputtering water flow)
Adding 110V receptacle in closet
Adding dual exterior coax for portable cable/satellite connections
Mirror cabinet doors on center rear cabin and bathroom
2017 Options that are 2018 Standard Features
Progressive Industries EMS-HW30C Surge Protector
Dual Charging Station (One 12V socket & Two 5V USB)
Additional Outlets (Up to 2 Additional)
Bronze Bushing & Grease Zerks
LP Access Deck Port

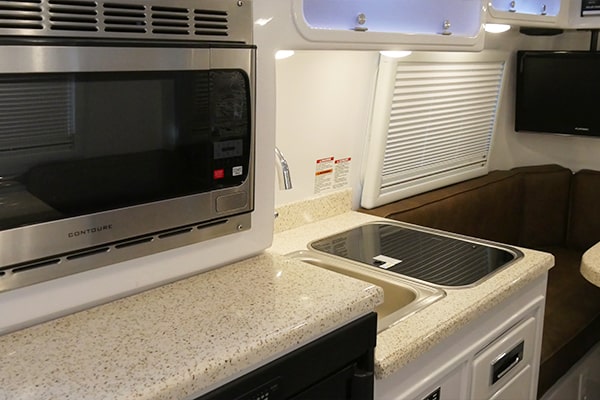

Reading Light Package
STANDARD FEATURESFLOOR PLANSPHOTO GALLERYEXTERIOR OPTIONSINTERIOR OPTIONSUPGRADES & ADD-ONSSPECIFICATIONSINQUIRE ABOUT PURCHASING THIS MODEL
ELITELY EQUIPPED

STANDARD FEATURES

SHELL

  • Full Custom Molded Interior and Exterior Insulated Shells
  • Custom Molded Fiberglass LP Cover
  • Custom Molded Fiberglass Spare Tire Cover
  • Enclosed Plumbing, Holding Tanks and Drain Pipes with Heat to Prevent Freezing
  • 30 Gal. (approximate) Large Capacity Fresh Water Tank
  • 30 Gal. (approximate) Large Capacity Grey Water Tank
  • 18.5 Gal. Large Capacity Black Water Tank with pressure flushing system for the Tank

CHASSIS

  • Quad Shocks on Dexter leaf spring axle with “Nev-R-Adjust” 12″ electric brakes for exceptional control and braking (Now with Bronze Bushings & Grease Zerks)
  • Spare Tire with Aluminum Wheel Rim
  • 2” x 5” Box Tube Aluminum Frame
  • 5000 Lb. Cast Iron Bulldog Hitch
  • 16″ Aluminum Rims with Nitrogen filled Michelin LTX M/S2 Tires
  • Black “Rock Guard” Wheel Well Lining
  • Hide-away aluminum storage bumper with black/grey water attachment located inside

EXTERIOR

  • (2) 20 Lb. LP Tanks
  • Fresh Water Fill Hook-Up
  • City Water Direct Hook Up
  • Fold Up Aluminum Double Entry Steps with Grip Tape
  • Custom Enclosed Slide-Out Battery Storage (Includes (2) 12 V Batteries)
  • Marine Grade Shore Power Connection with 25’ cord
  • Outside 11OV GFI Protected Outlet w/ Cover
  • LED Brake Lights
  • Custom Rear High Mount Oliver Sign
  • LED Marker Lights
  • 4 High Mount Porch Lights (2 on each side)
  • Exterior Entry Handle
  • Exterior LED Ground Lighting

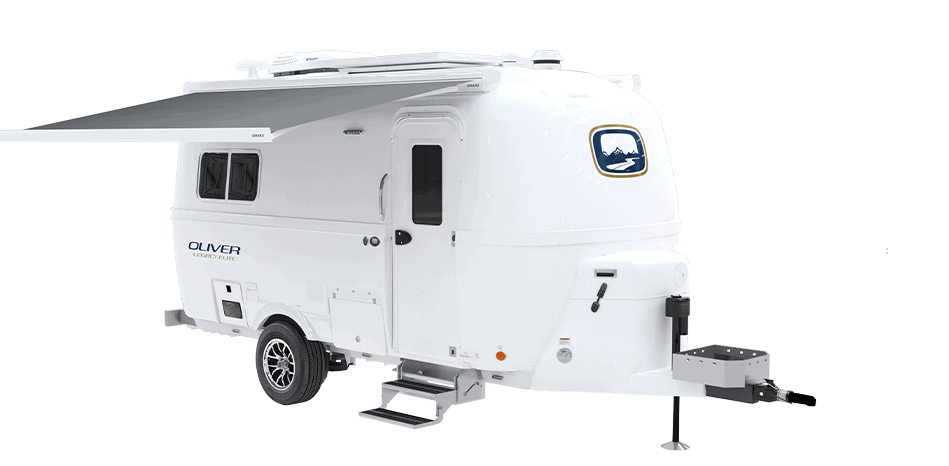

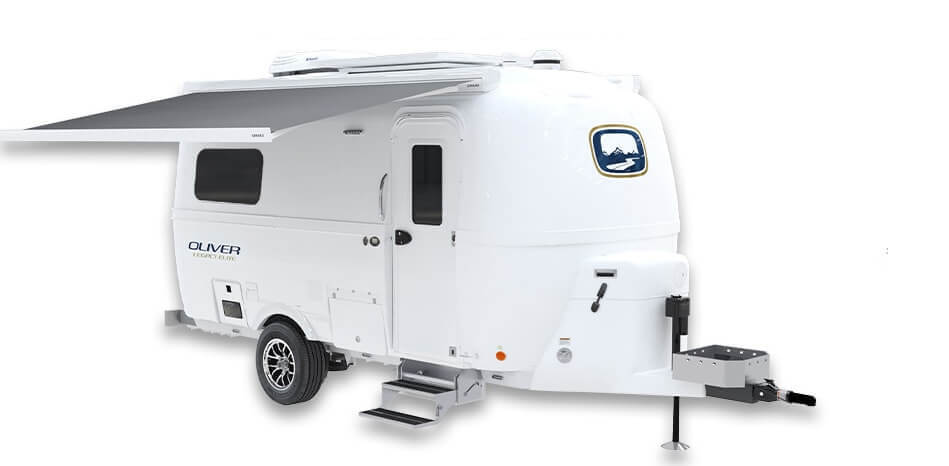

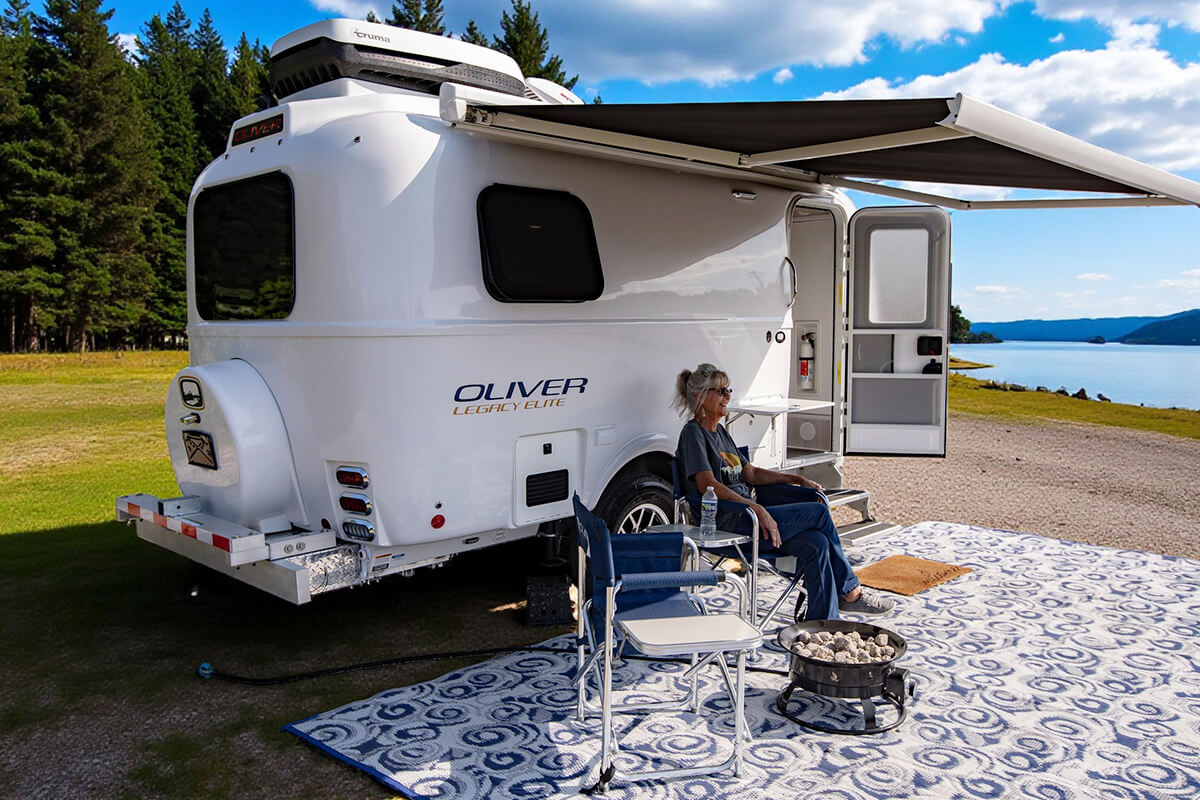

  • 9′ 10″ Carefree Freedom Wall Mount Awning (Handcrank)
  • Outside Wash Station
  • Three Point Power Stabilizing System
  • (4) Sliding Thermal Pane Windows with Sliding Screens
  • NEW exterior plug & play port for portable solar panels (requires factory installed solar package)
  • NEW Propane Access Port (2017 option)

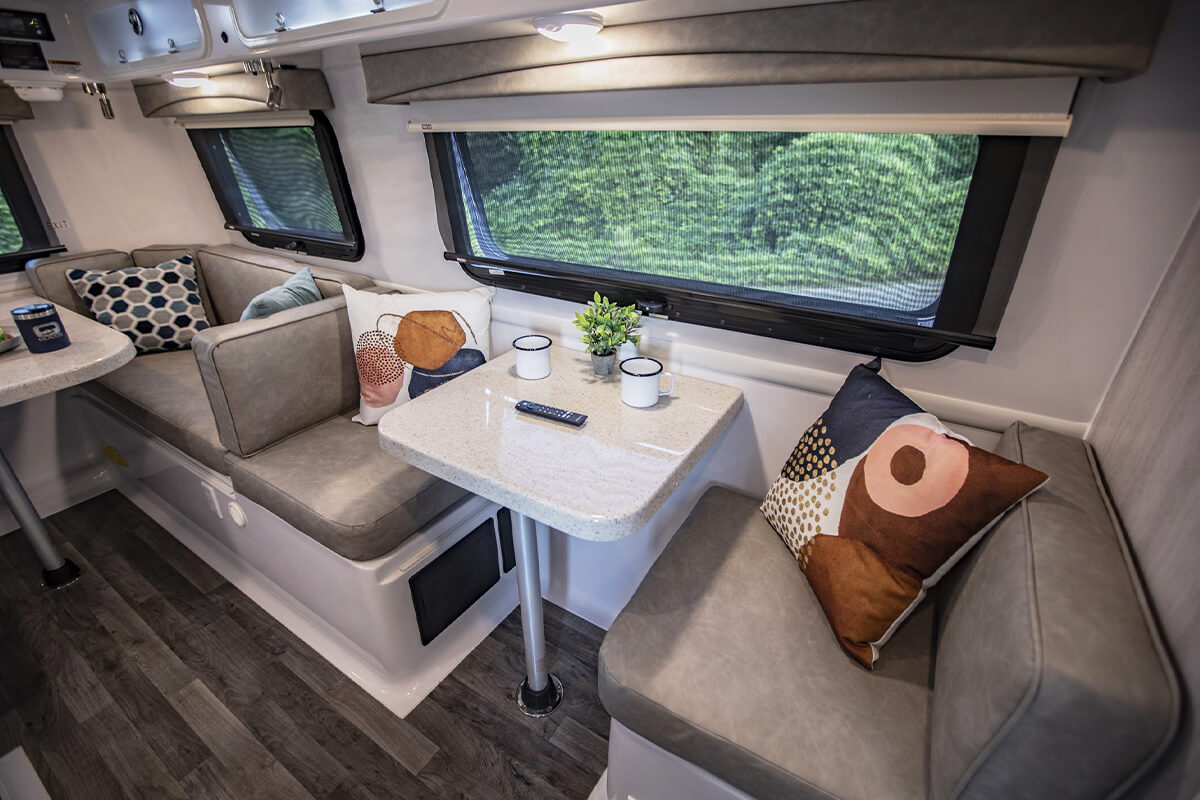

SEATING/SLEEPING

  • Side Dinette (seats 2) Converts to Single Bed
  • Rear Dinette (seats 5) Converts to 74″ x 52″ size bed on Standard Floor Plan

INTERIOR

  • Full Surround Over-Head Lighted Storage Compartments
  • Lighted Storage Closet
  • (EZ) Winterizing System

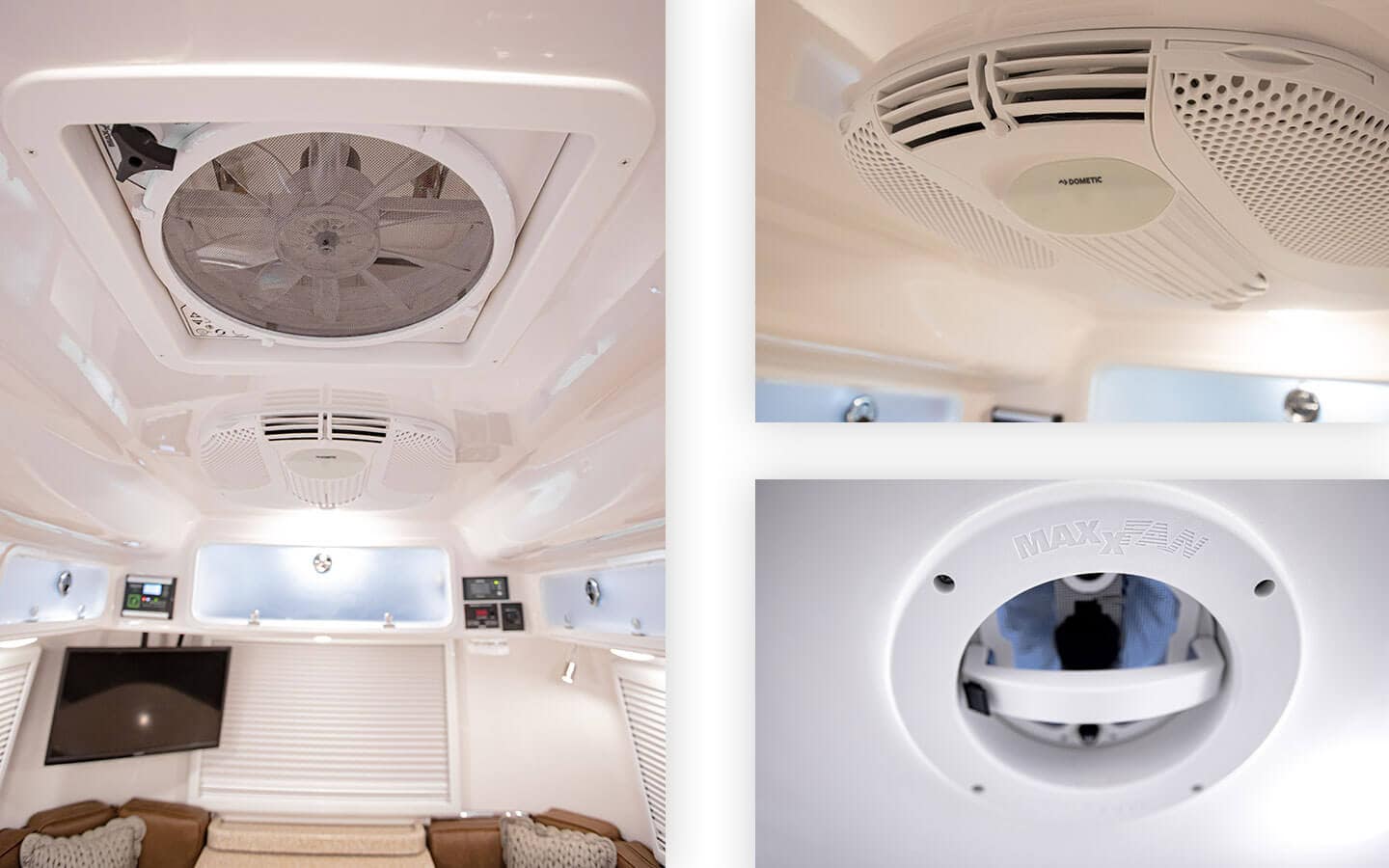

  • MaxxFan Deluxe Remote Control RV Ventilator System
  • 2 Way Self Igniting Hot Water Heater, DSI 6 Gal
  • Fresh Water Pump 55 PSI, 3.0 GPM x 9.0 BTU
  • Dometic Penquin 2 (13,500 BTU) A/C Unit & Wall Mount Thermostat
  • Self-Igniting LP Furnace with Central Heating

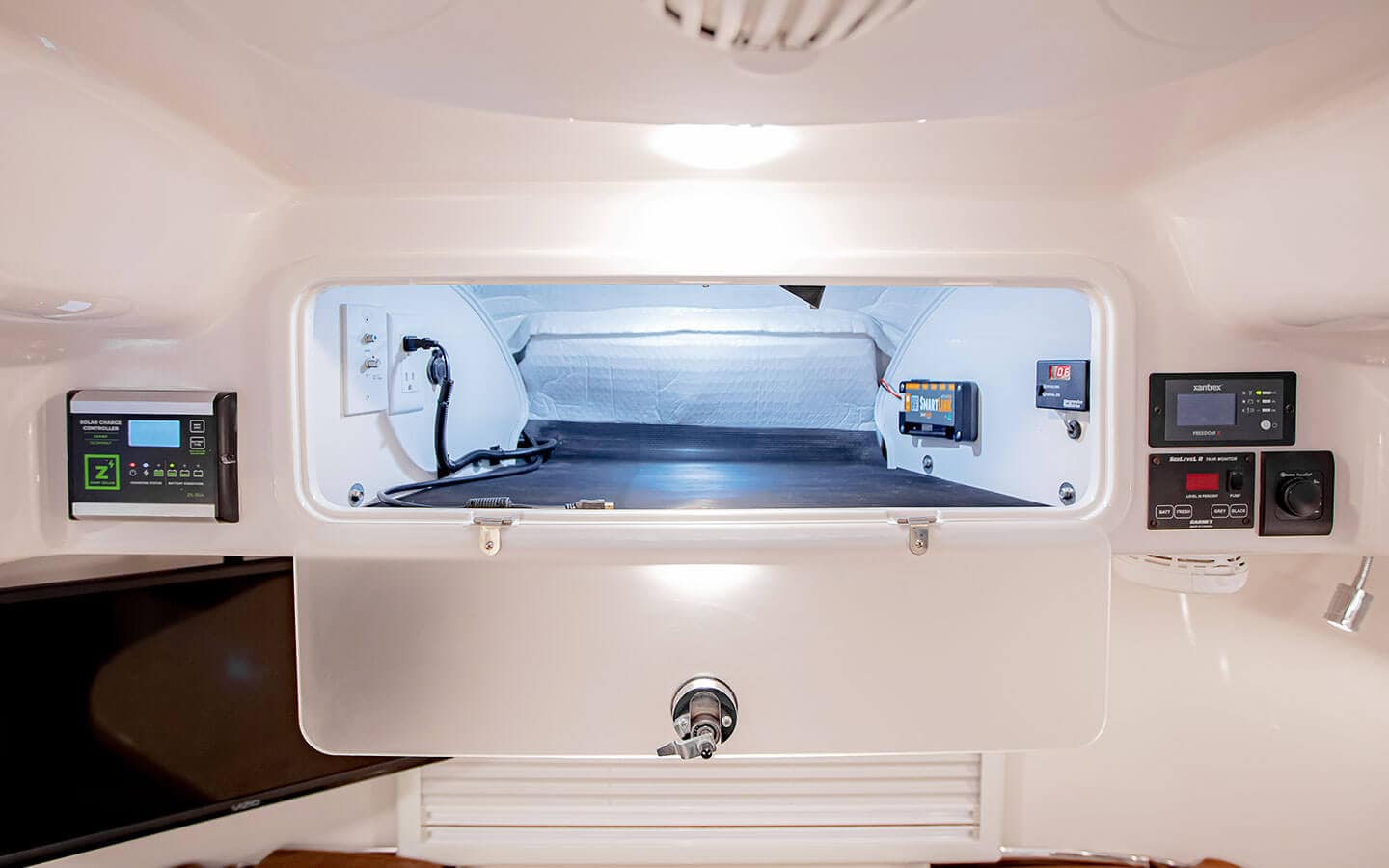

  • Monitoring System for Tanks and Batteries
  • Day/Night Window Treatments (Excludes Bathroom)
  • (11) 3″ Overhead LED Lights
  • (3) LED Courtesy Floor Lights
  • NEW mirrored upper doors on center rear cabin and bath cabinets doors
  • NEW additional 110V receptacles including one in closet
  • NEW water accumulator bladder tank that helps maintain constant water pressure at faucets
  • NEW surge protector (2017 option)
  • NEW additional 12v/5V Dual Charging Stations (2017 option)
  • NEW reading light package (2017 option)

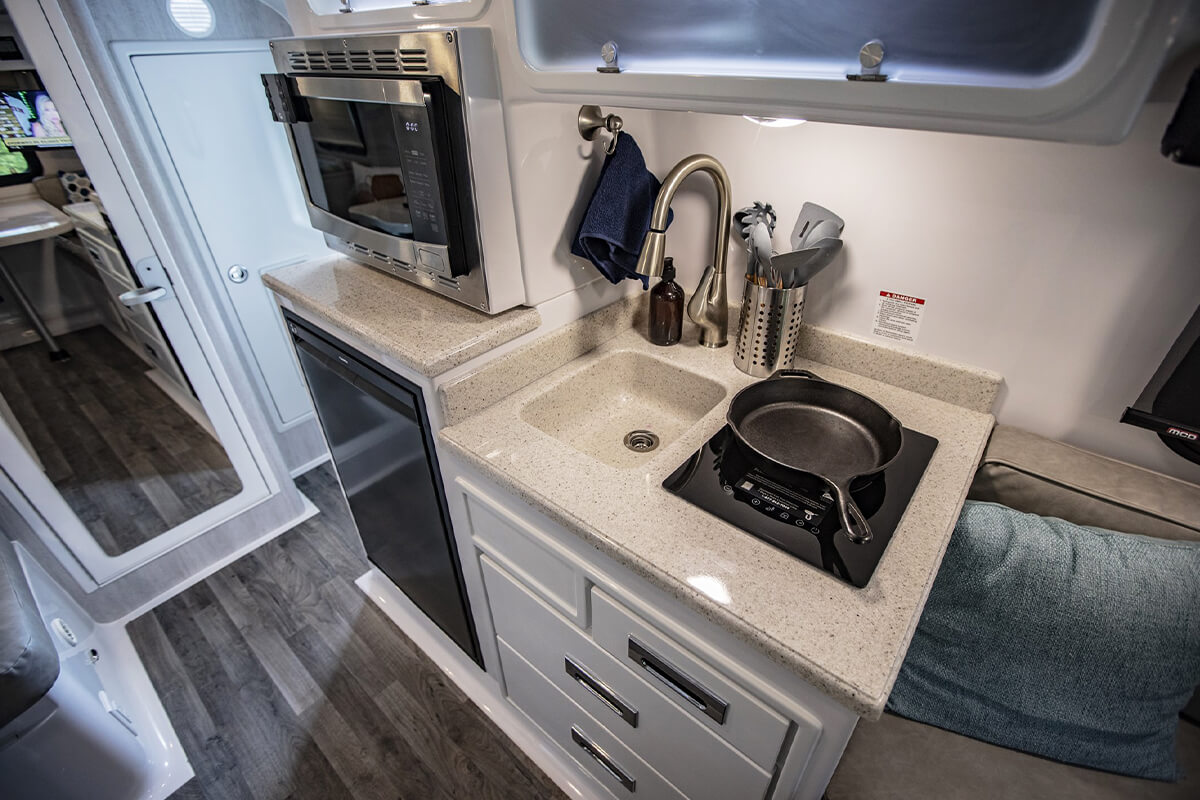

KITCHEN AREA

  • Flush Mount 2 Burner Stove
  • 3 Way Refrigerator (12V, 11OV, LP)
  • High rise swivel faucet
  • Custom Designed Storage Drawers with Dovetail Joints
  • Stainless Steel Microwave

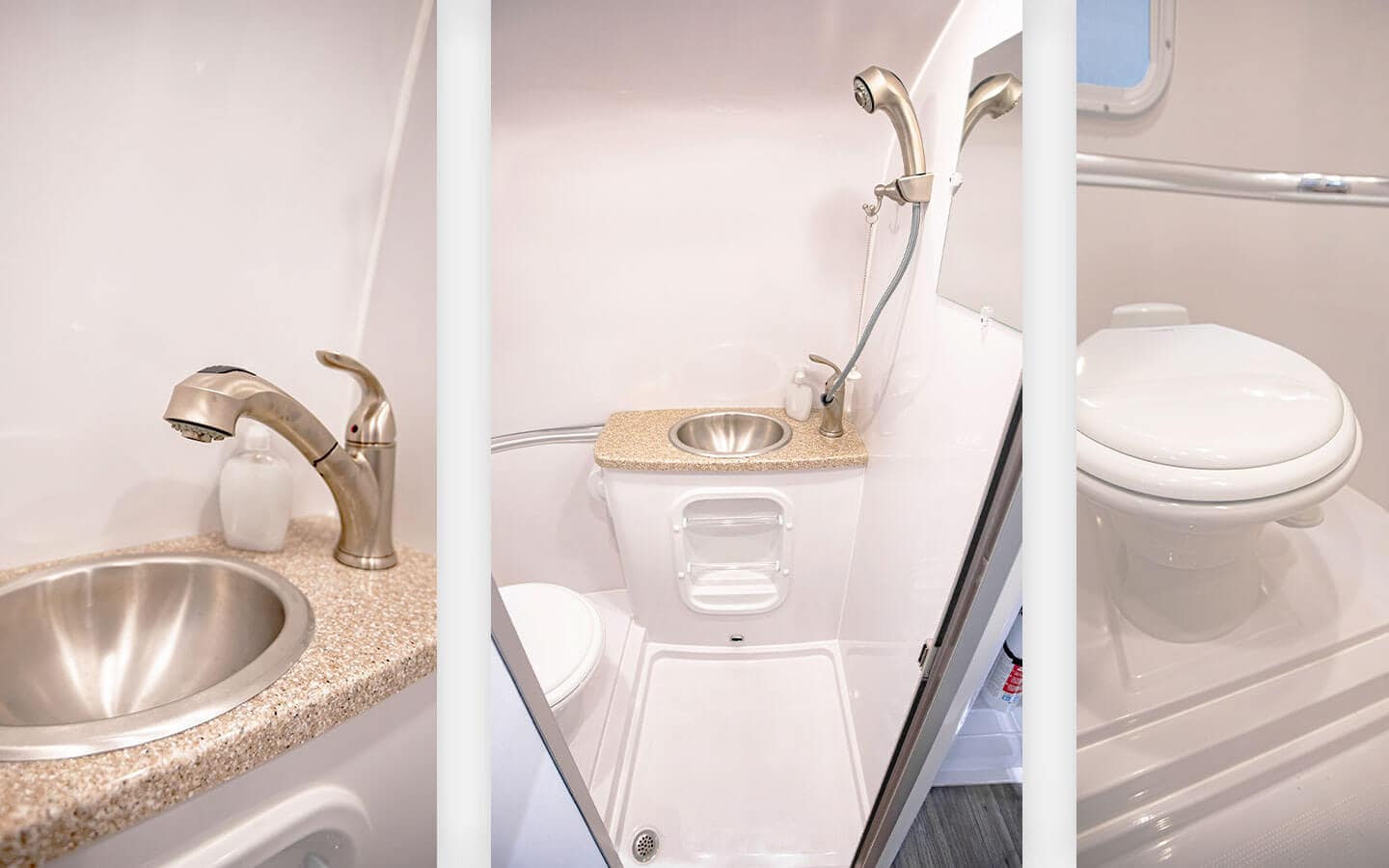

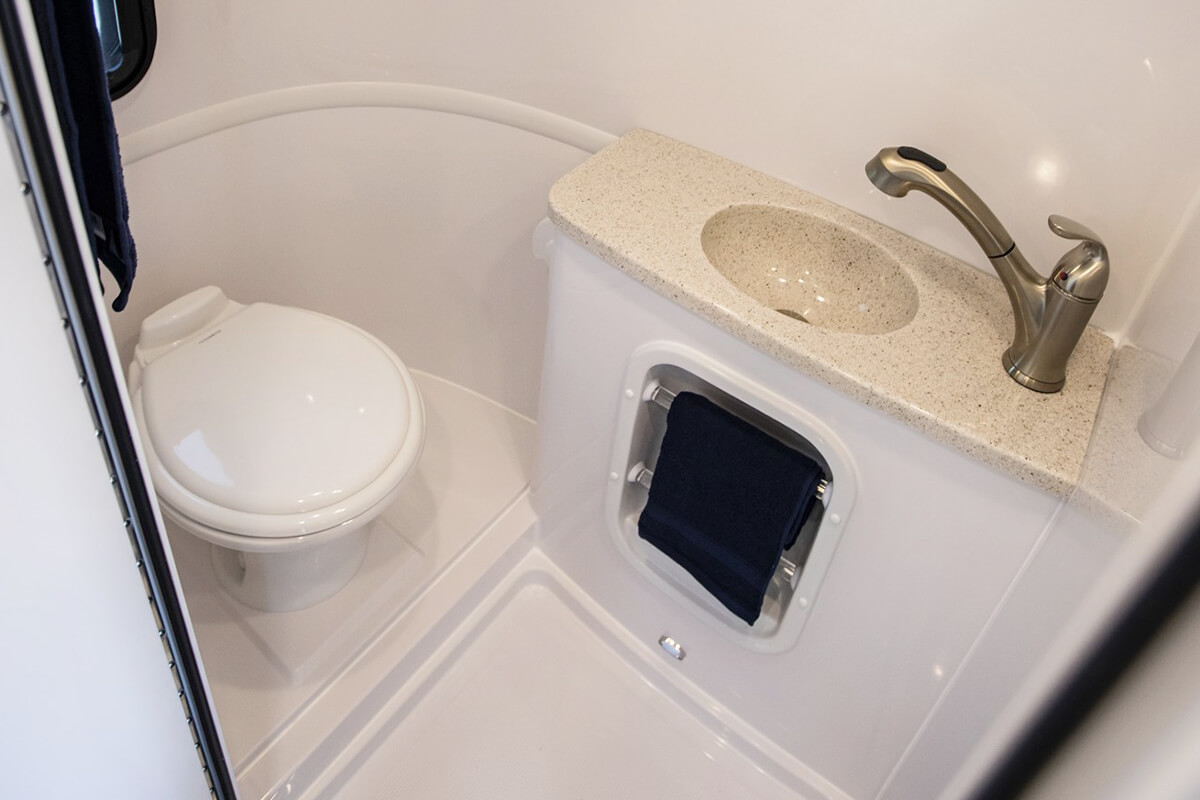

COMPLETE BATHROOM

  • Molded Vanity with Toiletry Storage
  • Dometic 311 toilet (low profile with porcelain bowl)
  • Exhaust Fan
  • Chrome Faucet with Pull Out Shower Wand
  • Sliding Frosted Privacy Window with Screen
  • Mirror Tinted Glass Door
  • Waterproof Toilet Paper Compartment
  • Towel Bar and Hook (Central Heat Vent Under Towel bar)
  • Central Heat Vent

SAFETY/FIRE PROTECTION

  • Fire Extinguisher
  • Smoke Detector with Alarm
  • Carbon Monoxide Detector with Alarm
  • LP Leak Detector with Alarm
  • Oversized Emergency Egress Window with Screen

ENTERTAINMENT SYSTEM

  • 22” Flat Screen LCD TV, Radio with AM & FM dual zone audio output, CD/DVD/MP/WMA/MP4, USB, Bluetooth & Remote control
  • (4) Custom Mounted Speakers
  • NEW dual exterior coax for portable cable or satellite connections

FLOOR PLAN
DIAGRAMS

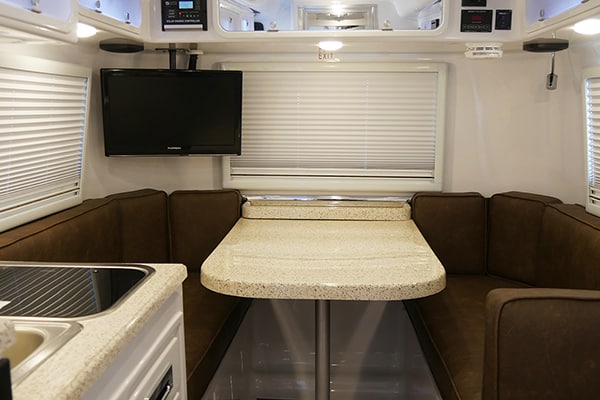

STANDARD FLOOR PLAN

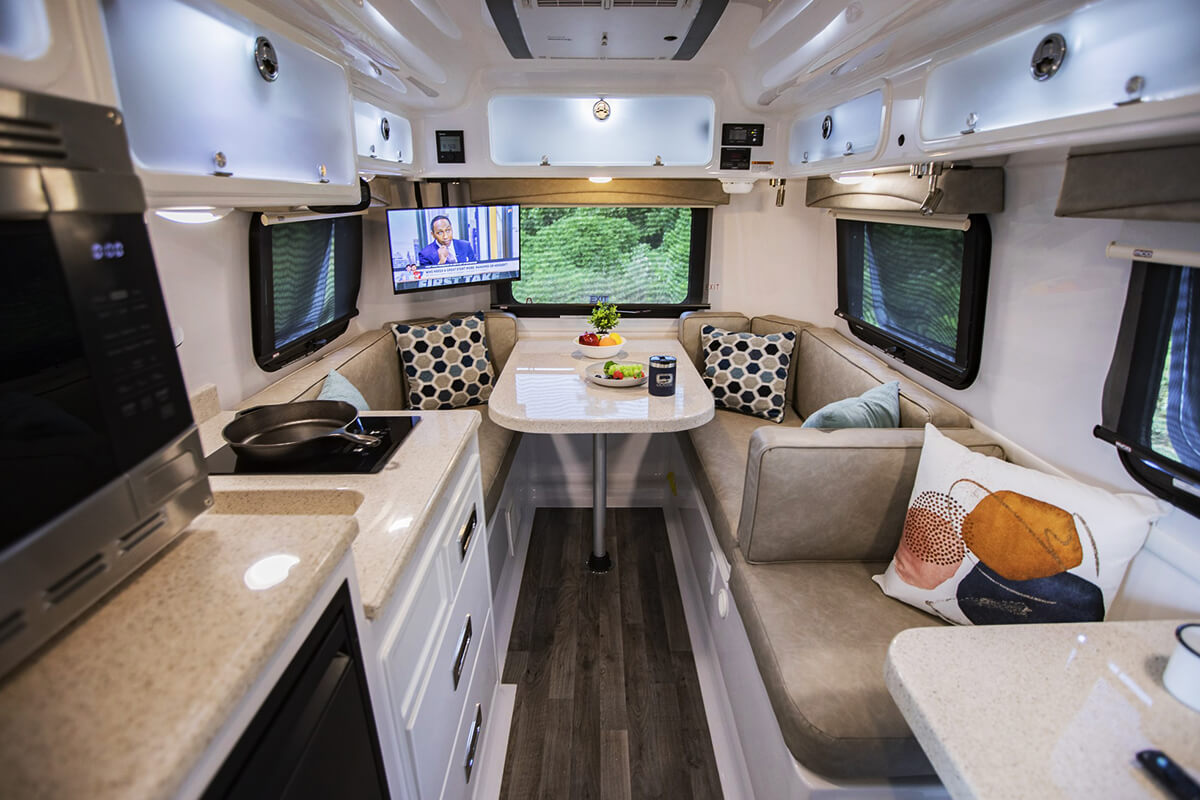

Our Legacy Elite Standard Floor Plan comes with a large rear table area for 4 people which can be converted to a Full Size Bed. This double-hulled insulated unit comes with thermal pane windows, central heat, TV/Stereo and lots of storage space to mention a few of its features. With your choice of fabrics and floor covering you can make your own personalized, one of a kind trailer.

Legacy Elite 5

LEGACY ELITE
PHOTO GALLERY

TRAVEL TRAILER
EXTERIOR OPTIONS

When you are ready to order your new Oliver Travel Trailer, you can choose your exterior style options that include Solid and Pinstripe exterior graphics. You can choose two vinyl colors to give your Ollie it’s own unique style. The awning is available in five color choices.
travel trailer graphics color options

Graphic Vinyl Color Options

Alternative color choices may be available as an upgrade. Contact our sales office for more information.
  • sRGB: 251, 170, 0
    020 Golden yellow
  • sRGB: 254, 197, 0
    021 Yellow
  • sRGB: 111, 0, 14
    312* Burgundy
  • sRGB: 176, 0, 13
    031 Red
  • sRGB: 211, 49, 0
    047 Orange red
  • sRGB: 234, 103, 0
    036 Light orange
  • sRGB: 27, 46, 93
    050 Dark blue
  • sRGB: 0, 64, 140
    057 Traffic blue
  • sRGB: 0, 117, 187
    084* Sky blue
  • sRGB: 61, 161, 210
    056 Ice blue
  • sRGB: 0, 155, 151
    054 Turquoise
  • sRGB: 0, 82, 54
    613 Forest green
  • sRGB: 0, 122, 66
    068 Grass green
  • sRGB: 106, 167, 45
    063 Lime-tree green
  • sRGB: 67, 47, 30
    080 Brown
  • sRGB: 168, 136, 92
    081 Light brown
  • sRGB: 206, 192, 159
    082 Beige
  • sRGB: 13, 14, 17
    070 Black
  • sRGB: 75, 76, 76
    073 Dark grey
  • sRGB: 117, 125, 124
    071 Grey
  • sRGB: 191, 194, 192
    072 Light grey

Awning Color Options

Click colors below to enlarge

TRAVEL TRAILER
INTERIOR OPTIONS

When ordering, you can customize your ``Ollie`` by choosing any combination of our standard flooring and upholstery options to match your personalized style.

Flooring Options

Upholstery Options

TRAVEL TRAILER
UPGRADES & ADD-ONS

See the available Upgrades and Add-ons below for the Legacy Elite. Features and Options are subject to change without notice.
Contact our sales office for pricing.
Fiber-Granite

Countertops Upgrade

Fiber-Granite

Fiber-Granite is a luxury countertop upgrade and is custom molded from fiberglass, gel coated and then buffed to resemble granite. It will replace all available standard countertop surfaces.

Available Colors: Paradise Beach, Tahoe, Baltic and Dakota

*Standard countertop package includes black side dinette and rear dining tables, white molded fiberglass on the kitchen galley and bathroom countertop, along with wood accents under the pantry and microwave. Fiber-Granite colors online may not appear appropriately. Contact us for samples.

winegard carrout g2 plus

Add-On

Winegard CARRYOUT G2+ SATELITTE TV ANTENNA Mounted or with Portable Tripod (GM-6000)

The Winegard Carryout G2+ offers the ultimate in flexibility with the ability to be completely portable, roof mounted, or mounted on our rear cab, ladder, window or tri-pod mounts.

Easily switch providers between DIRECTV, DISH and BellTV!

Travel Trailer Options and Upgrades 10

Add-On

Power Inverter – Xantrex – ProWatt SW Series/2000W

Features True Sine-wave AC output with 1800 continuous watts and high surge capability. This option includes a transfer switch to bypass the inverter when plugged in to a 110V power source.

weBoost 4G-M

Add-On

weBoost Drive 4G-M Cell Phone Booster

The Drive 4G-M is weBoost’s most popular 4G vehicle cell phone signal booster. This booster for vehicles extends cellular signal range to ensure you get better voice and data with fewer dropped calls, improved voice quality, faster uploads and downloads. weBoost’s Drive 4G-M boosts cell signals up to 32x to enhance 4G LTE and 3G signals for everyone in the vehicle such as a car, truck, van or RV. This booster is compatible with all US and Canadian wireless networks such as Verizon, AT&T, Sprint, T-Mobile, US Cellular, Straight Talk and more.

Travel Trailer Options and Upgrades 27

Add-On

Winegard ROADSTAR Omni-Directional Antenna (RS-3000)

Compact amplified omni-directional antenna continuously receives VHF/UHF/FM signals from all directions without adjustment.

Propane Quick Connect

Add-On

Front & Rear Propane Quick Connects

Front and rear trailer connections used for grills, torches, propane campfires and generators.

Upgrade

Auto Drain

Adds Auto Drain to the shower.

Upgrade

Mirrored Upper Cabinet Doors

Upgrade the standard frosted (transparent) upper cabinet doors to a mirrored finish.

Also available in white and black.

Upper Cabinet Doors

Upgrade the standard frosted (transparent) upper cabinet doors to a Black or White.

Generator Quick Connect

ADD-ON

30 AMP CONVENIENCE CONNECTION

Adds a male plug to the front of the trailer that allows you to quickly to connect your generator to power your travel trailer.

Add-On

Custom Graphics

Add Custom Graphics to the Front, Door front, Sides and Back of the Legacy Elite models.

Microwave Replacement Storage Box

Microwave Replacement Storage Box

Replace your Microwave with a Storage Box.

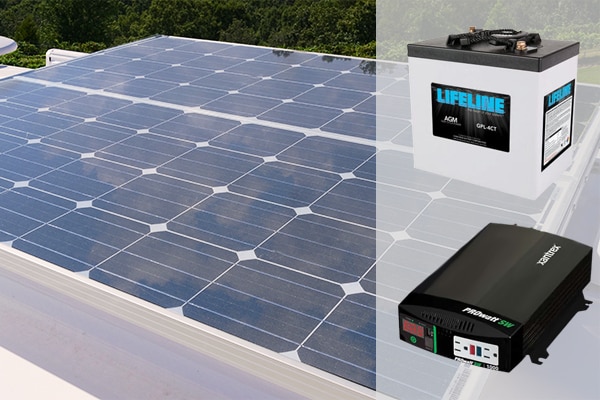

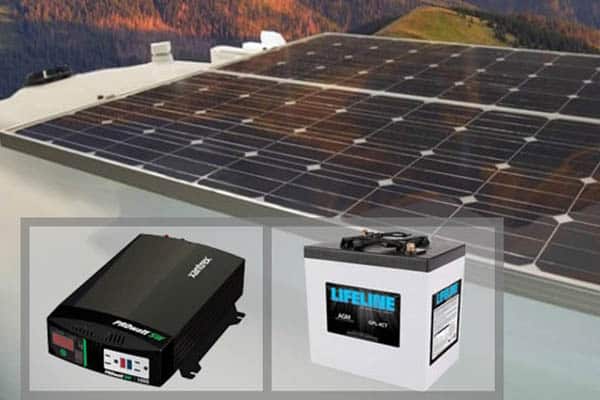

Solar Package

Add-on

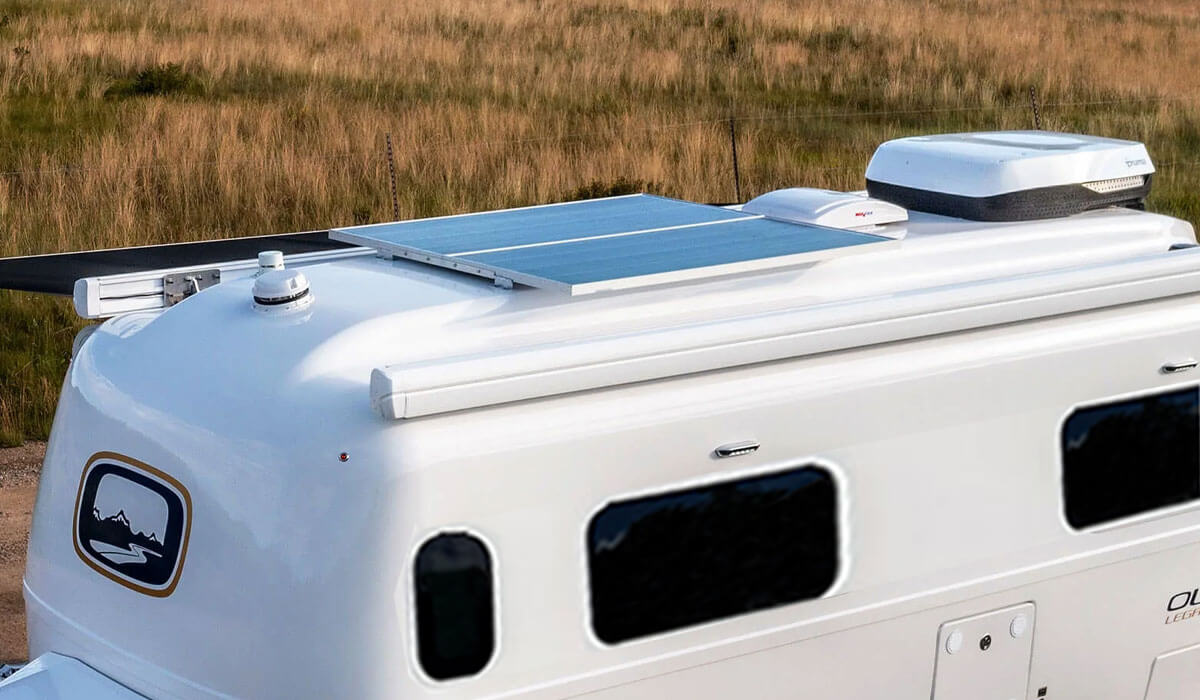

200 Watt Solar Package

Includes two 100 watt solar panels, ZAMP charge controller, 6 gauge wire harness with 30 amp circuit breaker and a disconnect switch. With the minimal electrical draw of our LED lighting and other technologies, this will allow you to use your “Ollie” off the grid and without the need of a generator. Efficiency dependent on sun exposure.
Lifeline GPL-4CT AGM DEEP CYLE Battery Package

Add-On

Lifeline GPL-4CT AGM DEEP CYLE Battery Package

Upgrades the batteries to two 6V Lifeline GPL-4CT Deep Cycle Batteries. The GPL-4CT is designed for charging amperages up to 550 amps or 250% of the rated Amp Hour Capacity due to low battery internal resistance.

Travel Trailer Options and Upgrades 19

ADD-ON

Digital Wireless Back Up Camera

The Voyager WiSight™ package includes a 4.3 LCD color monitor with integrated receiver, one 12-volt accessory plug, a suction cup monitor mount, one rear color camera with integrated transmitter, stainless steel hardware and non-corrosive camera mounting bracket. This allows you to see other vehicles behind you while driving and assist you when backing up. Option for additional camera is also available.
WifiRanger SkyPro Pack

Add-On

WiFiRanger SkyPro Pack

A complete RV network solution with indoor accessibility and outdoor range.  The package includes the indoor Core router and the outdoor SkyPro antenna, with the SkyPro ready to be mounted directly to a flat surface roof. The outdoor SkyPro is equipped with Flex-guardTM antennas that can bend down to 5″ clearance without doing damage to the unit, protecting against trees and other overhangs. The indoor Core provides a secure, private network for all of your wireless computers and devices.  The indoor Core router also has several LAN ports for hardwiring computers and devices. The SkyPro brings in otherwise weak WiFi from Hotspots in the area to get your entire network online. The indoor Core is dedicated to providing the secure network and also allows for USB tethering a cellular 3G/4G Aircard or cellular MiFi device.  Add an USB cellular modum to your existing wireless carrier plan, and have internet access anywhere you have cellular signal.

Add-On

Nature’s Head Composting Toilet

Replaces the standard Dometic toilet. The toilet is self-contained, urine diverting and the waterless operation allows for ease of use for many applications. The Nature’s Head is lightweight, odorless and compact making it a perfect fit for your Ollie.

The toilet with its stainless steel hardware, robust construction and user friendliness has been designed to withstand the harshest of conditions.

Bike Rack

Add-On

Bike Rack Mount

Adds a rear hitch assembly to allow for a removable hitch mounted bike rack. Does not include bike rack.

Truma AquaGO

Upgrade

TRUMA AquaGo® comfort TANKLESS WATER HEATER

Powerful and efficient instant water heater that runs on propane. Provides constant water temperature, even with high flow rates.

Anderson No-Sway Hitch

Upgrade

Andersen “No-Sway” Hitch

New Anti-Sway, Anti-Bounce Weight Distribution Hitch that has completely redesigned weight distribution.

storage basket

Add-On

Storage Basket

Adds a storage basket on the front, used for transporting generators or other camping accessories.

Upgrade

Door Handle/Lock with Electronic Keypad

Upgrade the standard door handle/lock with option to lock and unlock the door using a user friendly electric keypad.

Add-On

Shower Rod

Add a shower rod to the shower.

TRAVEL TRAILER
SPECIFICATIONS

GVWR
5,000 lbs.
Dry Weight (approximate)
3,400 lbs.
Tongue Weight (approximate)
340 lbs.
Fresh Water Tank Capacity
30 gallons
Grey Water Tank Capacity
30 gallons
Black Water Tank Capacity
18.5 gallons
Seats
6

*All measurements are approximate

Outside Length
18′ 5″
Outside Height
8′ 3″
Outside Height to top of satellite receiver
9′ 4″
Outside Width
6′ 6″
Inside Height
6′ 1″
Inside Width
6′ 2″
Sleeps
3
