Zamp Solar Port Fuse Missing


GeoffChapman

Recommended Posts

I am adding a portable 100W solar panel to my new-to-me 2021 LE1 with its 200 OTT installed panels, hoping to bring my solar up to 300W.

I picked up a Harbor Freight panel today, with a controller and added wiring. When I put my multimeter on the Zamp port (to double check polarity - I notice everyone says to be careful about Zamp's reversed polarity in their port wiring), there was no current!

Snooping around under the rear seat of the front dinette, I found out there is no fuse in the red fuse port just inside the exterior wall (see photo)!

I assume I should just put a fuse in, right? What amperage?

Thanks for any help!

Geoff


Geoff and Becca Chapman * Pittsburgh

Legacy Elite 1 Hull #731 * TV GMC Sierra 1500 6.2L V8

Link to comment
Share on other sites

travel trailer units for sale
Find Oliver Inventory Travel Trailers for Sale
View Inventory

10 amps is appropriate, your 100 watt panel will never put out more than 7, at best. It looks like a standard ATC type. Buy a set of spares for the future, in all sizes.

John Davies

Spokane WA



  • Thanks 1
  • Like 1

SOLD 07/23 "Mouse":  2017 Legacy Elite II Two Beds, Hull Number 218, See my HOW TO threads:

Tow Vehicle: 2013 Land Cruiser 200, 32” LT tires, airbags, Safari snorkel, Maggiolina Grand Tour 360 Carbon RTT.

Link to comment
Share on other sites

  • Moderators
44 minutes ago, GeoffChapman said:

I am adding a portable 100W solar panel to my new-to-me 2021 LE1 with its 200 OTT installed panels, hoping to bring my solar up to 300W.

This confuses me a bit -

If you have OTT installed panels - I assume that you have two of them on your roof?  If that is the case then you have more than "200" watts up there to start with.

Bill

2023 Ford F150 Lariat 3.5EB FX4 Max Towing, Max Payload, 2016 Oliver Elite II - Hull #117 "Twist"

Near Asheville, NC

Link to comment
Share on other sites

  • Moderators

OOPS!

It has been brought to my attention (thanks Mossemi) that you have an Elite I.

Therefore, my "confusion" is somewhat mollified.🤪

Bill

  • Like 1

2023 Ford F150 Lariat 3.5EB FX4 Max Towing, Max Payload, 2016 Oliver Elite II - Hull #117 "Twist"

Near Asheville, NC

Link to comment
Share on other sites

3 hours ago, GeoffChapman said:

I assume I should just put a fuse in, right? What amperage?

I have a 20A fuse on my LE2

2023 Elite II, Hull# 1386, Lithium Platinum Package (640AH, 400W Solar, 3000W Xantrex Inverter)
Truma water heater & AC

TV: 2024 Silverado 2500HD 6.6L 10-Speed Allison

Link to comment
Share on other sites

  • Moderators

Doesn't matter if e1 or e2 , I think the zamp port is simply separate,,goes straight to the battery, and "should" have a 10 amp fuse. Wiring"assumes"a suitcase solar, with separate controller, for portables.

What's on the roof is pretty much irrelevant. Different circuit.

The zamp port goes directly to battety. Solar panels go to controller. The twain don't meet.

And, yes, zamp  port is wired backwards, from sae standard. once you get the fuse installed,  you'll need to rewire your portable , or purchase an an adapter to reverse polarity. Only zam p (that I know of) works this way.

Best of luck





  • Like 1

2008 Ram 1500 4 × 4

2008 Oliver Elite, Hull #12

Florida and Western North Carolina, or wherever the truck goes....

400 watts solar. DC compressor fridge. No inverter. 2 x 105 ah agm batteries .  Life is good.









Link to comment
Share on other sites

  • Moderators
1 hour ago, rich.dev said:

I have a 20A fuse on my LE2

That's interesting.

The "original " zamp line had a 10 amp fuse, i think. Do you have a zamp port?

2008 Ram 1500 4 × 4

2008 Oliver Elite, Hull #12

Florida and Western North Carolina, or wherever the truck goes....

400 watts solar. DC compressor fridge. No inverter. 2 x 105 ah agm batteries .  Life is good.









Link to comment
Share on other sites

  • Moderator+

As a slight aside, because the solar panel connected to the "solar port" has its own controller and is wired directly to the batteries, whatever amperage input they provide will not be included in the total received over any given period of time. This is because their added input is not included in the calculations done in the main controller and displayed on whatever monitor you are using. Some simple rewiring can easily remedy that problem.

  • Like 1

Steve, Tali and our dog Rocky plus our beloved Storm, Maggie, Lucy and Reacher (all waiting at the Rainbow Bridge)

2008 Legacy Elite I - Outlaw Oliver, Hull #026 | 2014 Legacy Elite II - Outlaw Oliver, Hull #050 | 2022 Silverado High Country 3500HD SRW Diesel 4x4



             801469912_StatesVisitedTaliandSteve08-23-2021-I.jpg.26814499292ab76ee55b889b69ad3ef0.jpg1226003278_StatesVisitedTaliandSteve08-23-2021-H.jpg.dc46129cb4967a7fd2531b16699e9e45.jpg





Link to comment
Share on other sites

2 hours ago, SeaDawg said:

That's interesting.

The "original " zamp line had a 10 amp fuse, i think. Do you have a zamp port?

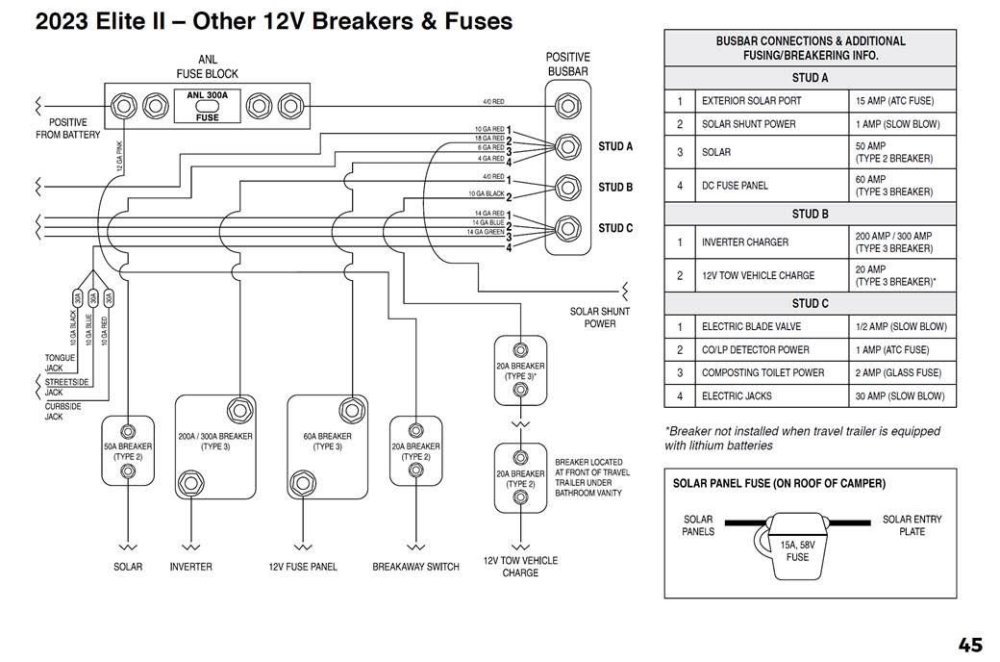

Yes a zamp port, I checked myself and it’s 20A, although the 2023 owners manual shows it to be a 15A fuse.
