Lithium batteries are happiest when they are not subject to extreme temperatures. The Oliver battery box has vent holes in the door, but the actual "container" itself is sealed tight, and the area above and around it is a dead end air space; there is no way to get the heat out in summer, or to get warm cabin air in during winter. I wanted to get good airflow through this space, with natural (convective heat flow) and forced (computer fan) movement. Another benefit is that the air flows from the open cabin space and through the two electronics compartments, cooling the hot accessories that are installed there. Like the battery box, those spaces have no natural airflow - they get hot in summer and cold in winter. This will help to moderate those temperature swings. Here is how I did it on Hull 218.

FYI, to the best of my knowledge the factory lithium package does not include any kind of venting to the cabin interior, though an electric heating pad is included. Please comment if this is incorrect!

John Davies

Spokane WA

Edited by John E Davies
  • Like 1

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

Battery box exhaust vents.

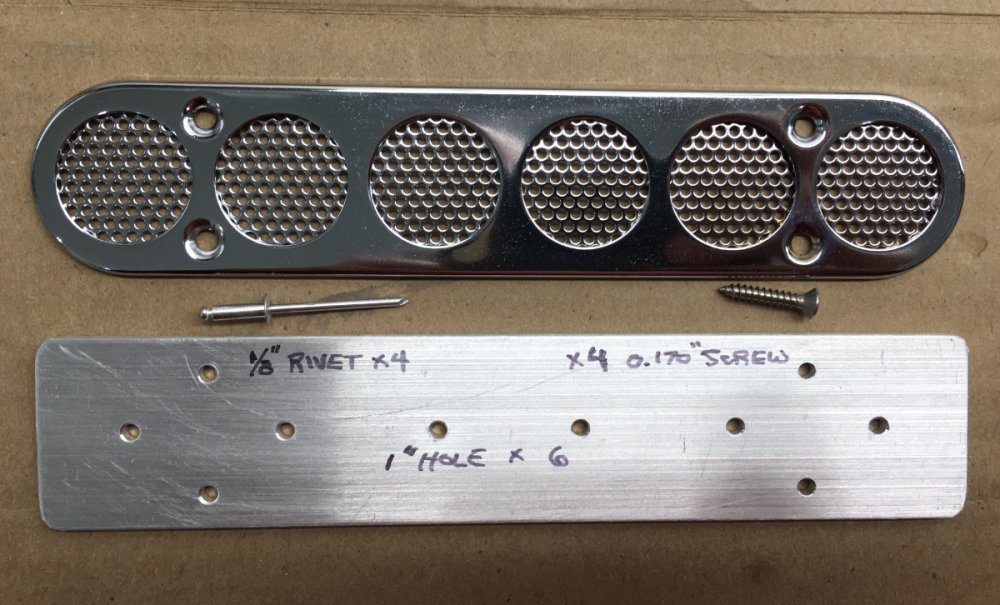

Qty 3 - Perko 51840 Chrome plated brass (same part used on the battery door factory vents) ... https://www.go2marine.com/perko-ventilator-vent

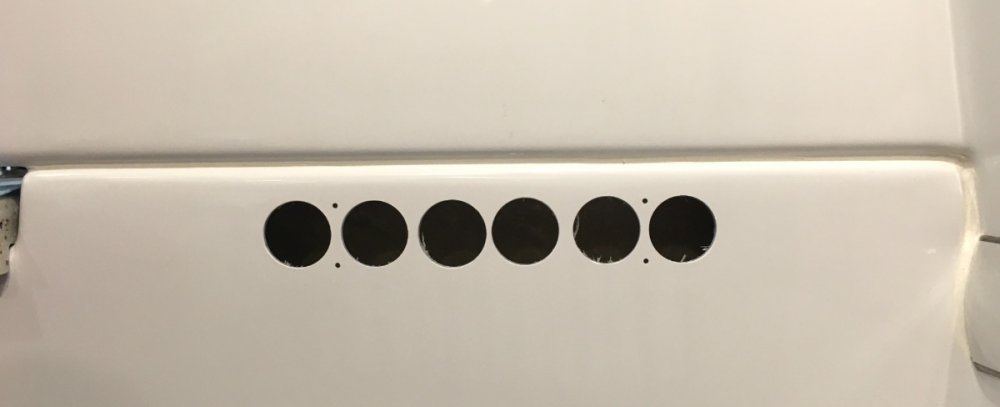

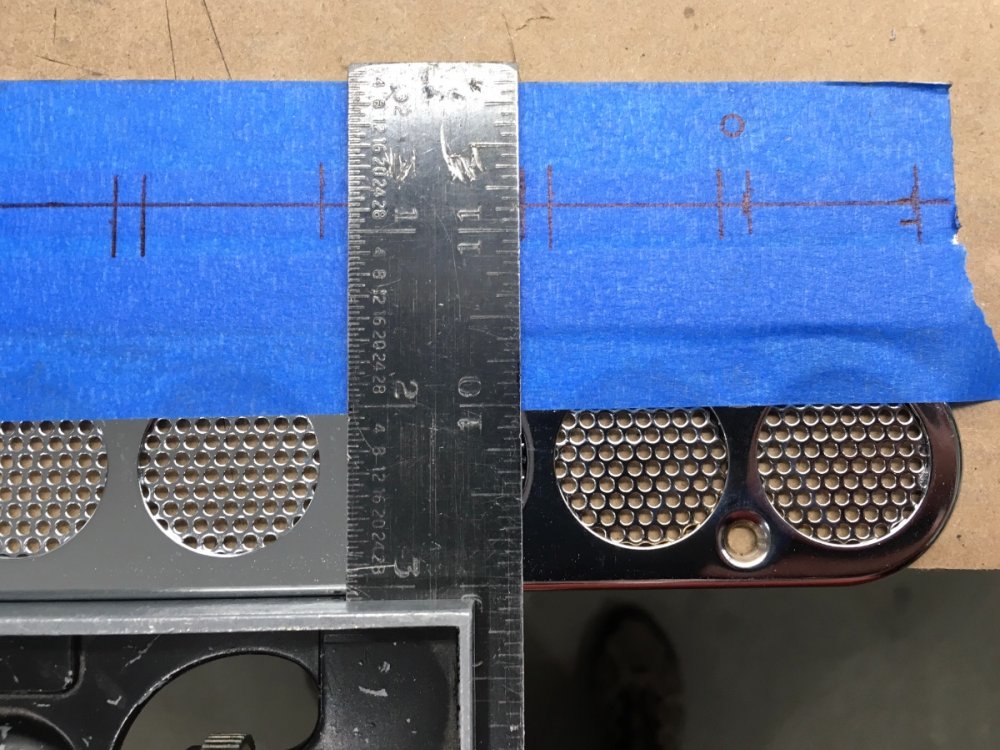

Make a template - there are  a lot of holes to drill:


The 4 mounting holes can be sized for 1/8" rivets (not recommended) or number 6 sheet metal screws. Choose the correct size for your fasteners! I chose screws.

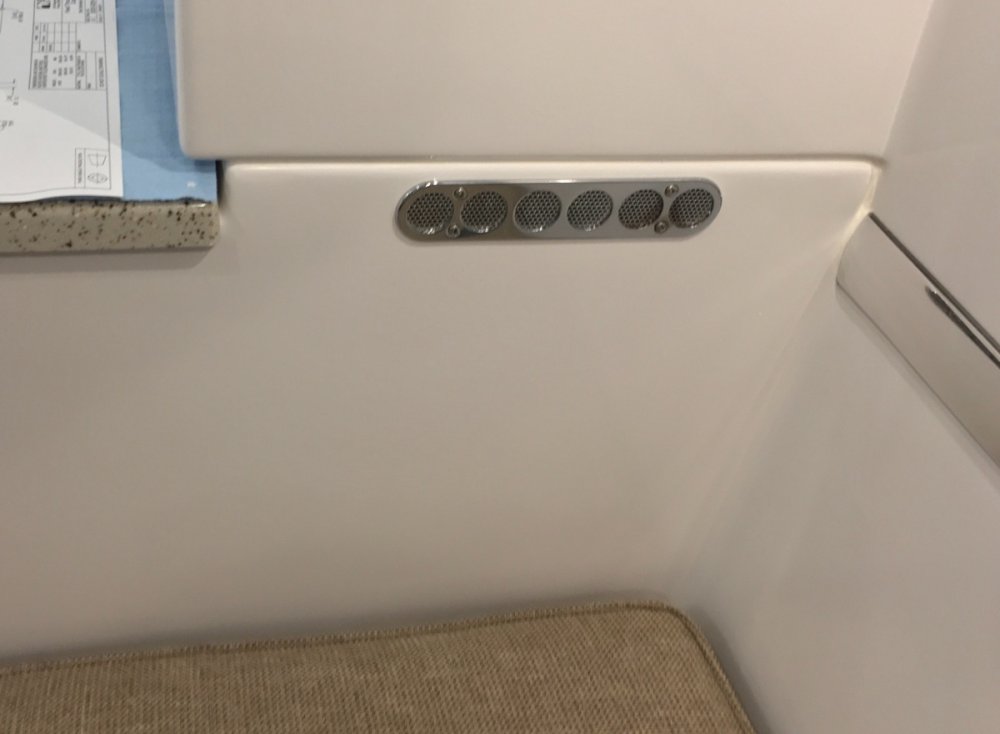

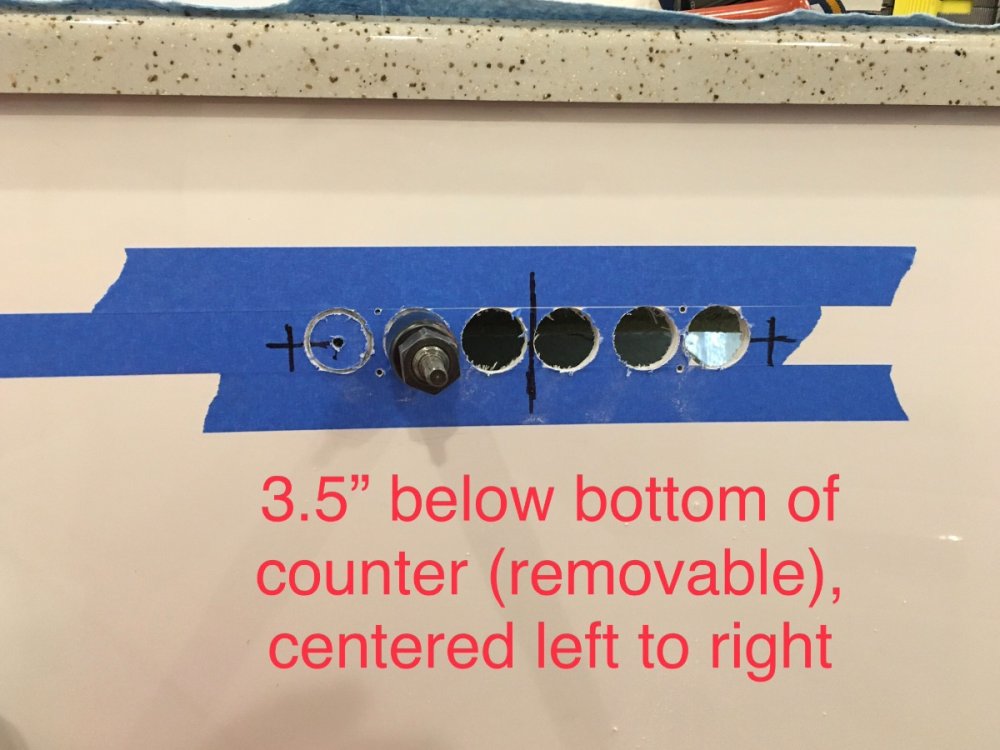

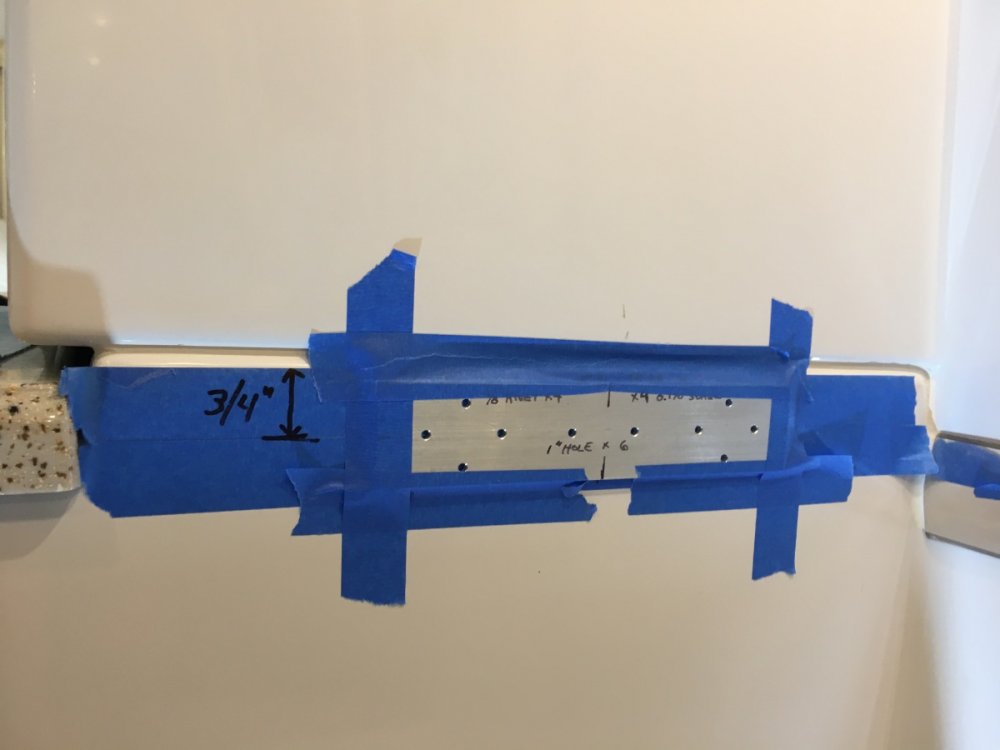

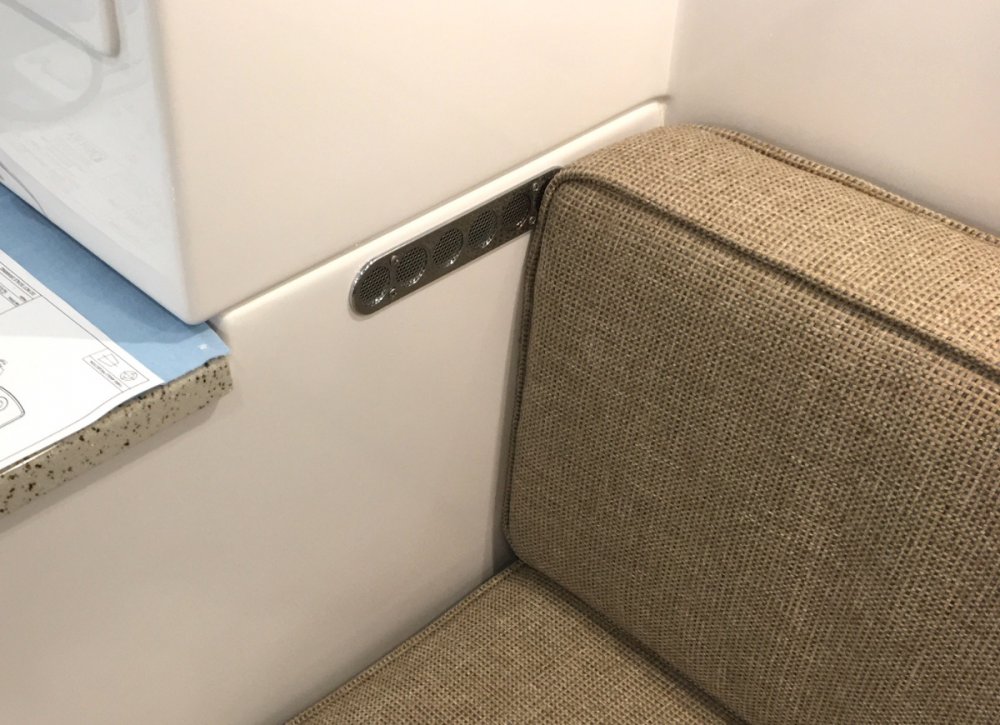

The front and back vents go here:

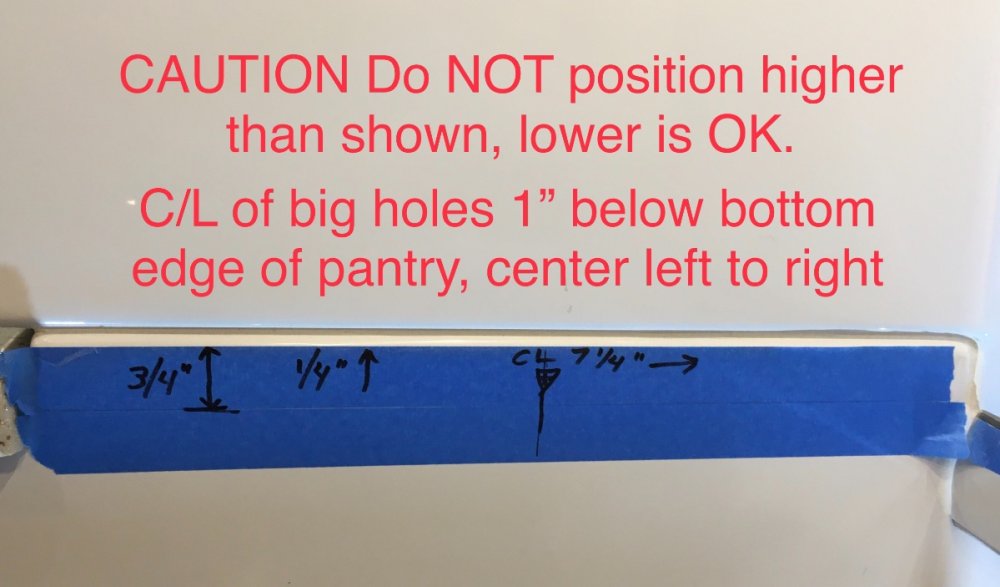

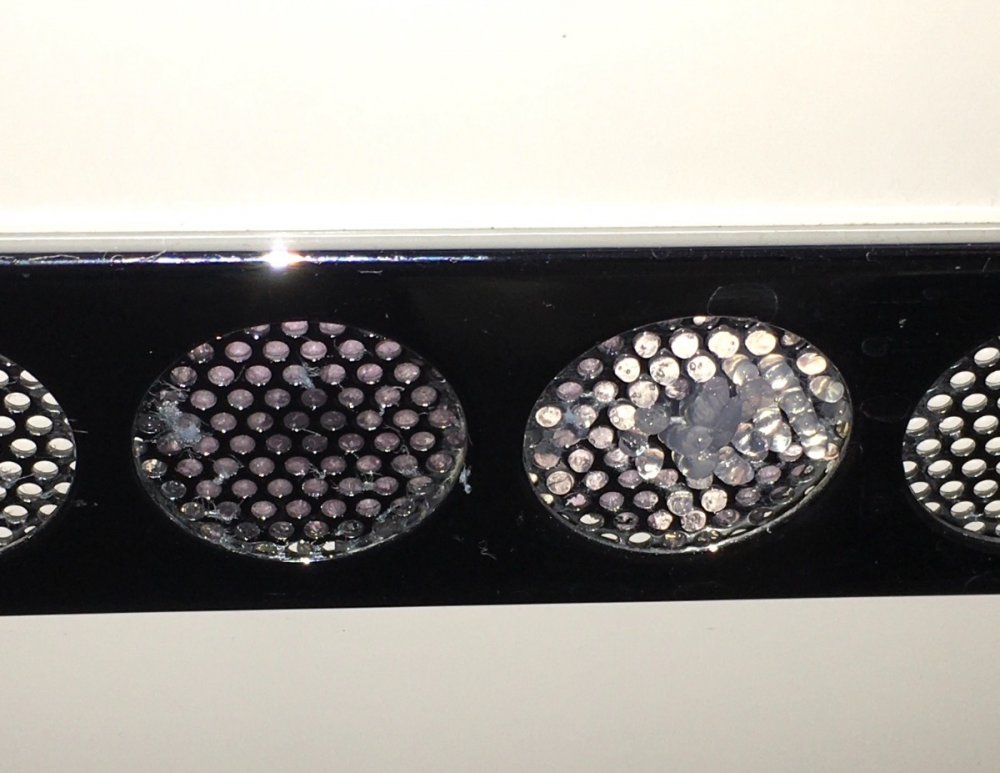

You will be staring at these for a long time, so be very sure the holes are perfectly straight, measure thrice, cut once. Don't use a bubble level, measure up to the joining line.

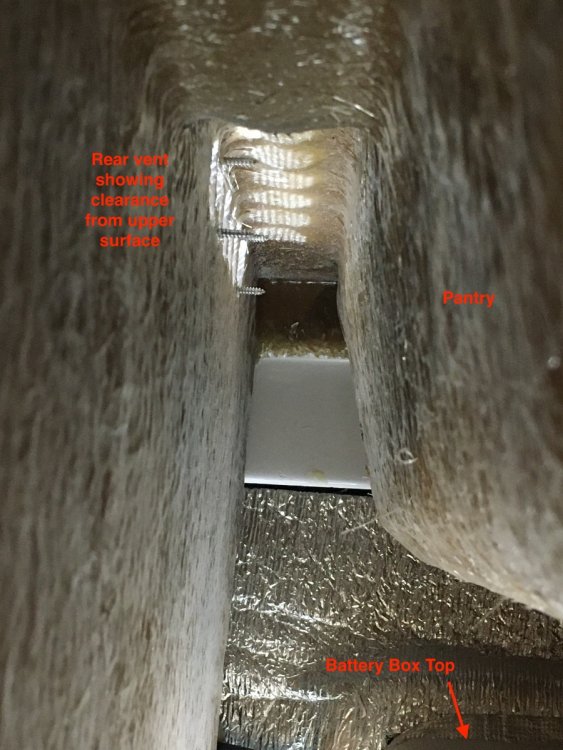

Here is the reason you can't position it higher:

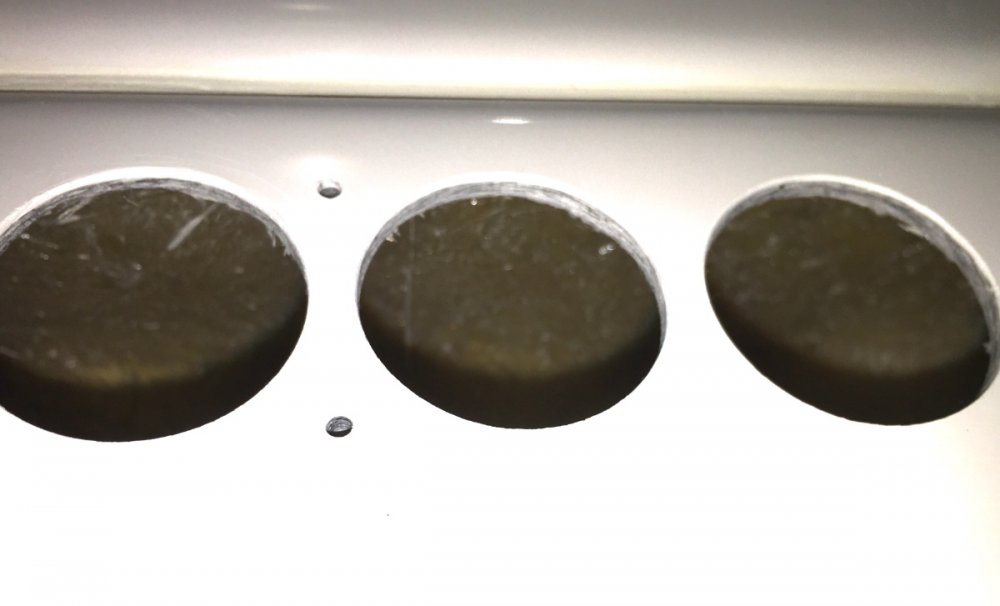

Deburr the holes CAREFULLY with 80 grit sandpaper (wear gloves or you will drive glass shards into your fingers), do not scratch the surrounding gelcoat!!!! Install the Perko cover. Repeat these steps for the rear wall. The optional factory granite countertop keeps the seat cushion slightly away from the wall in this position. If yours does not have the optional ones, the front vent will be blocked with the cushion as shown here..



Here is a view inside the compartment, looking back at the INSIDE of the rear vent. Notice you cannot position it higher or the screws will not clear the top:


The third vent goes in the center of the inside wall, directly below the pantry shelf. Having three vents means that one blocked vent (a pillow for example) will not significantly affect the airflow.

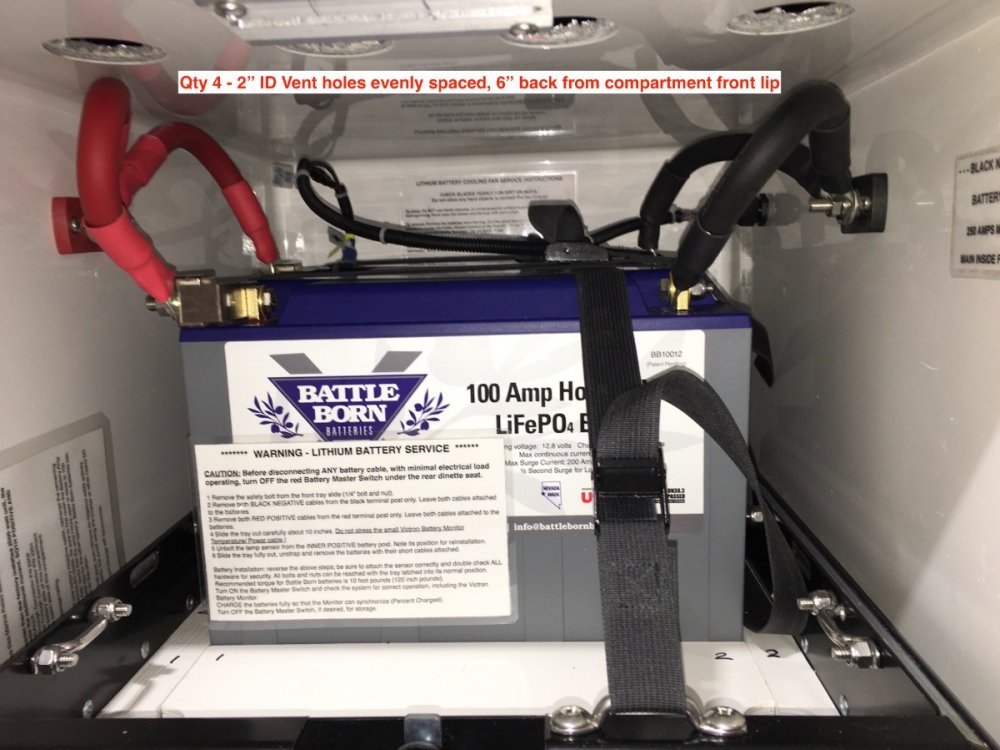

Finally, there need to be holes in the TOP of the battery box, to let air out from that space. Since I mounted a fan in the bottom, at the very back, I chose to place them in front, so air would move below and across the batteries, leaving no "still air" pockets. All other openings in the box should be sealed with heavy aluminum tape or a similar product.

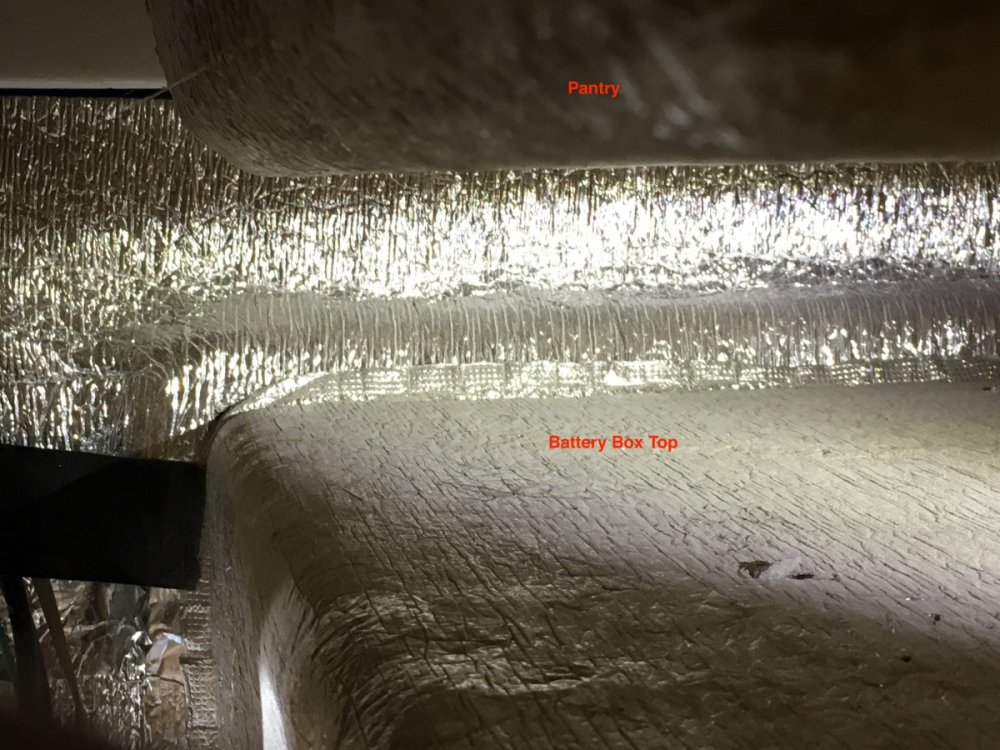

There is plenty of space on top of the box for air movement:



John Davies

Spokane WA

  • Thanks 1
  • Like 3

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

Battery box intake vents.

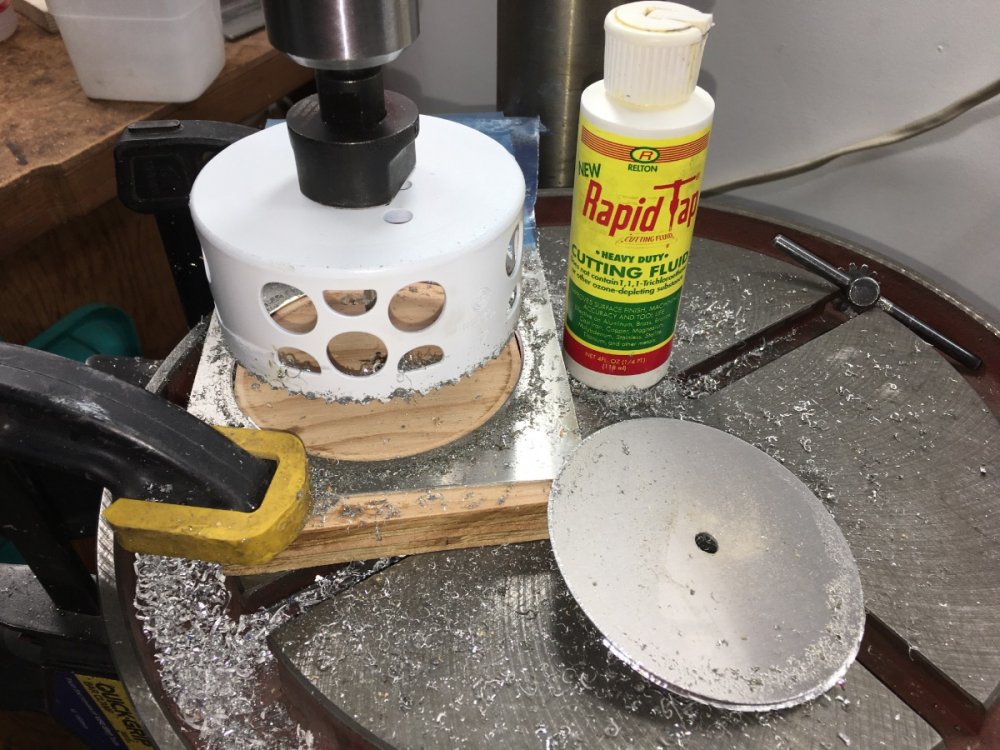

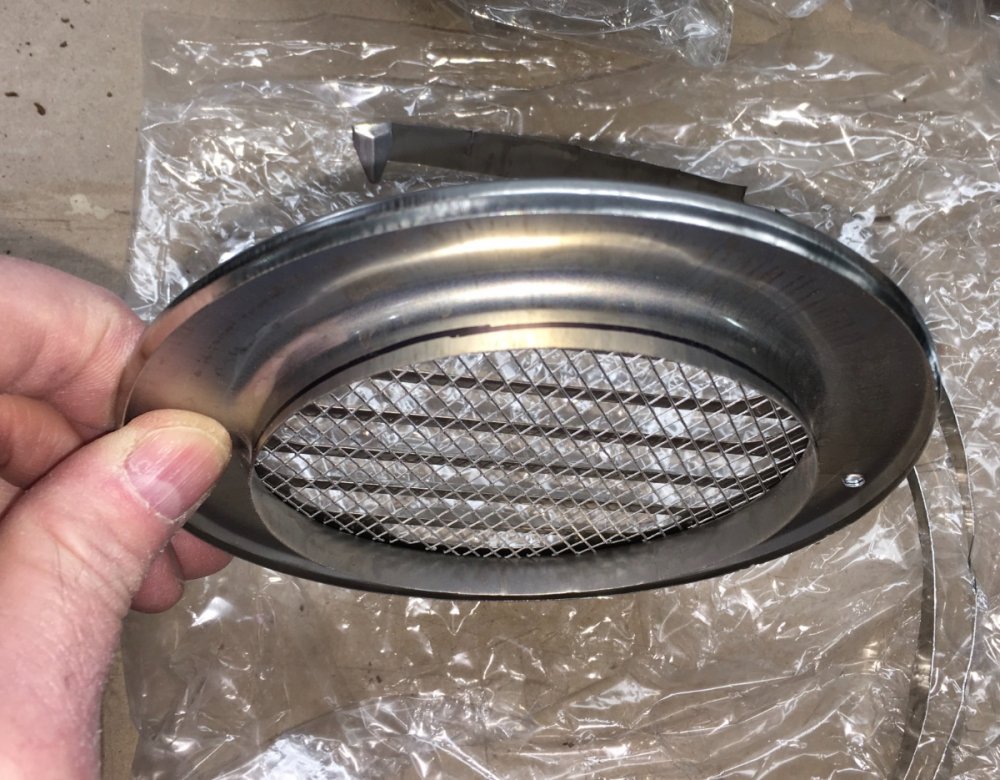

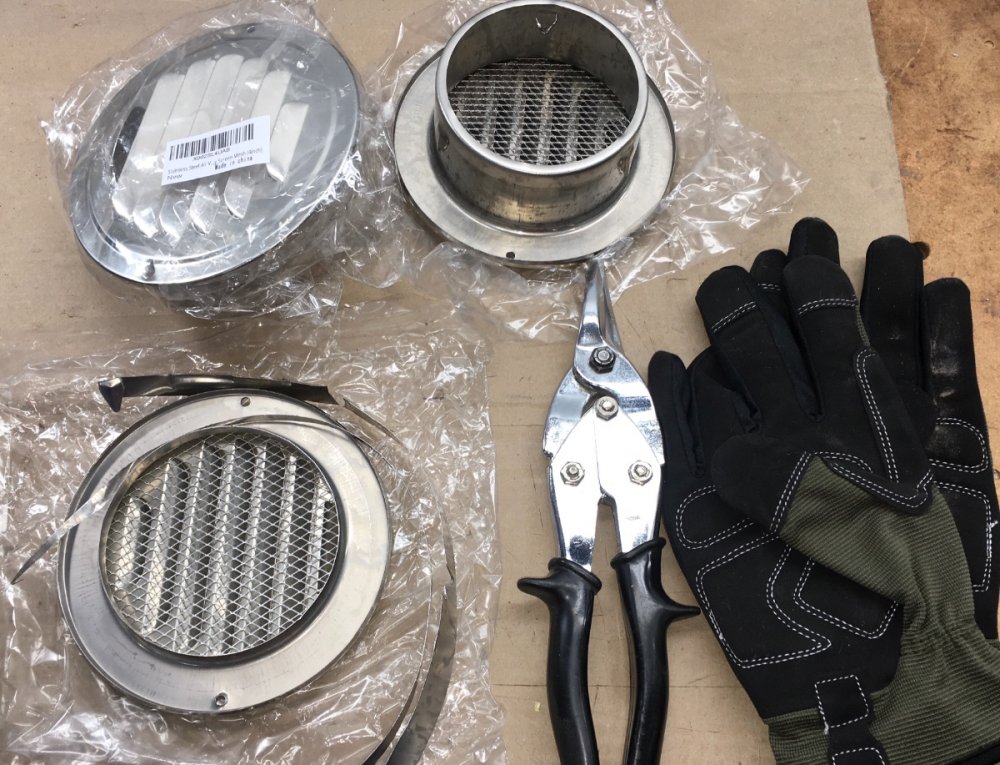

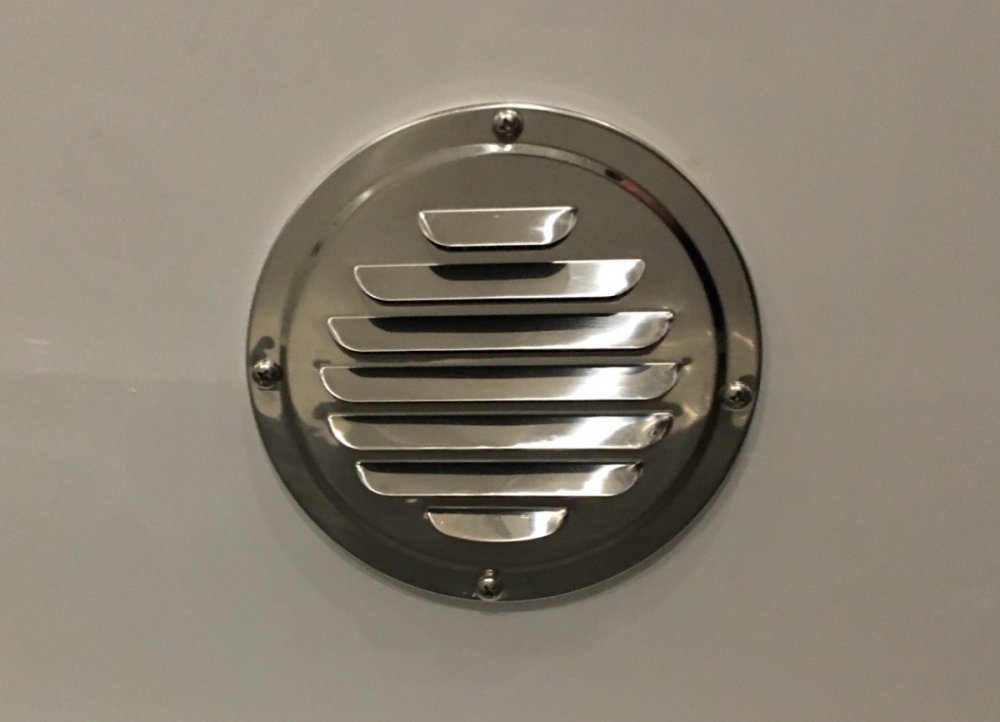

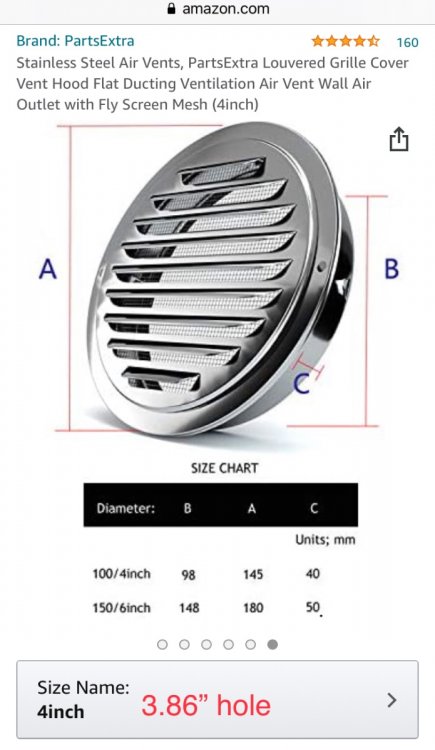

Originally I wanted aluminum louvered vents, so I could paint them white to blend in, but the ones I bought turned out to be way too flimsy. They would have been destroyed by a wayward kick. I ended up with these and am fairly satisfied. They are sturdy and very pretty. Unfortunately they need trimming and the addition of two more mounting holes, so they would pull down tight and flat. Drilling stainless is possible, a drill press makes it less frustrating. It requires a lot of pressure on the bit.

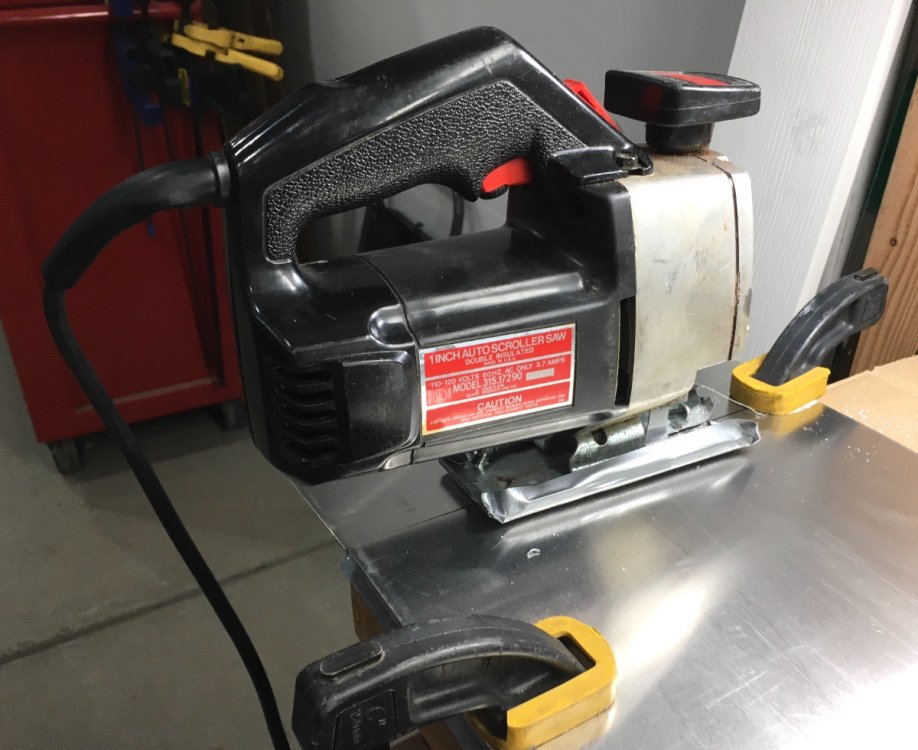

Use a 4" hole saw or a jigsaw to cut the holes in the fiberglass. I placed one under the rear bed and one under the rear dinette seat, centered front to back and up/ down. The center is approximately 9 " off the floor.





Even though sanded smooth, the edge was pretty dangerous, so I used 1/4" split loom to protect fingers. I added a blob of silicone on each protruding screw tip.


In the future I plan to add third vent at the bottom of the closet door opening.

John Davies

Spokane WA



Edited by John E Davies
  • Like 4
  • Love 1

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

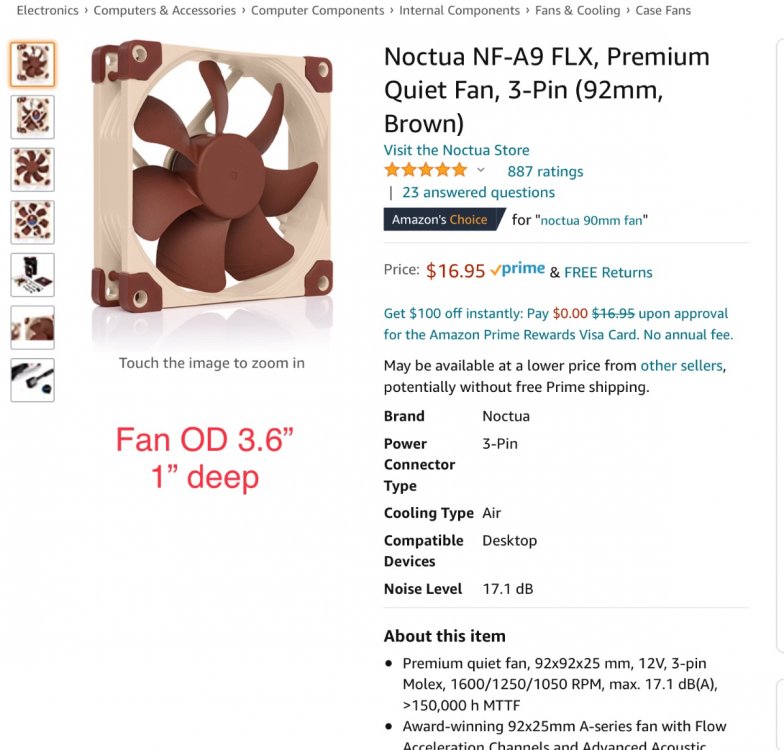

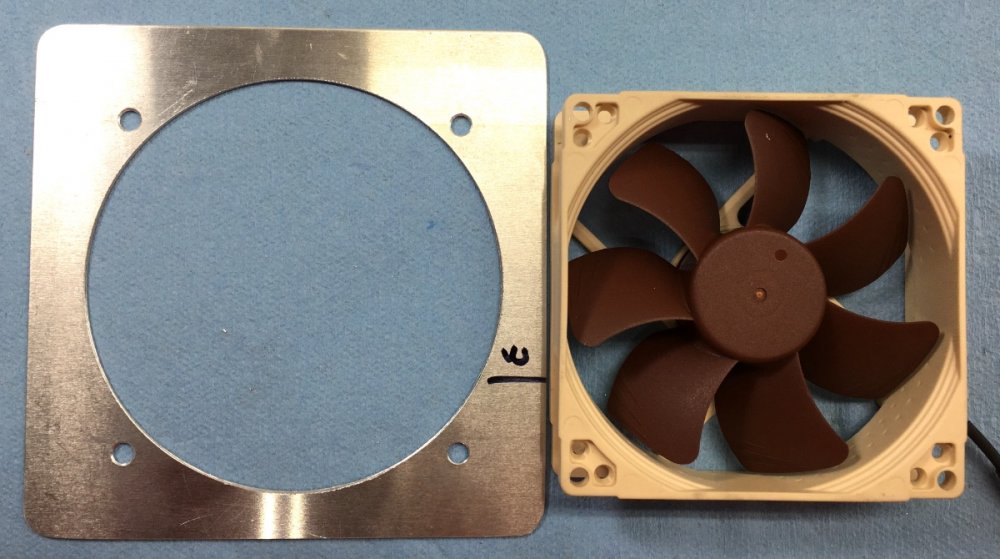

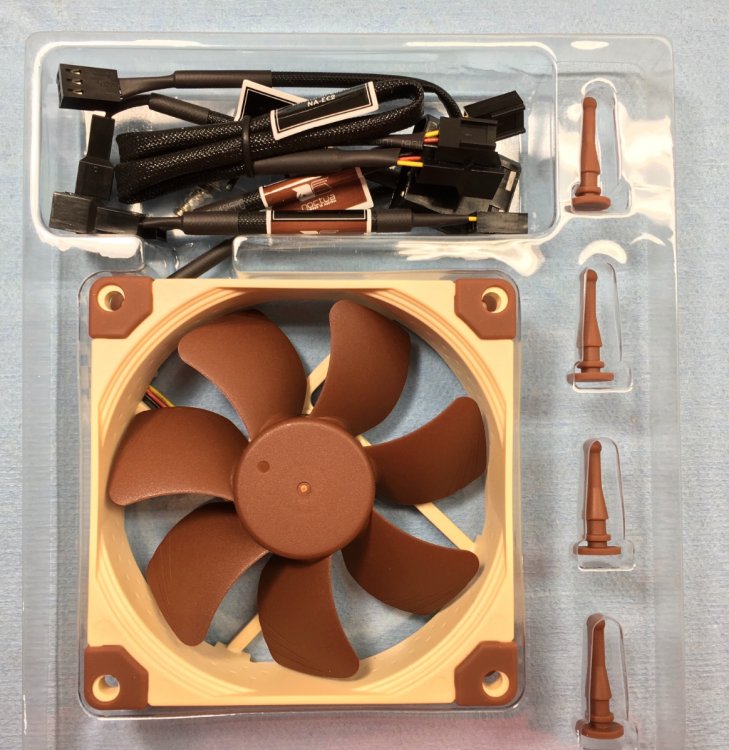

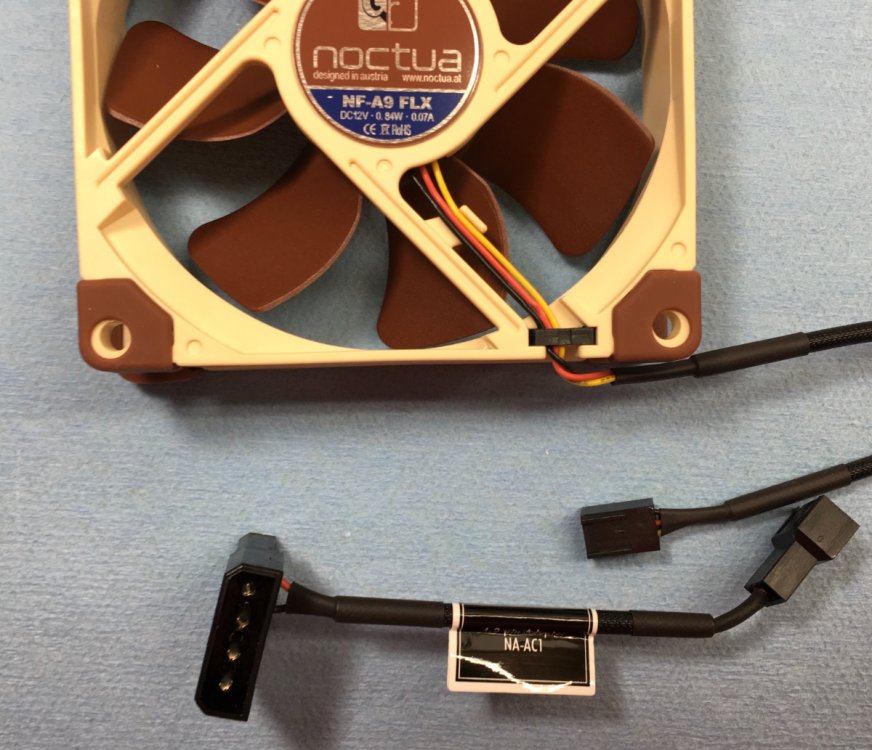

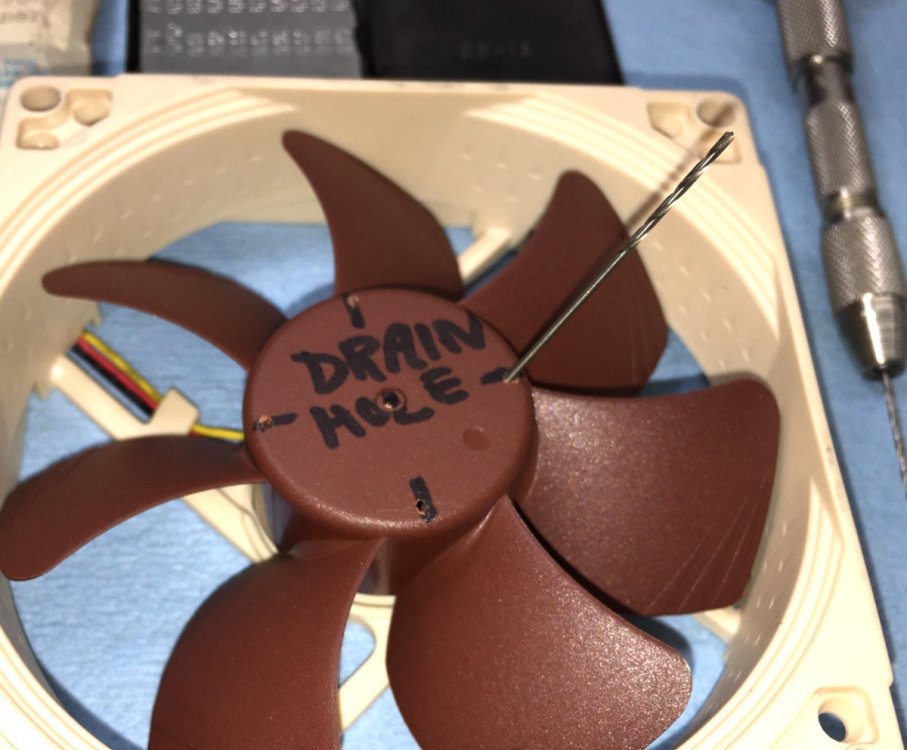

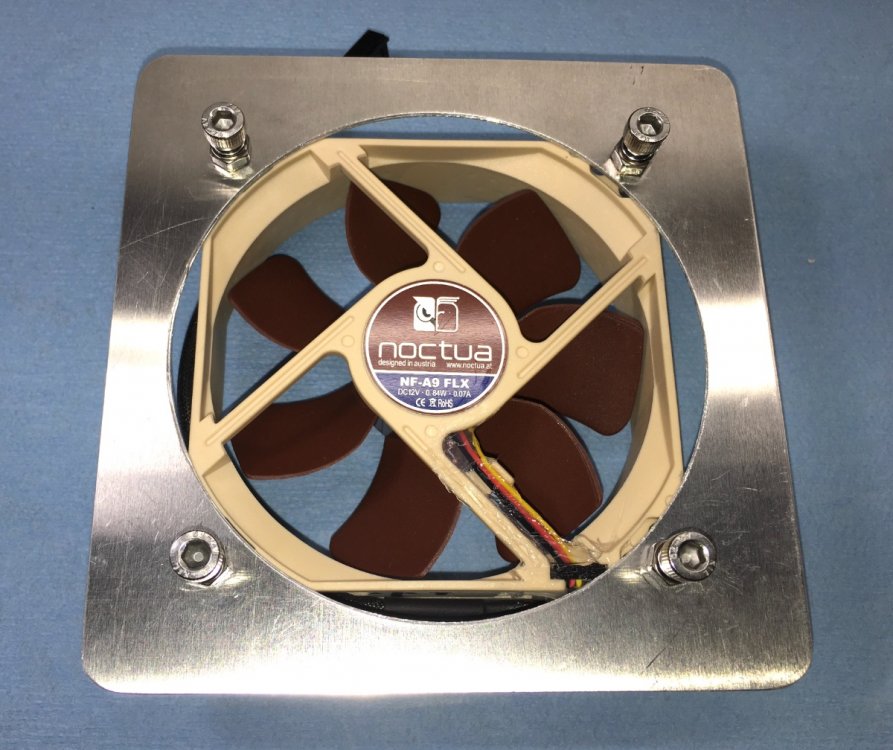

Battery box cooling fan. This one is high quality and well regarded. It has sealed ball bearings and uses just 70 milliamps (0.07 amps), so it can run as long as needed. Flow rate is 38 cfm on high, they supply two dropping resistor harnesses if you want to slow it down to reduce the sound level. It is pretty quiet, though a light sleeper on that side of the trailer might want to turn it off at night. But it is “white noise” which sometimes you do want.....




Noctua Fan

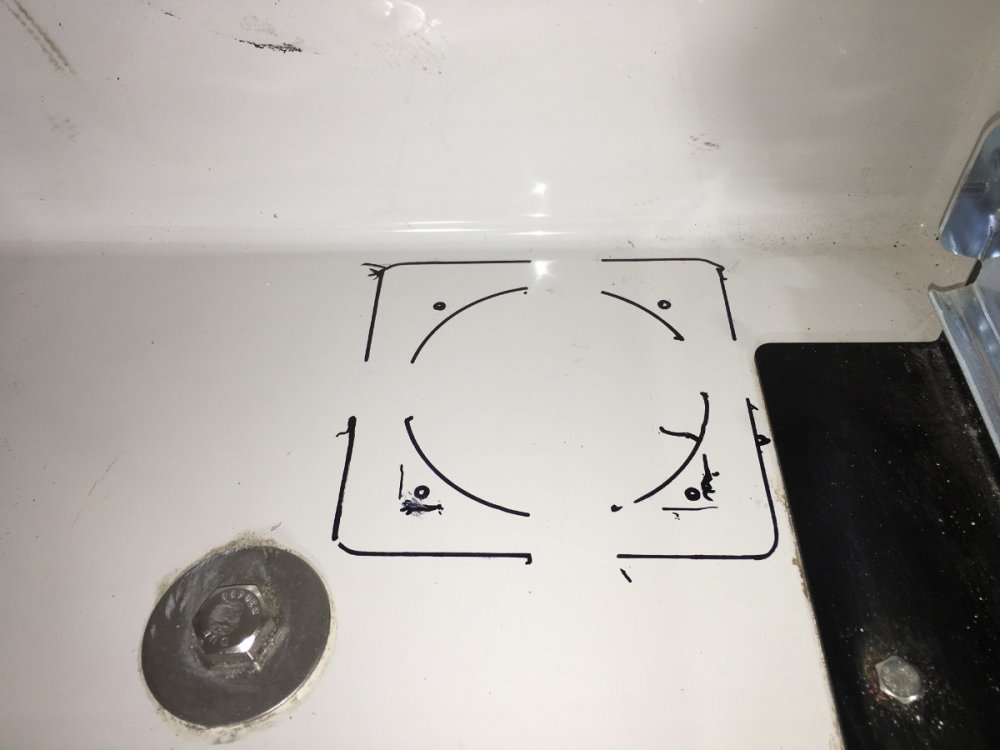

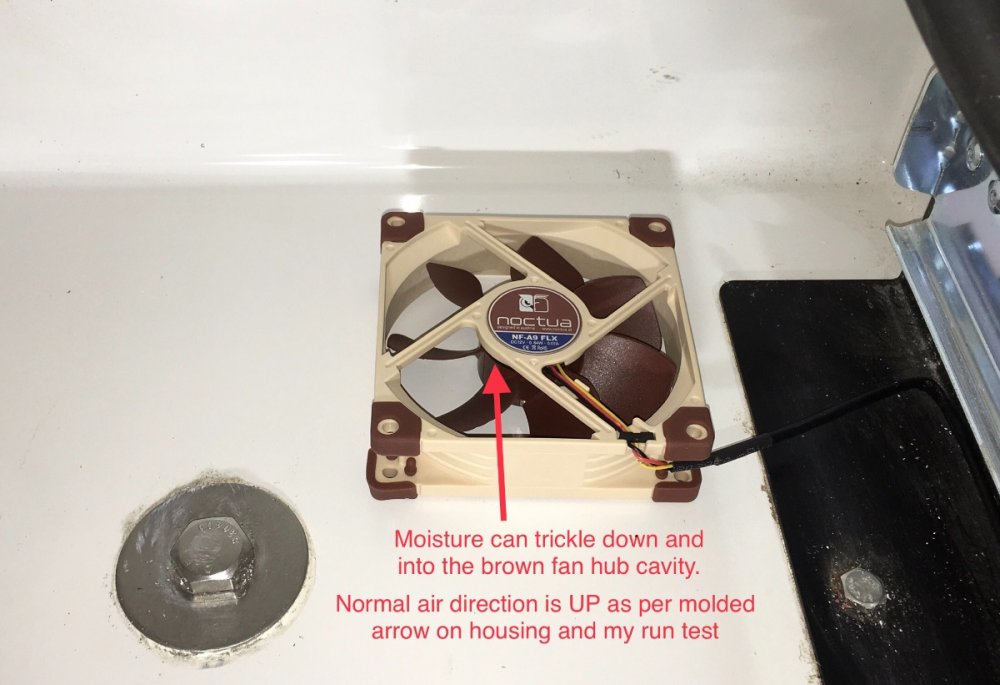

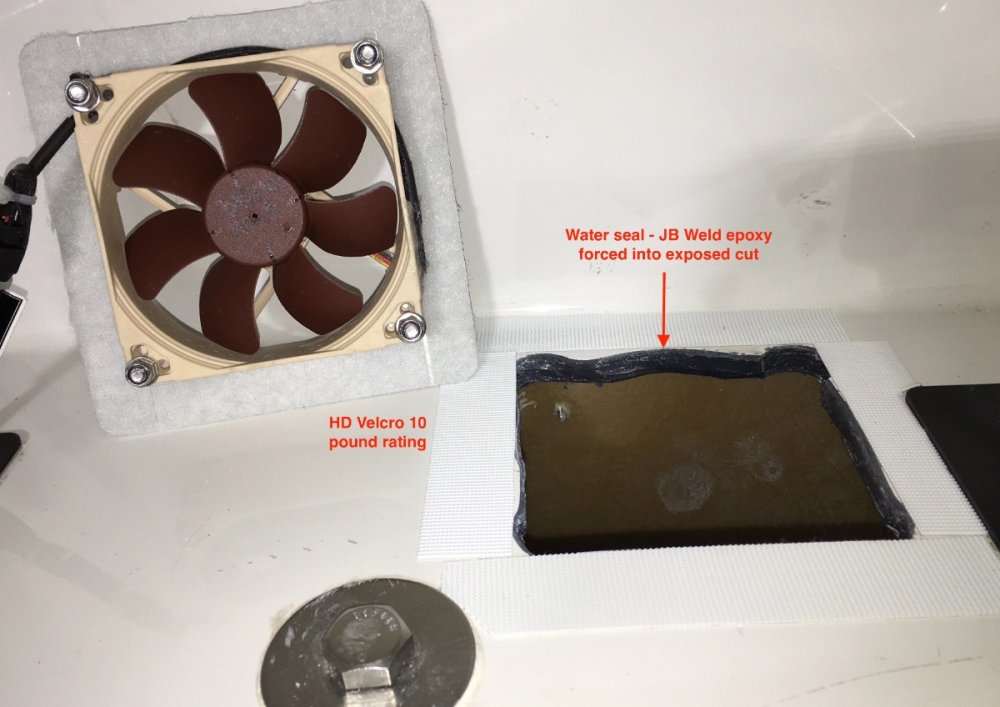

I really wanted the fan to go in the bottom at the rear wall, so it was centered between the two electronics compartments. The problem is that the floor of the box is not fiberglass honeycomb as I thought, rather it has a hard (6061?) 1/8" aluminum diamond plate bonded in the center! So cutting a large opening was a challenge. If you have access to a scroll saw (pivoting head) it is easy enough. Otherwise, choose to locate the fan at the bottom edge of the rear wall instead! That is thin (1/'8") fiberglass.

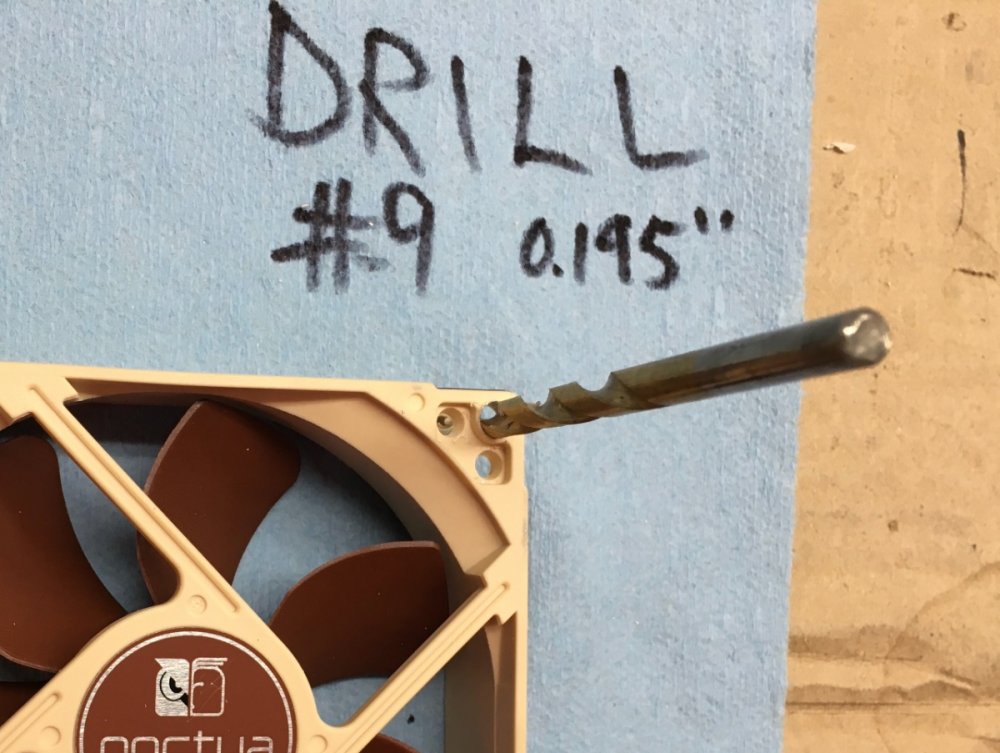

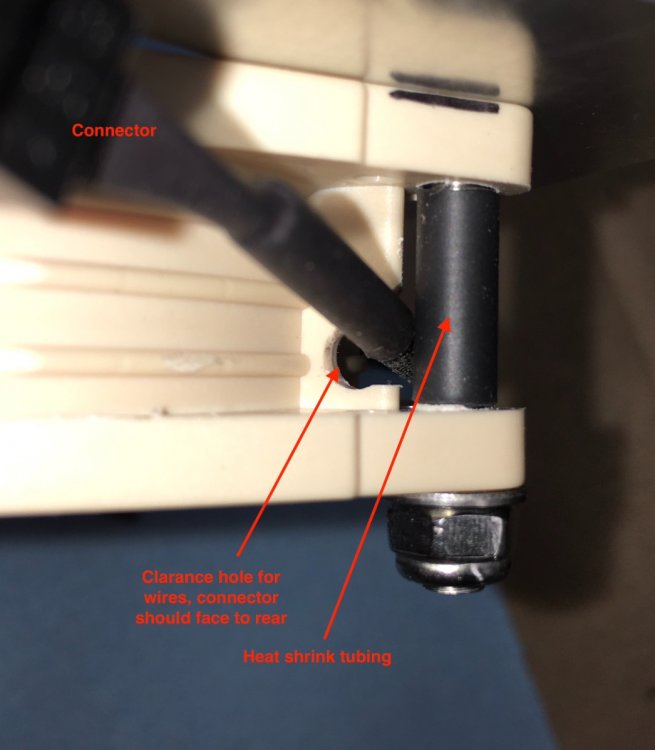

Screws are 5mm, and are double nutted so that the heads will stick up enough to use as "grab handles", for servicing:



John Davies

Spokane WA

Edited by John E Davies
  • Thanks 1
  • Like 4

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

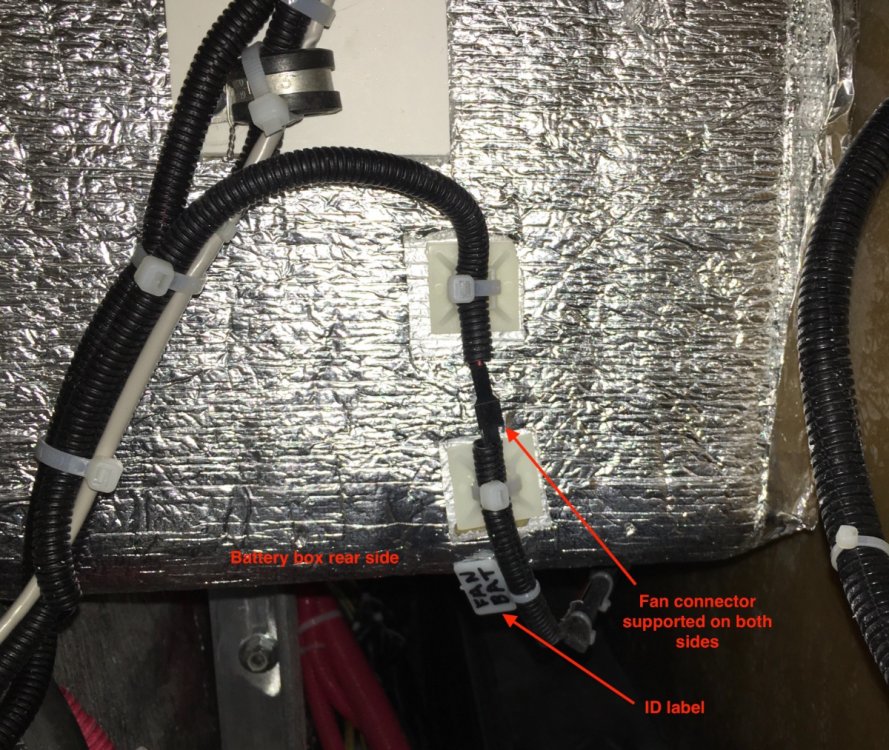

Battery fan wiring and switch.

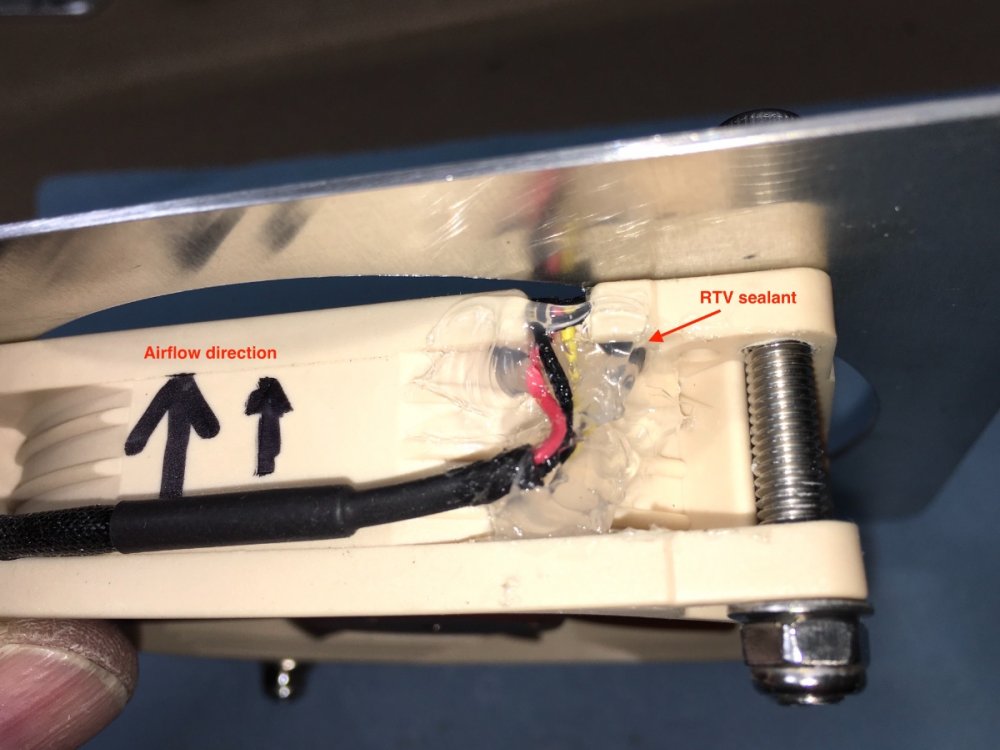

I used the supplied adapter cable and simply cut its 3 pin connector off and butt spliced the wires to a new 18 AWG red/ black wire pair. I secured the connector at the bottom of the battery compartment wall, forward of the inverter:

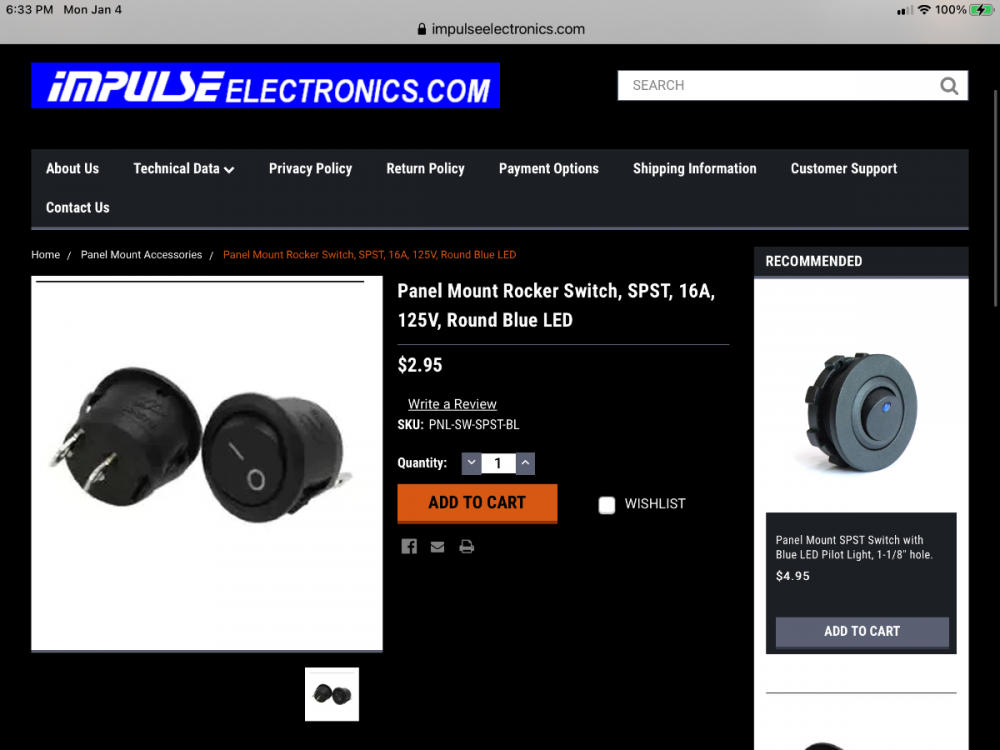

Power comes via a 1 amp inline fuse connected to the rear DC bus. I mounted a switch next to my Victron BMV-712 Smart battery monitor display, below the pantry counter top. An additional ground wire is needed if the switch has an LED (this one is blue, to match the Victron backlighting):

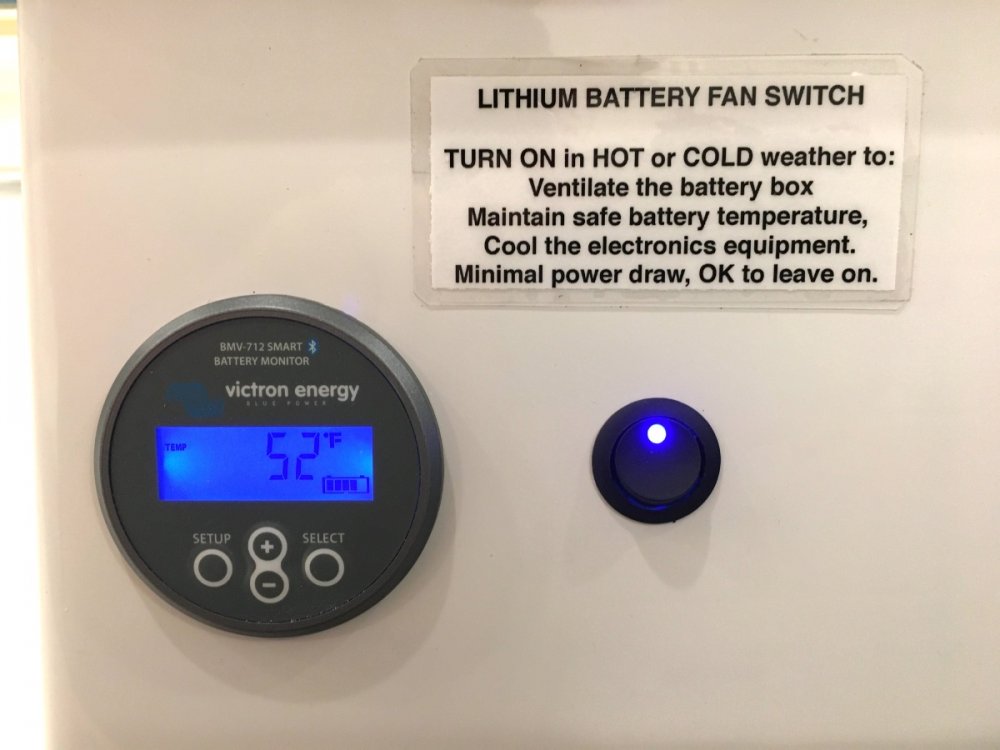

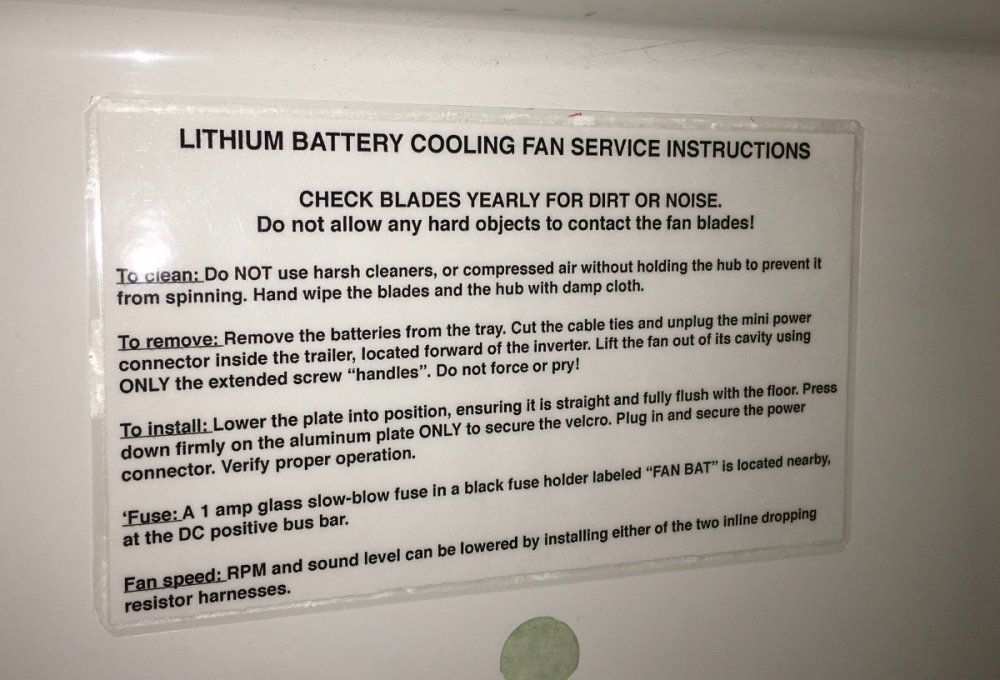

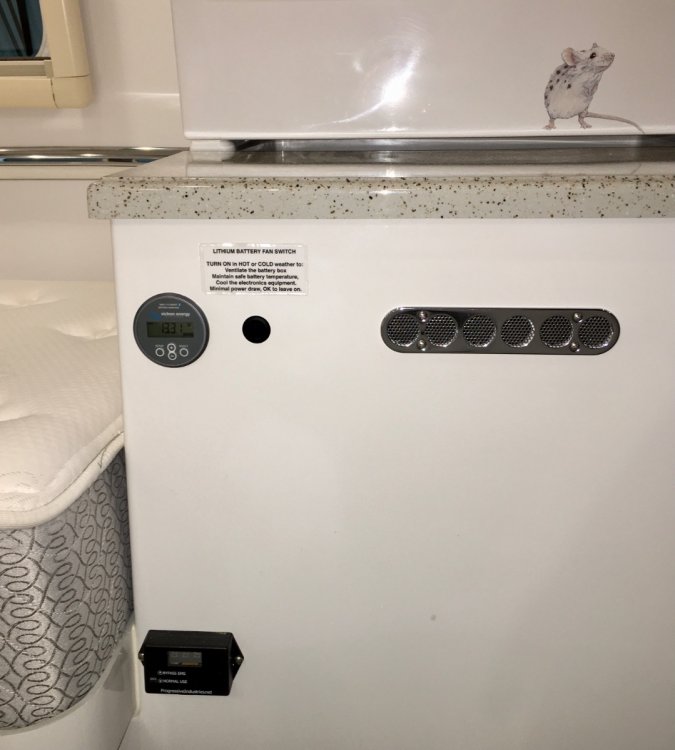

Finally, an instruction placard for a future owner or an RV service tech. This is laminated and taped on the rear wall of the battery compartment, and a copy is in the Owners Manual:


John Davies

Spokane WA

Edited by John E Davies
  • Like 4

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

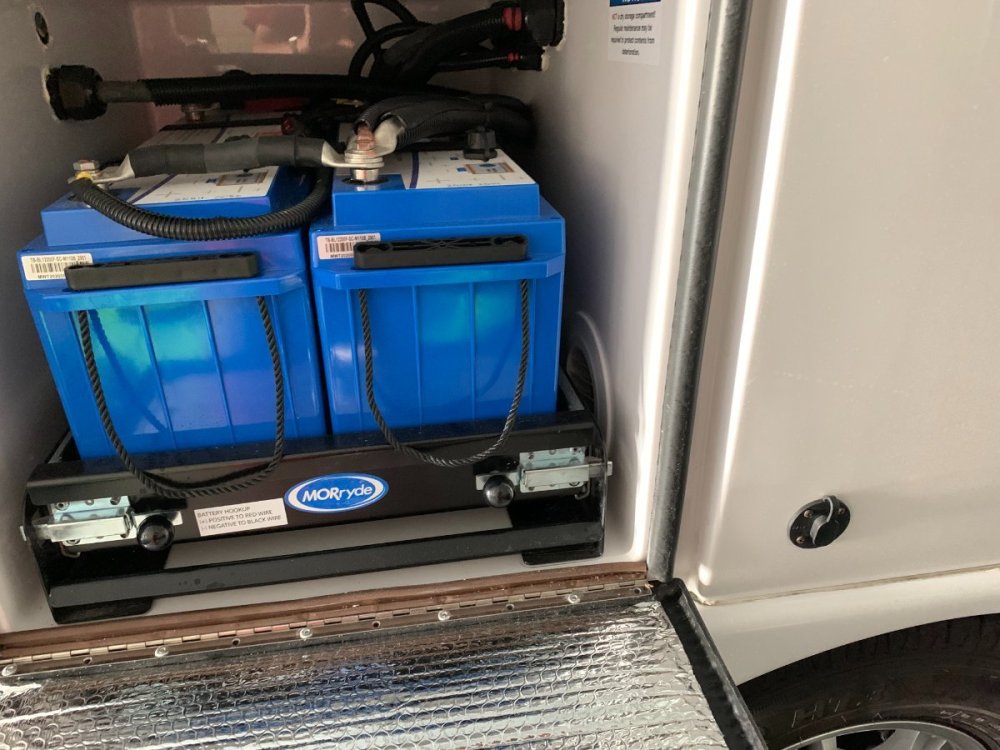

Battery door - plug holes and add insulation. This did not work out well, I am not very satisfied with the results, but I will post pics anyway. Maybe somebody can suggest a better solution. 1/2" foam board would be much easier to fit, but the insulation value is not so good.

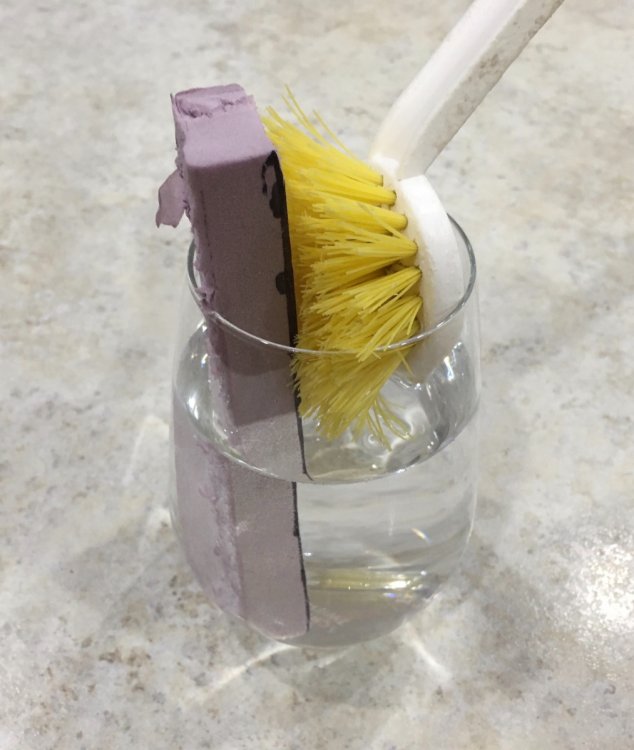

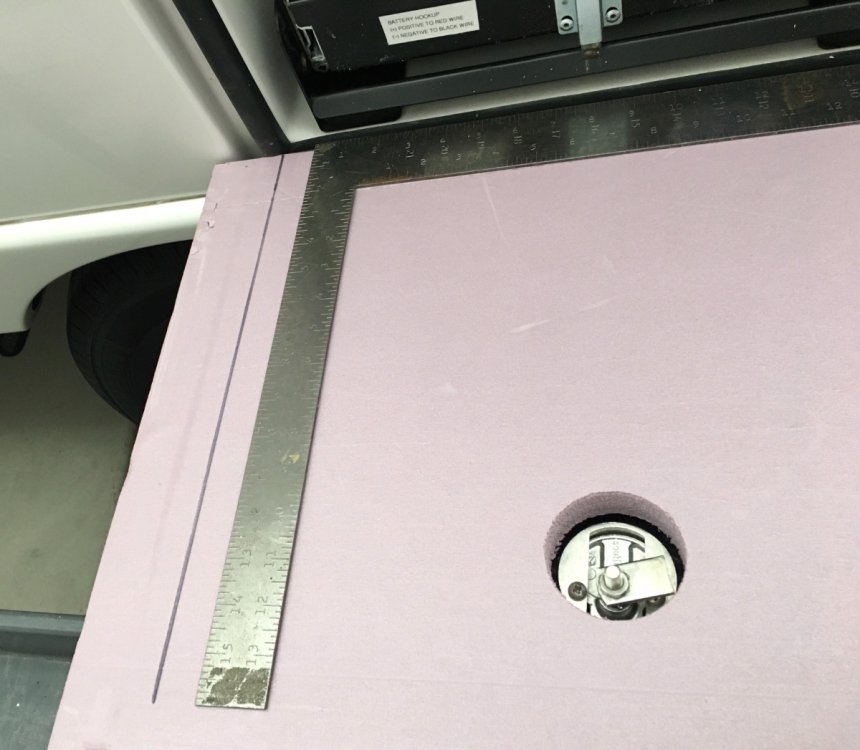

The material is Dow Corning rigid foam board, 1 inch thick, which weighs essentially zero pounds. This stuff is incredibly light. $20 for a 4' x 8 ' sheet at Home Depot. It is fire retardant, which is important. For comparison, this is R-5 (insulating value) whereas a typical foil/ air bubble sheet, which is used extensively in an Ollie, is R-1.

https://www.homedepot.com/p/Owens-Corning-FOAMULAR-150-1-in-x-4-ft-x-8-ft-R-5-Scored-Square-Edge-Rigid-Foam-Board-Insulation-Sheathing-20WE/207179253

It can be cut easily with a VERY sharp razor knife, and rough edges can be rapidly sanded smooth and contoured with a bench top belt sander and coarse 80 gr belt. WEAR A MASK.  BTW it is indeed completely waterproof, I soaked a piece for 12 hours to make sure. I had to wedge it in place, it pops out like a cork otherwise:

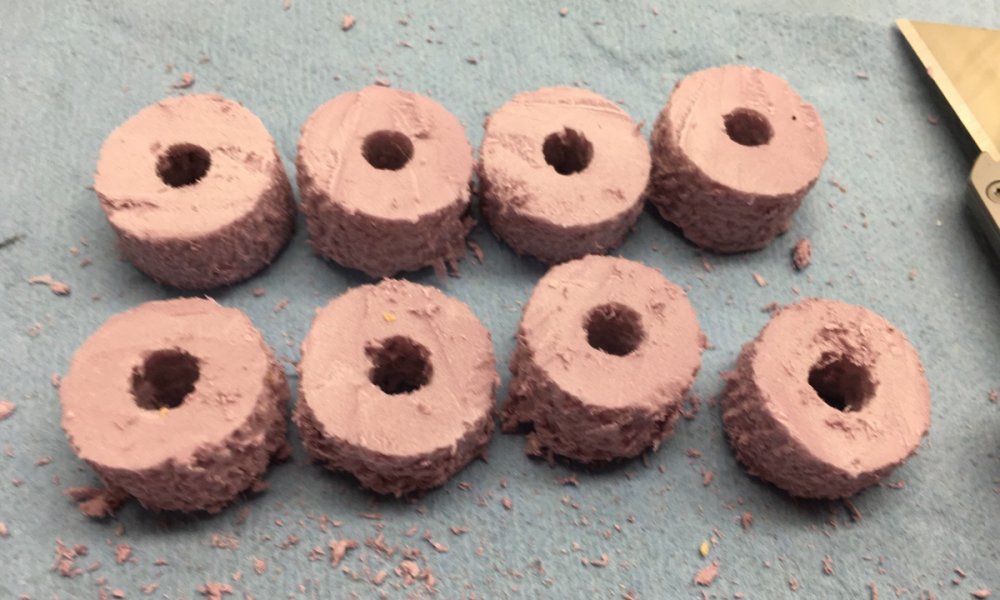

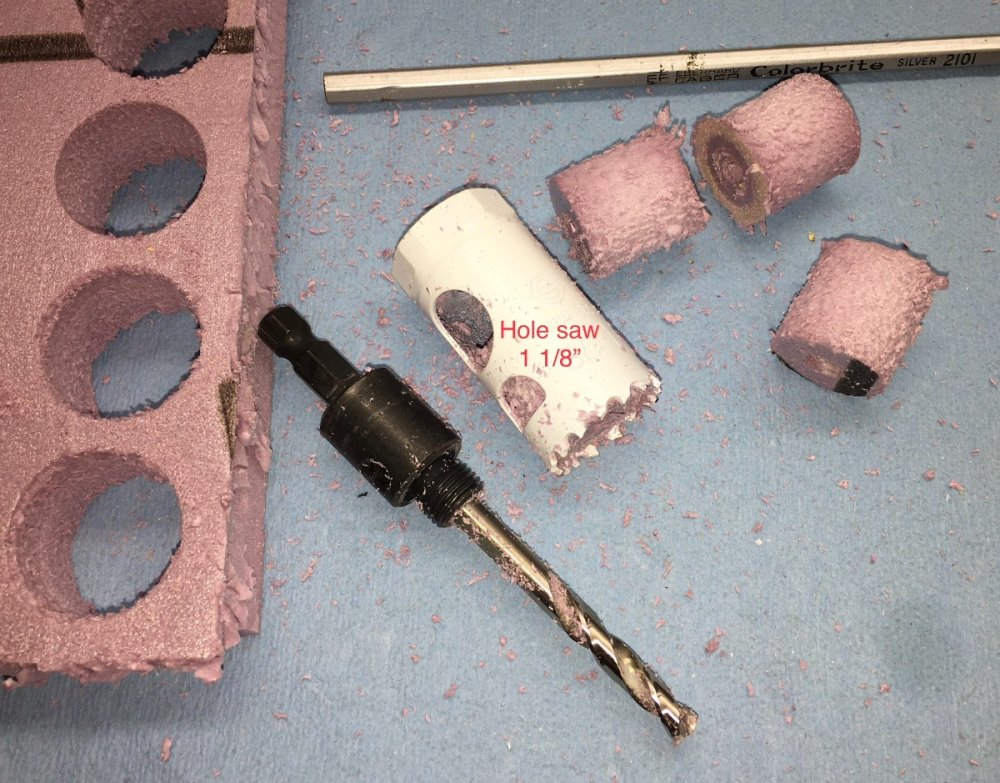

Cut four hole plugs to seal off the existing openings. (My door has 8 holes, yours may vary.)


Cut them in half:


Glue them into the holes with clear RTV sealant, some will squirt out through the front Perko vents. Remove that excess with alcohol and paper towels:


Wait at least a full day and then trim off the excess foam and sealant flush with a razor blade:


SUPPORT the door with something, a 30 inch high rolling work table fit perfectly, and it gave me a nice place to put tools and materials... Remove the support cable. Cut the foam. This is pure trial and error, because it has to fit past the rubber seals, and also have extra material removed to clear the battery tray and knob, and the support cable, and the lumps and bumps on the door itself. Take your time, trim a little, test the fit, trim some more. It should fit as closely as possible, for maximum insulation value, yet allow the door to close easily without stressing it.

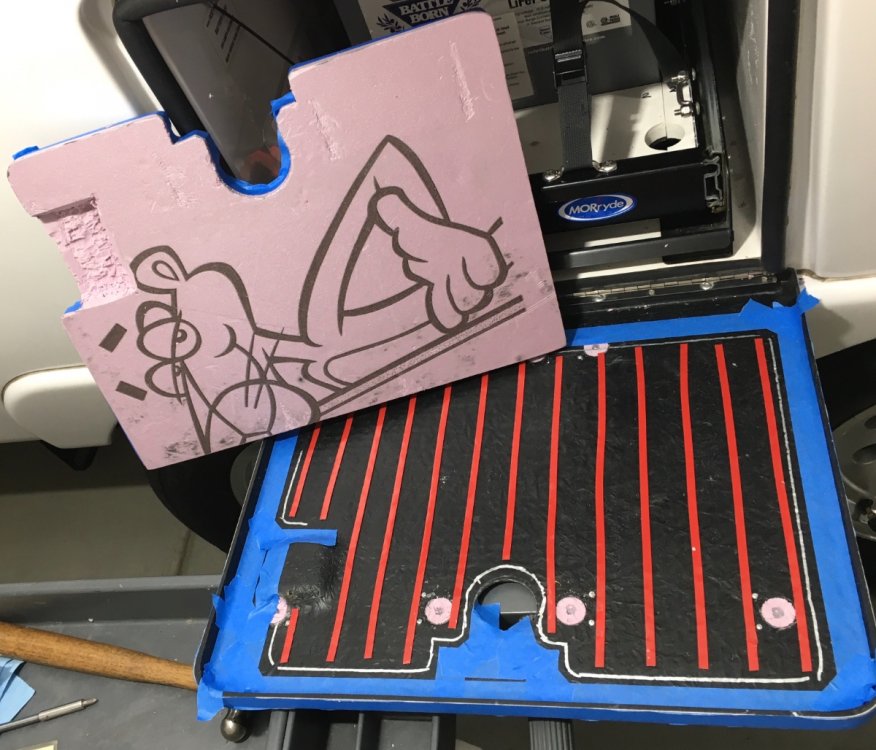

I used a router bit in a drill press to carefully carve out areas that needed clearance. Be sure to allow some room for rivet tails! When you are satisfied with the fit, clean and smooth the parts and use 3 M VHB tape to secure it to the door. I used 1/4" wide tape placed vertically, so any water leaking past the rubber seal will drain straight down.


Add some weight and go take a long break:


Remove any weights or clamps. Seal the edges with clear RTV sealant. Use tape as shown to leave clean lines. Reattach the support cable. BTW when trimmed as shown in the top pic, the airflow from the fan underneath the tray is not blocked.

EDIT: Leave several small gaps in the sealant at the inside (bottom edge when closed) so moisture can drain out.

John Davies

Spokane WA

Edited by John E Davies
  • Thanks 2
  • Like 4

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

Wow - amazing engineering and work as usual!  I have a feeling many of us will be trying something similar once Summer rolls around.  This is obviously not an easy mod to pull off.  This will help tremendously even if the design varies a bit due to differences in the Ollies.  What don't you like about your insulation on the door?  I would have to say it's way more insulated than the rest of the Ollie, so I think it may not be a problem.  Thanks!

  • Like 1

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

John, thanks for the kind words, the pink stuff just looks dorky and crude, I suppose it could be covered completely in heavy aluminum tape. but it would be tricky and time consuming to completely cover all the openings and cutouts. Plus it is soft, and susceptible to dents. I don’t know of an affordable material that would function better. Of course, I will probably be the only person to see it, and the next owner can take it out if it is too pink.... It should work very well at blocking heat transfer from direct sunlight. It will be interesting to see what kind of temps are shown on my monitor, and what effect the fan will have when turned on in inclement weather.

John Davies

Spokane WA

  • Thanks 1
  • Like 1

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

The temperature data I've been collecting strongly suggest that I need to figure something out with the battery box like you did.  My target is to keep the box in a sweet spot of 60F - 80F if possible.  Given this limited range, I'm convinced that leaving the battery box door sealed and insulated is mandatory.  These Lithiums are just like humans when it comes to temperature I guess!  🙂

Here's my preliminary design:

Conditioned air intake:  A 4" duct vent under the street side bed and another 4" duct vent in the battery box right above the street side wheel well.  There's plenty of room for 3.75" holes in both places to install the ducts.  Between the vents I'm planning on using a 4" duct paired with an inline smart fan (yes, I like smart fans!) to pull conditioned air from the cabin and push it into the battery box.  The smart fan will fit nicely right on top of the wheel well and can run anywhere from 28 cfm to 280 cfm.  It also has a thermostat to provide some automation.

Battery box exhaust:  I am not planning on exhausting the battery box directly back into the cabin.  I have another 6" smart fan under my forward dinette seat to move air slowly or rapidly between the entire basement and the cabin if necessary.  Additionally, if I leave the fan pushing conditioned air into the box running long enough it will be pushing conditioned air into that basement area and surrounding electronics.  I'm also thinking of using a bunch of smaller holes in the battery box to exhaust the air rather than just one or two bigger holes.  For example, a 3.75" diameter input is ~11 square inches of area, so if I use 1.5" diameter holes (1.75 sq. in. area), I would need ~6 holes to provide adequate exhaust area.  So I was thinking of drilling the 6 smaller holes in somewhat random places on the front and back sides of the battery box, hoping that would give some good cool air mixing in there.

I'm wide open to suggestions, constructive criticism, or any other things to consider that I missed.  Especially @John E Davies since you have already thought through and executed on your design.

Thanks!

  • Like 2

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

Nice work John. How is the rest of you conversion going?

I thought I read on one of the new Li manufacturers sites that the temp window has expanded - hi and low.

In the end - is the conversion worth the trouble - I wonder.

RB

  • Like 3

Cindy,  Russell and  "Harley dog" . Home is our little farm near Winchester TN

2018 Oliver Legacy Elite II - 2018 GMC 2500 Duramax

"Die young - As late as possible"
ALAZARCACOFLIDMTNVNMOKORTNTXUTWAWYd56201









Link to comment
Share on other sites

NCeagle, I think your design would work fine, though I would personally be really really reluctant to rely solely on a powered fan. I think it is important to have at least a little natural convective flow - warm air rises out the top, cooler air flows in down low. The space above the battery box is pretty much a dead end cave, while there may be a trickle of air going up between the hull walls, there is no place for escape for it up high, unless you drilled vents in the overhead cabinets.

So you need those openings into the cabin where the pantry box joins the battery box. You don’t necessarily need forced air.

John Davies

Spokane WA



  • Thanks 1
  • Like 1

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

3 hours ago, BackofBeyond said:

Nice work John. How is the rest of you conversion going?

I thought I read on one of the new Li manufacturers sites that the temp window has expanded - hi and low.

In the end - is the conversion worth the trouble - I wonder.

RB

RB, I am done, pretty much. I have been delaying posting some more threads because I do not want to look too eager 😬, plus it is very time consuming. If there is a particular subject you would like to see, let me know. I subdivided them - battery installation and straps, cable installation, Victron solar controller installation, etc. They are too complicated to do in one thread.

John Davies

Spokane WA

  • Like 1

"Mouse":  2017 Legacy Elite II NARV (Not An RV) Two Beds, Hull Number 218, See my HOW TO threads: https://olivertraveltrailers.com/topic/john-e-davies-how-to-threads-and-tech-articles-links/

Tow Vehicle: 2013 Land Cruiser 200, 33" LT tires, airbags, Safari snorkel.

Link to comment
Share on other sites

2 hours ago, John E Davies said:

NCeagle, I think your design would work fine, though I would personally be really really reluctant to rely solely on a powered fan. I think it is important to have at least a little natural convective flow - warm air rises out the top, cooler air flows in down low. The space above the battery box is pretty much a dead end cave, while there may be a trickle of air going up between the hull walls, there is no place for escape for it up high, unless you drilled vents in the overhead cabinets.

So you need those openings into the cabin where the pantry box joins the battery box. You don’t necessarily need forced air.

John Davies

Spokane WA



Thanks John.  I was thinking about a few more crazy options today.  One thing I've got in the back of my mind is that a loss of the fan and having the battery box heat up isn't a show stopper like not having backup heat would be (and having pipes freeze / break).  So, I still have a few months (at least) to think about it before we start seriously warming up here.  I'm not planning on super hot camping, but all I have is a big steel shed for the Ollie and it could get blistering hot in there over the summer.  My batteries are always on to run lights, toilet fan, etc.  If you get any data from your design, please let us know - like if you get the bug to head straight south soon.  🙂  Thanks again for reviewing my design and sharing your thoughts.  Very helpful.

  • Like 2

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

6 hours ago, BackofBeyond said:

In the end - is the conversion worth the trouble - I wonder.

That's the big question that we can't answer right now - Lithiums are too new.  So the way I'm looking at it is this...  had OTT offered me an option to have an "air conditioned" battery box for $150 or so, would I have done it?  Heck yes - considering I'm spending so much on these Lithiums.  So like you RB, I wonder too whether it's worth it - but I have this vision of Dirty Harry looking at me and saying "Do you feel lucky, punk".  😃  At some point, the cost does not outweigh the potential benefit of course.

My guess is that as Lithiums become status quo in travel trailers / RVs they will be located in air conditioned spaces as opposed to vented outdoor boxes used today.

Edited by NCeagle
  • Thanks 1
  • Like 2

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

  • Moderators
3 hours ago, NCeagle said:

guess is that as Lithiums become status quo in travel trailers / RVs they will be located in air conditioned spaces as opposed to vented outdoor boxes used today

I think so, too.

I'm trying to figure out what I'd have to give up,  in limited indoor space, to accommodate anything else beyond what we already have crammed in.

Or, seal the battery compartment,  and open it up to indoor space.

2008 Ram 1500 4 × 4

2008 Oliver Elite, Hull #12





Link to comment
Share on other sites

  • 9 months later...

Several folks expressed interest in seeing another design to keep the battery box temperatures moderated (for lithium batteries only!).  This is an alternative option to John Davies' design.   They are similar except that I chose to use a forced air closed system to moderate the battery compartment temperatures while John uses a combination of forced air and natural convection.

This ended up being my final design and it has been working very well since last April (2021).  My goal was to keep the sealed battery box as close to cabin temperature as possible (warmer in the winter and cooler in the summer - humidity controlled at all times, etc.).  I stuck pretty close to my original design except that I did end up venting back into the cabin, so essentially I am just re-circulating cabin air through the battery box.  It's a super-simple design and temperature and humidity sensors have proven this works as would be expected since this is a  "closed" loop system.

I do think this may be a bit difficult to follow unless you have had your head under the seats and beds, but here goes...

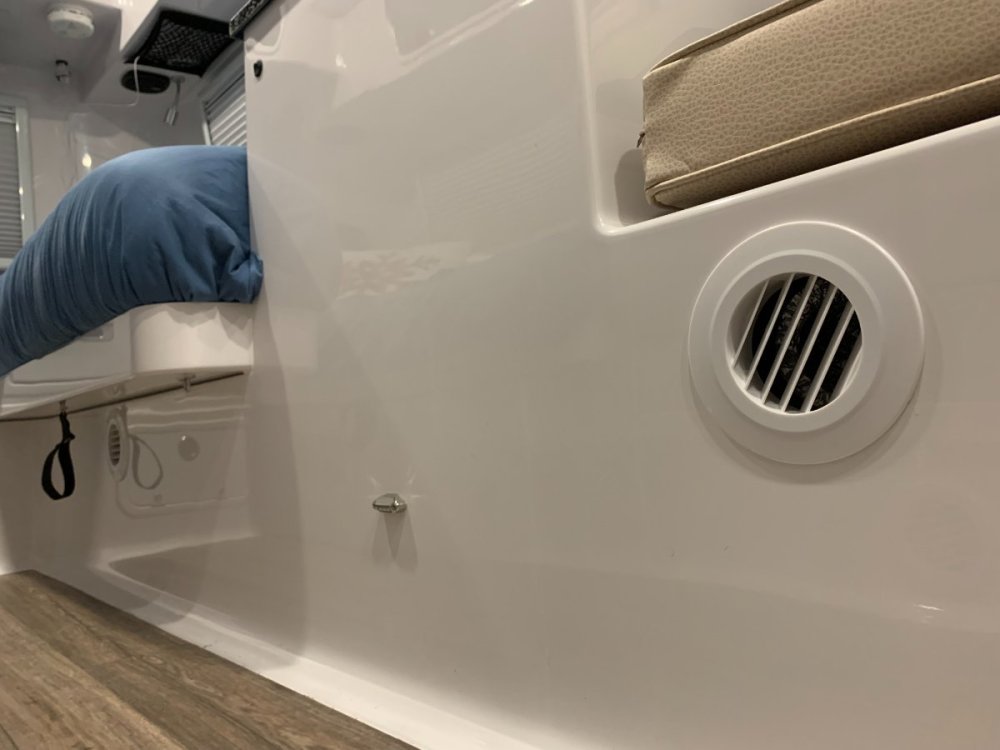

Here's a picture from the cabin that shows the 2 (finished) 4" vents used for intake (under the street side bed) and exhaust (under the aft dinette seat):


I'm going to start under the bed, which is the intake side in my design.  This photo shows under the street-side bed where I cut the 4" hole into the aft side of the battery box:

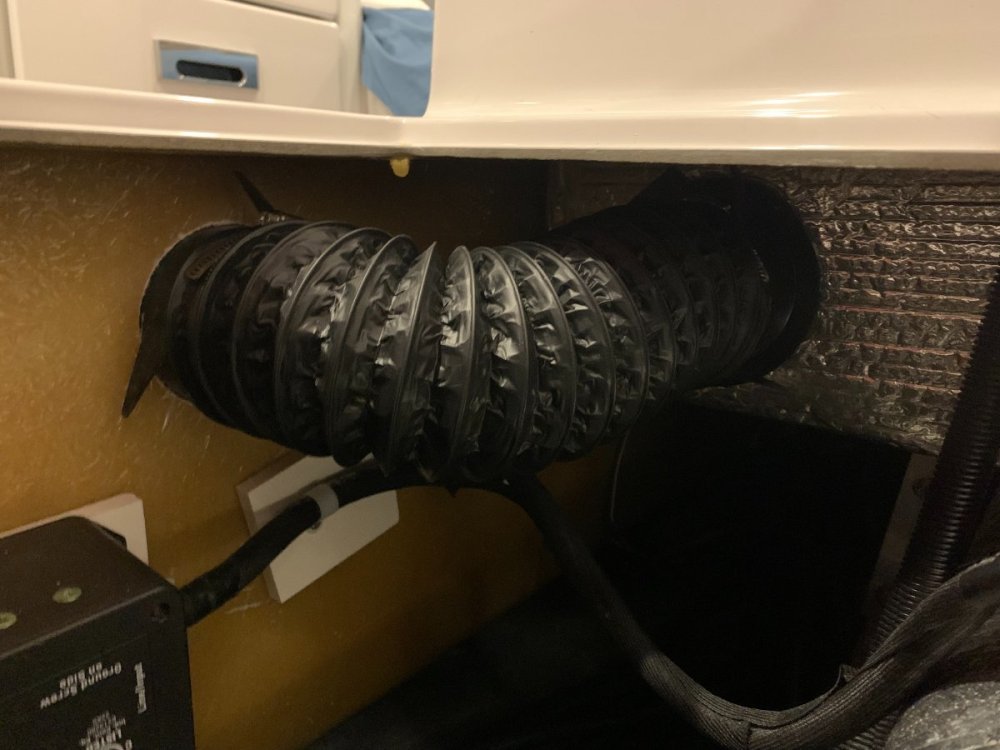

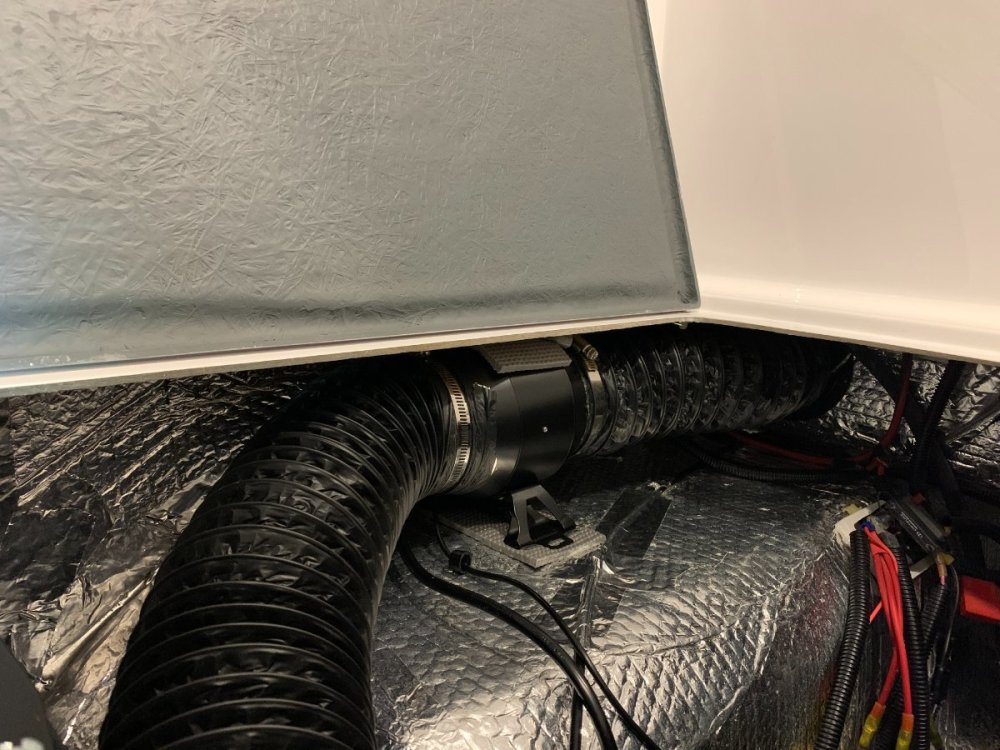

And this picture shows the installed ducting and smart fan under the street-side bed:

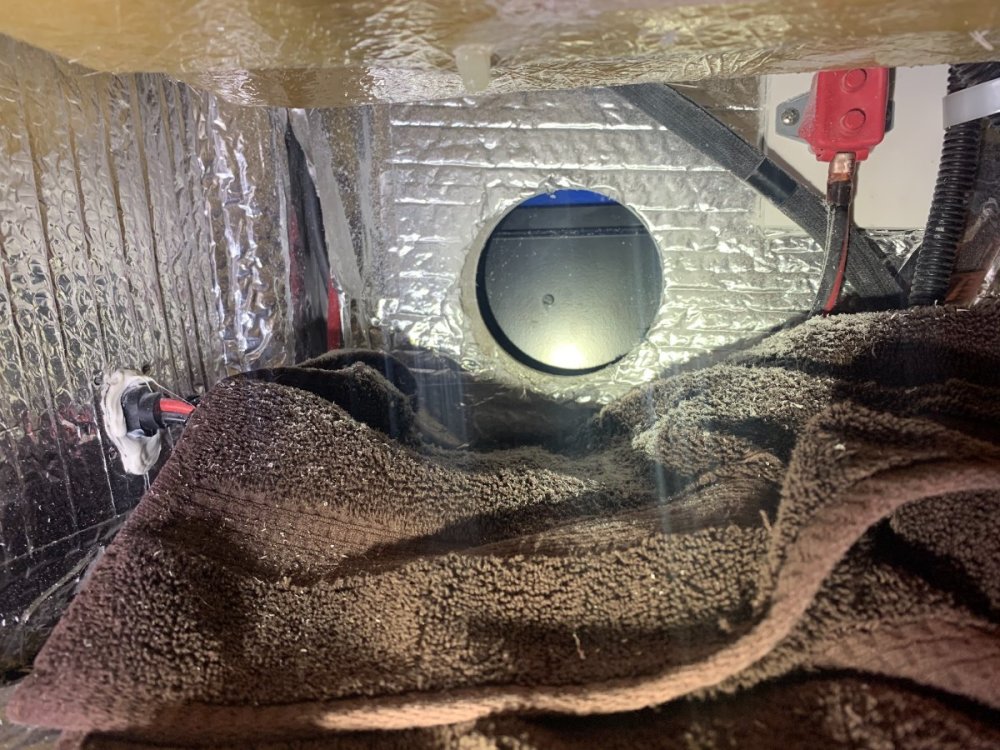

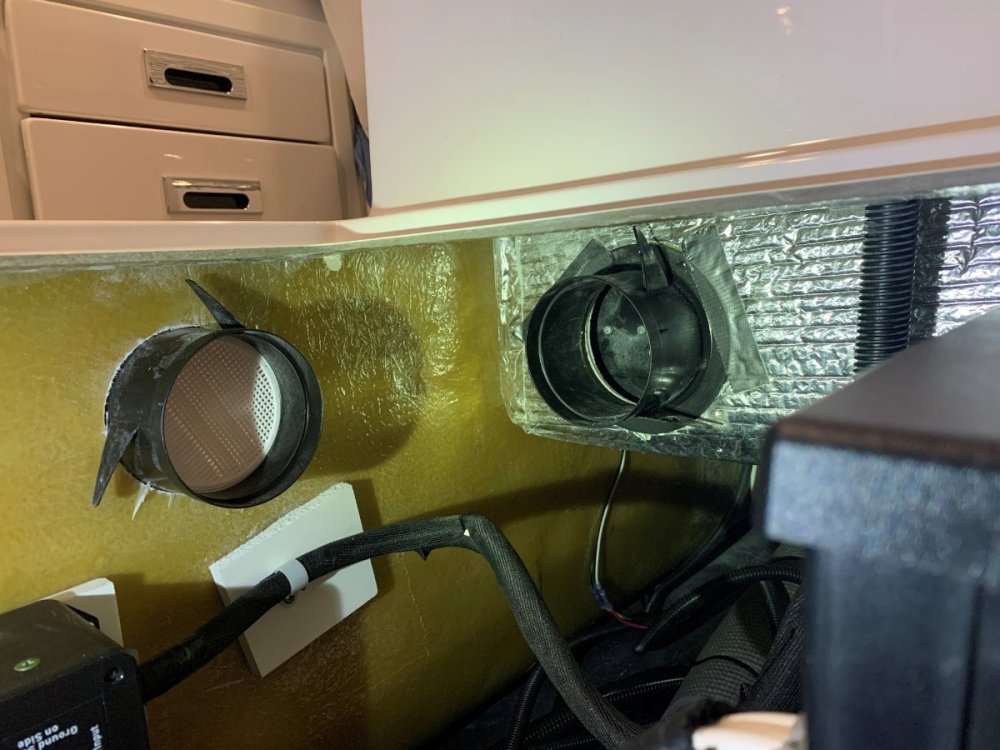

Here's a view of the intake vent from inside the battery compartment (it's the partially obscured vent on the lower right front of the battery box):

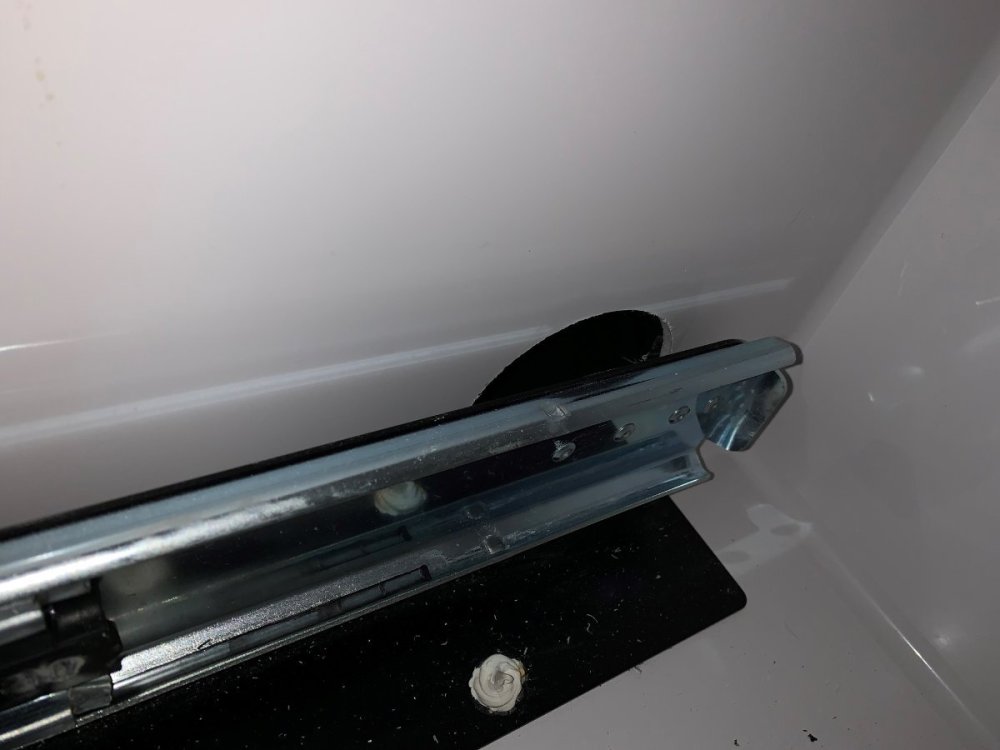

Working our way forward, here's a picture of the 4" exhaust hole in the battery box.  It's partially obscured by the rail.  It's located on the lower left back side of the battery box:


Moving back inside, here's a look under the aft dinette seat at the 4" holes used for the exhaust back to the cabin:


And here's what the exhaust looks like with the short piece of 4" duct in place under the dinette seat:

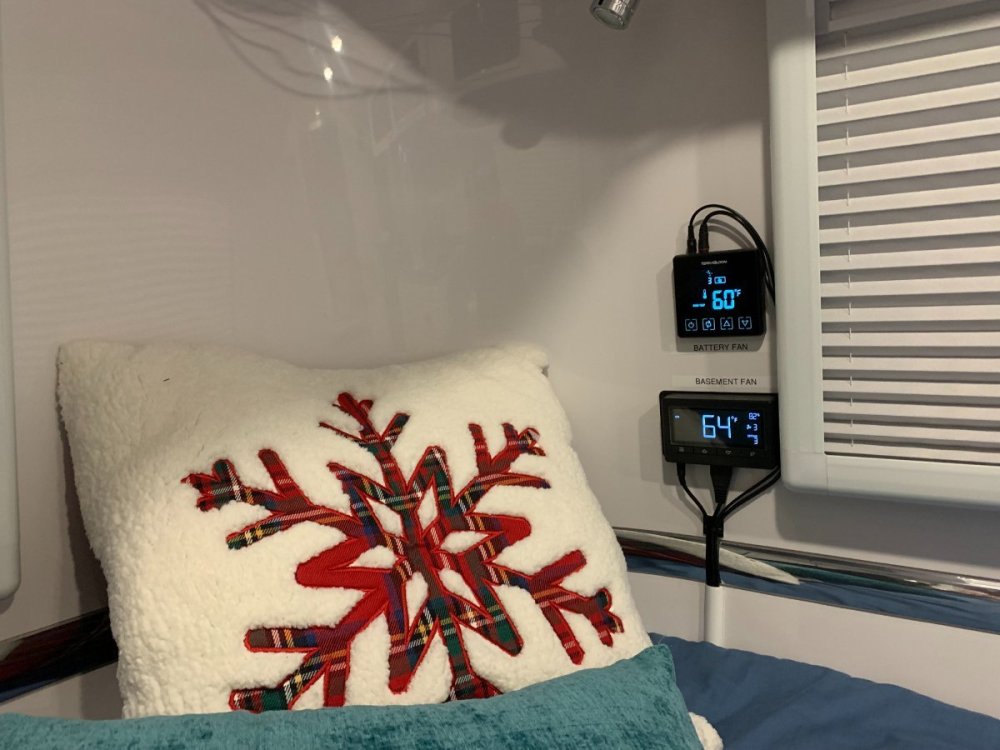

That's pretty much it.  I threaded the cables for the sensor and the fan control unit under the bed and put the controller for the battery compartment smart fan by my bilge (aka basement) smart fan controller.  The controller lights can be turned off and these controllers are where my feet go on the bed, so they are not in the way and tucked out of sight behind the window shade for the most part:


I know this doesn't include a lot of detail (i.e., I can't come close to the quality of John Davies' post!) about how I tapped into the 120V power (in the basement), the sealant I used with the vents, the hole saw I used, how I cut the holes, etc. , but here's a list of the parts and sealant used and I can try and help with any questions if anyone uses this design.

TerraBloom ECMF-100, 4" Inline Duct Fan with 0-100% Speed Controlled EC Motor, Metal Case, Energy Saving. For Ventilation Boosting, Heating, Humidity

AC Infinity Flexible 4-Inch Aluminum Ducting, Heavy-Duty Four-Layer Protection, 8-Feet Long for Heating Cooling Ventilation and Exhaust

Soffit Vents 4 Inch Round Air Vents Louver with Screen ABS Grille Air Exhaust Vent for Ventilation System (100mm)...

J-B Weld 31312 All-Purpose RTV Silicone Sealant and Adhesive - White - 3 oz.

  • Thanks 2
  • Like 4

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

Nice work!  Just to be clear:  I assume that the basement fan is different from this installation, i.e., the battery fan conditions the battery box and the basement fan conditions the basement space?

  • Thanks 1
  • Like 1

2021 Oliver LE2
Ram 2500 diesel

Link to comment
Share on other sites

11 hours ago, Fritz said:

Nice work!  Just to be clear:  I assume that the basement fan is different from this installation, i.e., the battery fan conditions the battery box and the basement fan conditions the basement space?

@Fritz, yes they are separate installations and independent fans and controllers.  I think the two solutions could be combined but may not be as efficient, especially for the battery compartment.  Thanks!  John

  • Thanks 1
  • Like 2

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

I just noticed the mouse-in-the-pantry decal in one of the photos in John Davies' original post for this thread (I was looking for the type of hole saw you guys were using).  Nice touch for the Mouse Haus!

  • Like 1

2021 Oliver LE2
Ram 2500 diesel

Link to comment
Share on other sites

5 hours ago, NCeagle said:

they are separate installations and independent fans and controllers.  I think the two solutions could be combined but may not be as efficient, especially for the battery compartment.  Thanks!  John

It appears that the programmable thermostat speed controller that you used (this one, perhaps: https://www.amazon.com/TerraBloom-Programmable-Thermostat-Controller-Temperature/dp/B083W2MRK6/ref=pd_day0fbt_img_2/146-3356731-9507947?pd_rd_w=Q7AR3&pf_rd_p=bcb8482a-3db5-4b0b-9f15-b86e24acdb00&pf_rd_r=XVV5SHAE2FP5518SGFZW&pd_rd_r=e2e72b65-4f68-4988-9560-bae75e92c00e&pd_rd_wg=FyVXm&pd_rd_i=B083W2MRK6&psc=1) will handle up to 4 fans.  I'm curious if there is a reason that you used two controllers for your installation (one for the basement and one for the battery compartment)?

  • Like 1

2021 Oliver LE2
Ram 2500 diesel

Link to comment
Share on other sites

This is a mod that I think I’ll finally get around to doing, with a few modifications. Rather than switch the fan remotely, I’m going to add a small thermostat control that I’ll mount in the hull; and I’m going to use a smaller 3” hose that mounts directly to the fan. I’ll tuck the inlet under the twin bed extension and mount the fan in the side of the box rather than the bottom. And since the fan is rated for 30+ cfm I’m not worried about blocking the flow with a more protective grill in the battery box. I’ll use the same one on the cabin side since it’s white and will mount easily to the hose.  I’ll just use an inline fuse.  Simple, automatic, and out of sight.  Will probably set the fan to come on at 40 degrees and go off at 50.

Here’s a list of what I’m getting:

Fan

Hose

Thermostat

Grills

  • Like 2
Link to comment
Share on other sites

41 minutes ago, Overland said:

This is a mod that I think I’ll finally get around to doing, with a few modifications. Rather than switch the fan remotely, I’m going to add a small thermostat control that I’ll mount in the basement; and I’m going to use a smaller 3” hose that mounts directly to the fan. I’ll tuck the inlet under the twin bed extension and mount the fan in the side of the box rather than the bottom. And since the fan is rated for 30+ cfm I’m not worried about blocking the flow with a more protective grill in the battery box. I’ll use the same one on the cabin side since it’s white and will mount easily to the hose.  I’ll just use an inline fuse.  Simple, automatic, and out of sight.  Will probably set the fan to come on at 40 degrees and go off at 50.

Here’s a list of what I’m getting:

Fan

Hose

Thermostat

Grills

Where are you located?   You seem to be much more adept at modifications.   I am great at opening the door to get into a trailer.   We have decided to wait until June or July to order as my wife is still working and it seems crazy to buy a trailer early and then pay for storage until we can actually use it in March or April.   Do you think OTT is working on any battery compartment ventilation?   We are going with the lithium pro package when we order.

  • Like 1

John and Debbie, Beaverton, Oregon,  2017 Ford Expedition EL 4x4 with heavy duty tow package.

Present trailer, 2003 Coleman tent trailer

Oliver Elite II is on my wish list

Link to comment
Share on other sites

10 minutes ago, John Welte said:

Do you think OTT is working on any battery compartment ventilation?   We are going with the lithium pro package when we order.

No clue, but it does seem like something they should consider unless the factory batteries have internal heating elements.  You can get Battleborns with heating elements now, but mine are old old.
