Wire question


Jps190
 Share

Recommended Posts

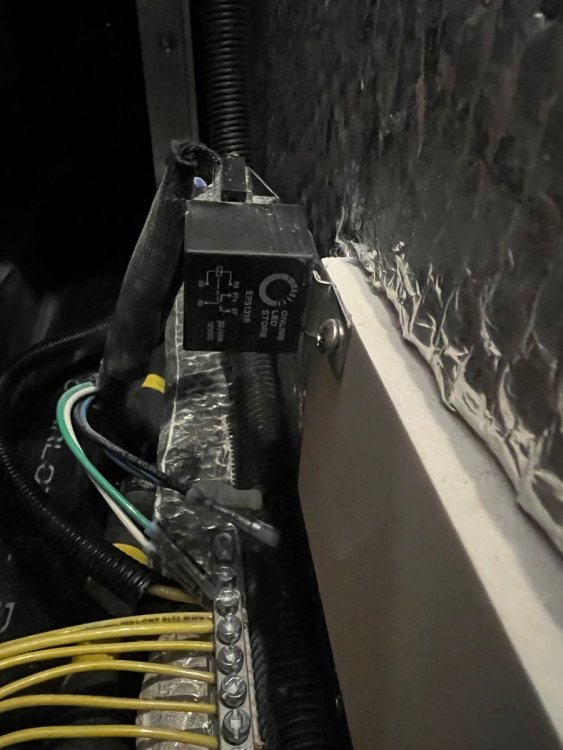

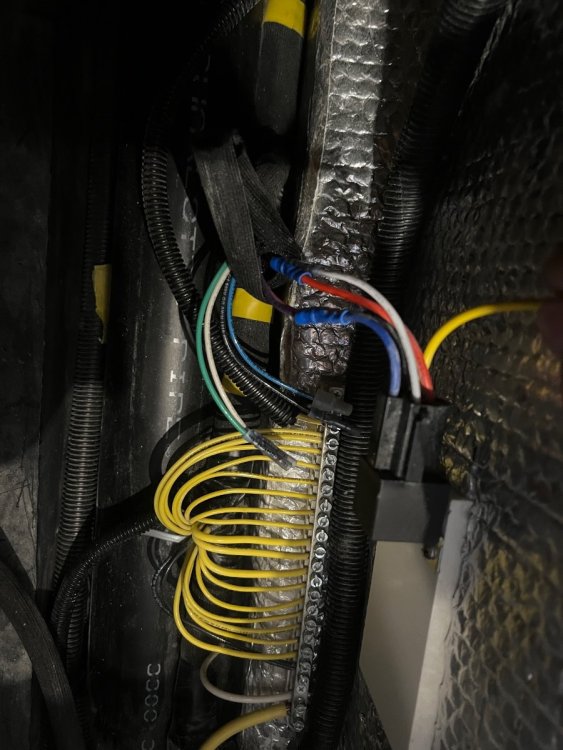

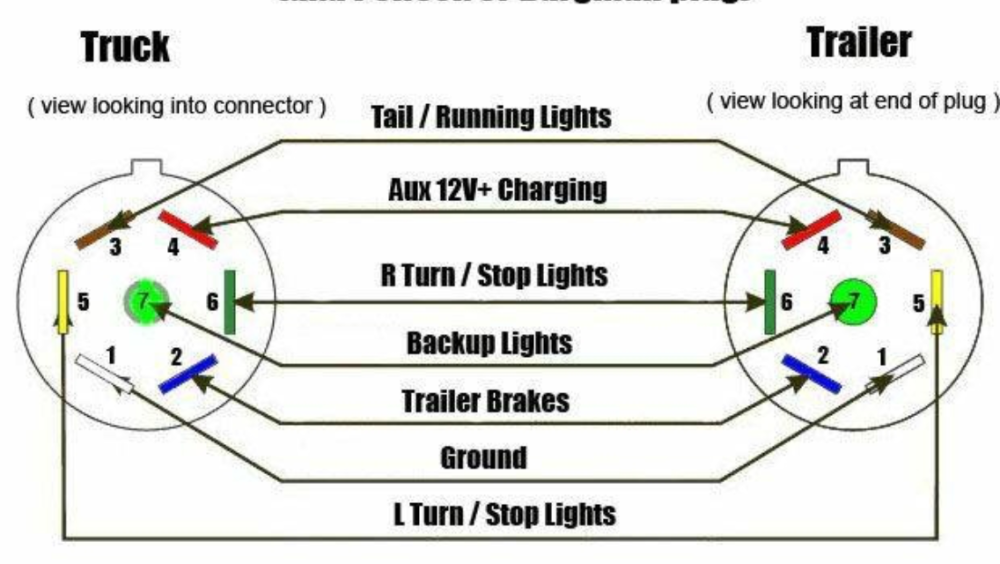

So I have begun poking around inside the hull to look at wires for adding a Victron shunt and possible installing a DC-DC charger.  Are these wires from the trailer harness (7 pin)?  4 of them are not attached to anything.

Thanks,



John






  • Like 1

John and Kim

2021 GMC Sierra 2500 AT4 6.6L Duramax 11350 GVWR  3048lb Payload

2021 Oliver Elite II.   Hull #887

Link to comment
Share on other sites

If all of your trailer lights and trailer brakes are working correctly when towing, it’s doubtful that those 4 unattached wires are related to the 7 pin harness.



  • Like 3

2019 Oliver Legacy Elite II - Hull #461

Tow Vehicles:

Primary - 2019 Ford F-250 SuperCab 4x4, 6.2L Flex-Fuel engine

Backup - 2019 Nissan Armada


Link to comment
Share on other sites

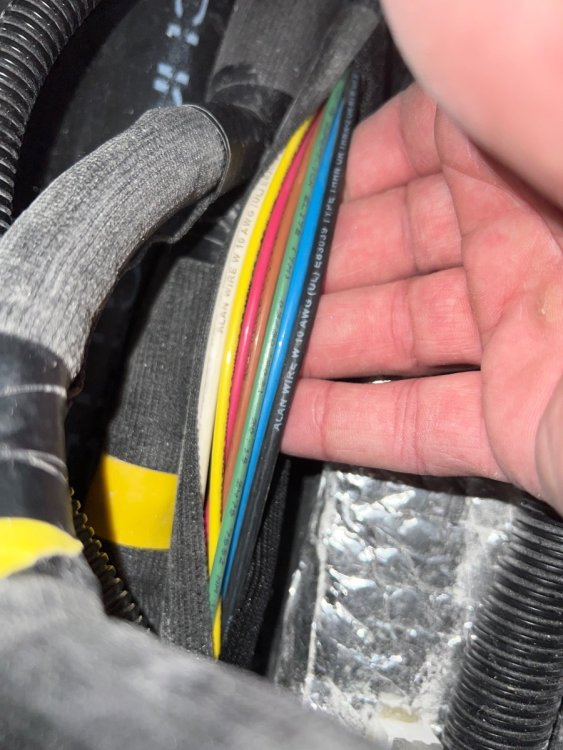

I did a little more poking around and found the harness.  The black and white wires are 10 AWG 👍🏻 So I have that going for me.  😁FBBF5BEE-A53C-4AAF-8B76-35817C330CF7.thumb.jpeg.992b98ae08d3da287f92901bdc814b37.jpeg

  • Like 1

John and Kim

2021 GMC Sierra 2500 AT4 6.6L Duramax 11350 GVWR  3048lb Payload

2021 Oliver Elite II.   Hull #887

Link to comment
Share on other sites

As a side note, since I've given Oliver a great deal of grief on the forum over this - the wiring and general cleanliness of the hull space on these new trailers is a tremendous step up from where they were a few years ago.  Nice.

Also @SeaDawg, those photos show the new insulation you were asking about.

  • Like 3
Link to comment
Share on other sites

  • Moderators

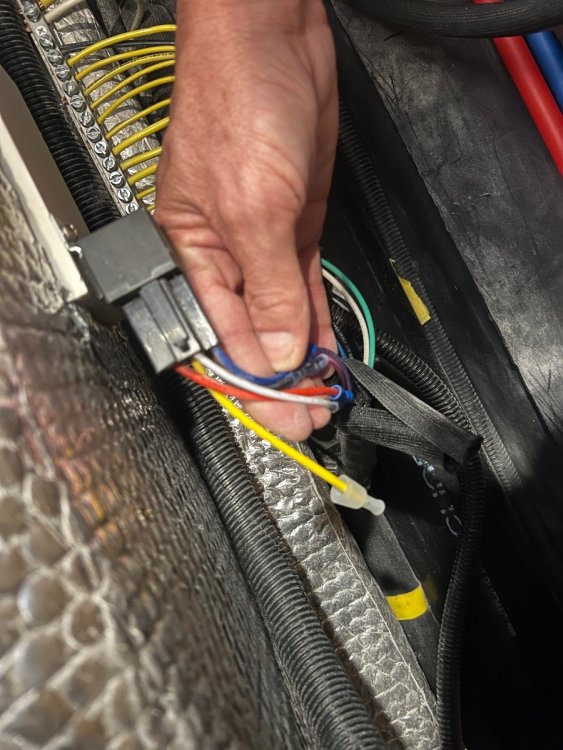

I have a couple of questions about the OP's pictures.  What is the relay for in picture #1 and the water supply lines in picture #3 are on top of the grey water tank and that seems to be a new location that I haven’t noticed before.

Mossey

Mike and Krunch   Lutz, FL
2017 LEII #193 “the dog house”





Link to comment
Share on other sites

3 hours ago, mossemi said:

I have a couple of questions about the OP's pictures.  What is the relay for in picture #1 and the water supply lines in picture #3 are on top of the grey water tank and that seems to be a new location that I haven’t noticed before.

Mossey

I'm not sure what that relay is.  It says LED lights on it but which ones I am not Sure.  Those PEX pipes are just a couple spare sections in case a repair is needed.  For anyone who has relocated their negative wires from the battery compartment to a bus bar in the hull, where did you place the bus bar and did you have to rework any cables?



Thanks,

John

John and Kim

2021 GMC Sierra 2500 AT4 6.6L Duramax 11350 GVWR  3048lb Payload

2021 Oliver Elite II.   Hull #887

Link to comment
Share on other sites

I added a mounting board on top of the wheel well and placed everything there. You can see it in this post -

I can’t say about reworking cables since I did all of mine from the start.  But I’d imagine that you’ll want or need to make up a few cables.  It’s easy if you get a pneumatic crimper off Amazon - it will seem like a silly purchase for one job but it will make the task go so much easier.



  • Like 1
Link to comment
Share on other sites

  • Moderators
6 hours ago, Jps190 said:

Those PEX pipes are just a couple spare sections in case a repair is needed.

If the spare sections of PEX aren’t secured, I would recommend that you do that.  I have a spare section floating around out of sight in the lower hull.


6 hours ago, Jps190 said:

For anyone who has relocated their negative wires from the battery compartment to a bus bar in the hull, where did you place the bus bar and did you have to rework any cables?

These pictures should be self explanatory, but if not, let me know.  I did rework the B+ and B- cables to work with the battery cut off switch, battery + and -, and the Victron shunt.

And I will second Overland's suggestion about the hydraulic crimpers.  With careful planning, you can crimp new lugs on while the 4/0 cable is on your work bench or while the still in the lower hull.  I removed my B+ cable from the main Oliver fuse and the inverter, which enabled me to make up those shorter cables on the work bench all out of the original cable.  The Oliver B- cable was moved from the inverter to the shunt and I purchased a new 4' piece of 4/0 and lugs to complete the negative side cables.

Mossey

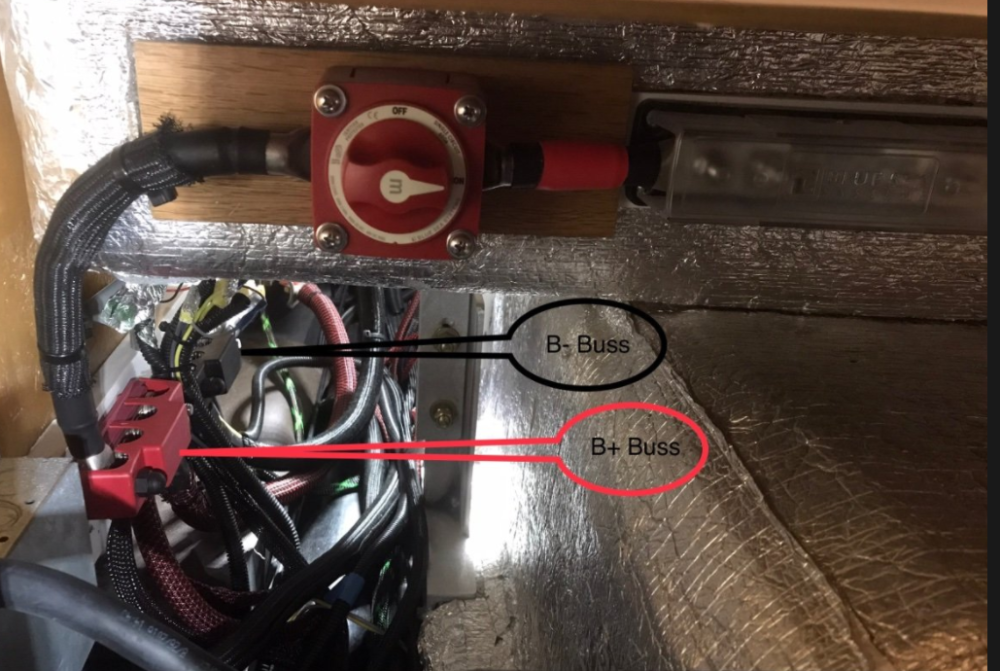

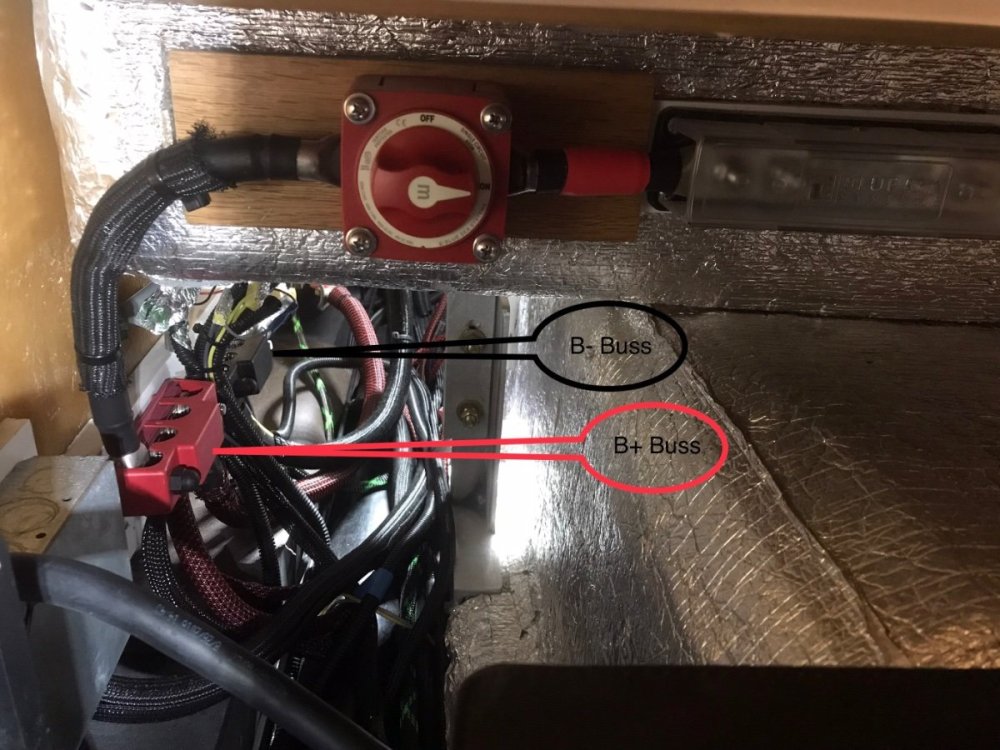

View from the rear dinette hatch

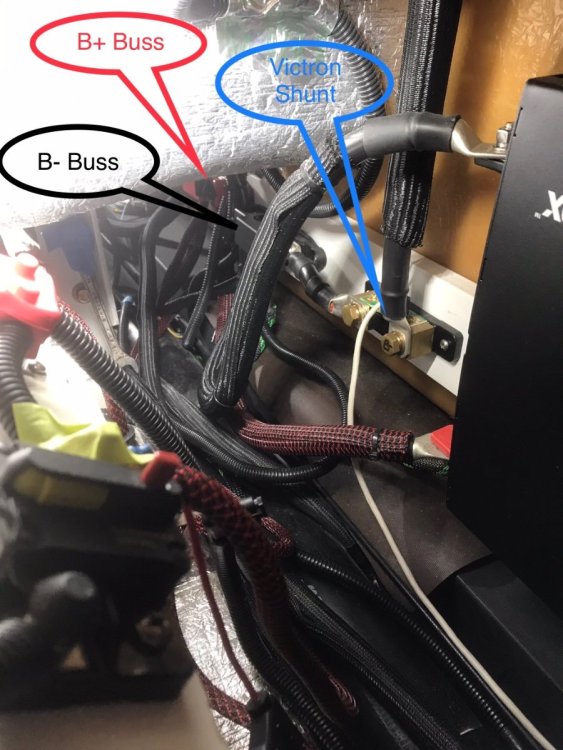

View from the front hatch of the street side bed


  • Like 2

Mike and Krunch   Lutz, FL
2017 LEII #193 “the dog house”





Link to comment
Share on other sites

  • 3 weeks later...

Mossey:  Thanks for the pictures!  Well done.

Am I correct in thinking that at the top of the photo you have power coming from the right, going to the left through a fuse block, to the Master Switch, to the B+ terminal block below?

If so, what size fuse did you use?  Or did you just reuse the OEM 300 amp fuse block?

Thanks,

GJ

PS:  For those looking at this same process, Blue Seas offers both a 300 and a 350 amp master switch.






Tug:  2019 F-150 SuperCrew Lariat, 3.5L EcoBoost, Max Trailer Tow, FX-4, 4X4, Rear Locker

ALAZARCACOIDKSKYLAMSNENVNMNCOKORTNTXUTVA
