On 2/3/2024 at 12:02 AM, Snackchaser said:

Our 2022 Elite II has the Dometic furnace, but I suspect that other furnace brands could have similar ducting issues and it might be worth taking a look.

Our 2022 Elite II has the Truma Varioheat furnace.  The Truma ducting is smaller, more substantial and, from what I can see in the photos, better installed.

In addition to the mods detailed above, I recommend you consider adding a return air vent from the bath to the underside of the front dinette seat.   Our Truma Varioheat system came with that additional return air vent.  It really helps the flow of heated air.

Bathroom Return Air Vent From Underneath Front Dinette Seat.jpg

  • Like 5



Hull #1291

Central Idaho

2022 Elite II

Tow Vehicle:  2019 Tundra Double Cab 4x4, 5.7L with tow package


Link to comment
Share on other sites

@Snackchaser were you able to get to or see the "reducer" on the way to the bathroom duct? I guess it just goes to smaller diameter ducting, so nothing you can do about it anyway.

Chris & John in Prescott, AZ | 2016 EII #113 | '01 Ram 2500 Cummins!

Link to comment
Share on other sites

It is "standard" operating procedure, in hot air ducting, to decrease duct size the further it gets from the heat source. The same amount of air in the 4" duct gets put into the 3" duct. This increases the velocity and helps move the heated air along. I just hope the is a direct path out of the bathroom and back to the return duct. Also hope that air is returned through the cabin and not through the basement. The return air is going to suck the air with the least resistance. Hopefully it is not the air from the drain 'scuppers'. That air might be 40°, or more,  cooler than cabin air, and the basement air might be 20° or more. The warmer the return air the more efficient the furnace is at heating.

Edited by Mainiac
Correct type
Link to comment
Share on other sites

5 hours ago, jd1923 said:

@Snackchaser were you able to get to or see the "reducer" on the way to the bathroom duct? I guess it just goes to smaller diameter ducting, so nothing you can do about it anyway.

Yes, it's directly attached to the Tee for the kitchen register.   The 3" duct goes on to the bathroom through some sort of firewall and it's not easily reached.

There was enough slack in the 3" duct to pull the Tee (with attached reducer) out through the access port that's under the forward kitchen drawers.  The space is tight, and you will need to detach the 4" side from the furnace to get enough slack on that side.  You can make most of the new connections while it's out.

You'll need to disconnect the kitchen register first.  The screw holding the duct to the register can be reached through the access port, but it's easier to replace it from the inside of the register, rather than trying to do it blindly from inside the access port.

Cheers, Geoff

 Here's a photo that I forgot to add in the original post:

0E07AA77-E3D6-4DFF-A433-A8A041E1A4A5_1_105_c.thumb.jpeg.d19065c07d237dbf2e93b1b1ea1d99b4.jpeg

  • Thanks 1
  • Like 4
  • Love 1
Link to comment
Share on other sites

  • 2 months later...

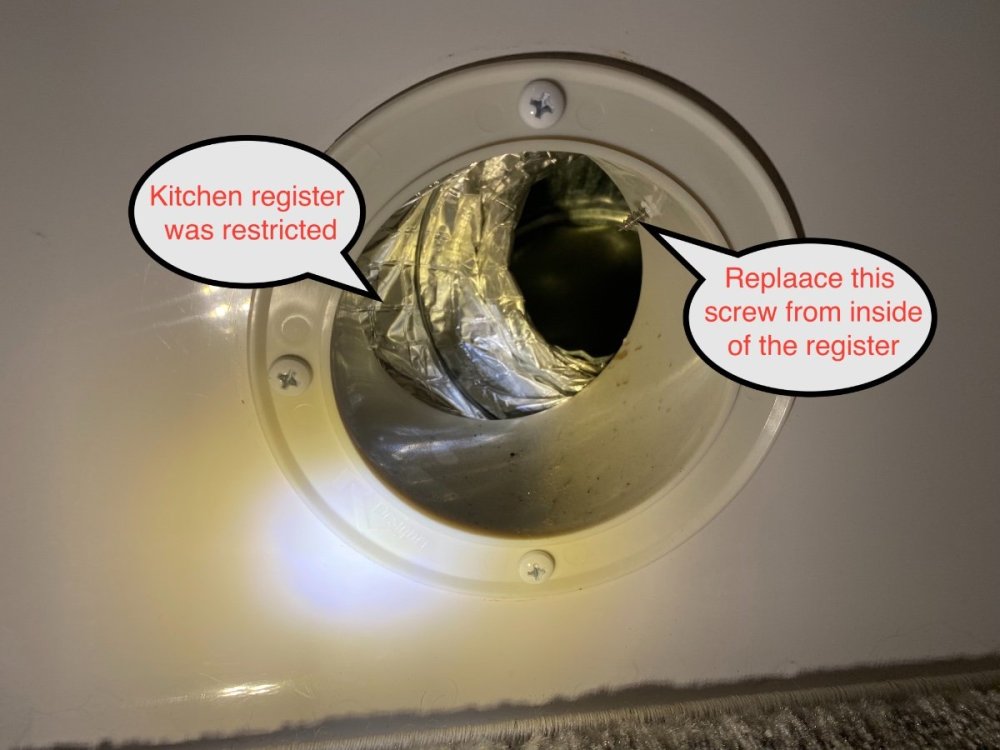

I'm in the middle of my conversion. I have removed the Kitchen/Bathroom T and attached the duct to the front of the furnace. I'm going to have a problem putting the T at the bedroom location due to waterlines in the way. (I'll include a photo) I didn't want a plumbing job. thinking of just going to the Kitchen and eliminating the sleeping area. Was your duct restricted like this?




  • Like 1

Hull #1238 - Legacy Elite II, TB. TV 2017 Tundra TRD.


Link to comment
Share on other sites

13 hours ago, aaronorange said:

Was your duct restricted like this?

Can you cut the duct, move the blue pex line(s) out of the way (pex lines are fairly flexible), and then reconnect the duct, incorporating the duct Tee?

  • Like 3



Hull #1291

Central Idaho

2022 Elite II

Tow Vehicle:  2019 Tundra Double Cab 4x4, 5.7L with tow package


Link to comment
Share on other sites

On 4/28/2024 at 8:38 PM, aaronorange said:

thinking of just going to the Kitchen and eliminating the sleeping area. Was your duct restricted like this?

Like the simple design @Snackchaser showed. I will do our mod this summer. I’m also thinking of deleting the bed area duct. We’re camping in colder weather last few days and I have this one shut as much as possible which helps the air flow in the bath. The bed area duct is too close to the return and we like the cabin warm but cooler air where we sleep.

  • Like 1

Chris & John in Prescott, AZ | 2016 EII #113 | '01 Ram 2500 Cummins!

Link to comment
