Solar Suitcase & Lithium Upgrades


rideandfly

Recommended Posts

When we purchased our 2015 LE2 used during 2016 it had two group 27 12V lead acid batteries without factory solar.  The following information & installation has happened over a few years.

Initially we purchased a Renogy 100W suitcase solar panel and used it charging the batteries through the trailer's 7 pin connector. Wanted to have a more efficient way to charge batteries.  Installed a Furrion Solar port and mounted Renogy Waterproof solar charger in the battery compartment.  Use about 36' of 10/2 cable with 12' sections from solar panel to Ollie's Furrion Port.

Had to drill holes in Ollie's pretty finish for the Furrion Solar port next to battery compartment.

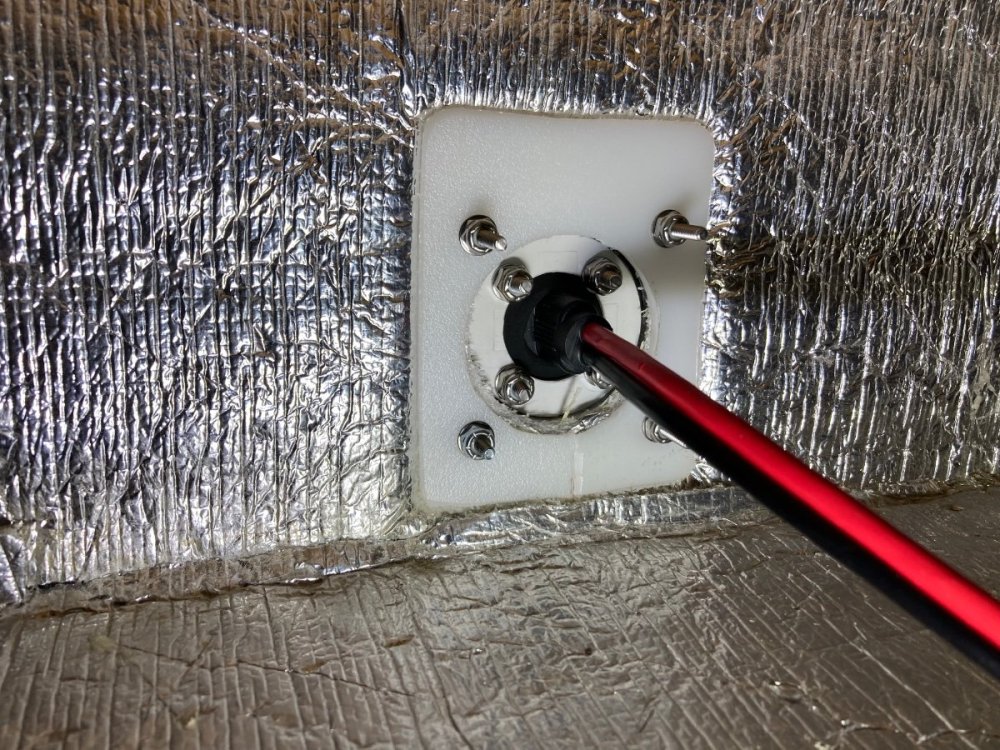

Furrion inlet under port bed:


Renogy Solar 20A Waterproof Charge Controller mounted on plastic kitchen cutting board in battery compartment:


When Ollie is in the shade it's nice to be able to reach out up to 36' placing panel in the sun, panel in lower LH corner of photo. Highest charge amperage seen using 36' of panel cable is 6 amps and highest charge amperage seen is 7.1 amps using one 12' section of solar cable.


We purchased a Honda EU2000i to charge batteries on poor solar days. Installed a EZ start on the 13.5K Dometic AC so the Honda gen-set can also run the AC unit, or microwave, or hot water heater.


Been actively reducing Ollie's weight when possible, currently Ollie's ready to camp weight is around 4950 pounds with full 6 gallon hot water tank and all other water tanks empty as per CAT scales.

Replaced two group 27 12V (125 pounds) batteries with one BattleBorn 100AH Lithium (35 pounds) battery for loss of weight and Lithium battery performance benefits. Also installed the Progressive Dynamics Lithium charging section in our Progressive Dynamics convertor that BattleBorn said would work fine with their battery. Using the Honda gen-set connected to Ollie's 30 amp connection, the Progressive charger slowly drops charge amperage then cycles charge rate between .25 amps to .4 amps at full charge.


BattleBorn told me not to worry about TV alternator damage when connected to TV with 7 pin plug with our particular system. They said because of charge cable's small diameter and distance from TV to battery,  would not see very high amperage charge with TV connected. So far with BattleBorn battery at 75% charge while connected to TV with engine idling have not seen more than 3.5 amps of charge. Our current TV has 180 amp alternator and with ignition turned off, the 12V power supply to Ollie is also switched off.

Initially installed a Victron BlueTooth shunt to monitor the battery, but my Android 5 was not supported by the Victron system. Believe Victron unit is the way to go, but at the time my Android was not compatible so purchased an inexpensive shunt & monitor from Amazon to monitor the battery. Found a automotive 2" instrument mount on Ebay to mount the monitor:

https://www.amazon.com/dp/B07FGFFHC6?psc=1&ref=ppx_yo2_dt_b_product_details


The battery monitor is not waterproof, use a 1 1/8" hole saw to cut out 1" OD plastic cutting board plugs to fill the existing ventilation holes in the battery compartment door. Did not want to mount these plugs permanently, sealed with clear RTV silicone for easy removal:




The benefits of the Lithium battery is much faster charging with gen-set or solar panel with plenty of battery capacity for our style of camping. Will be doing more camping without electricity and water connections with this system, too. :classic_smile:
