DavePhelps

Don't have a Clam shelter, but have been snug as a bug in my little legacy1 in very high winds. I can't imagine any of these shelters are up to the task of the high intensity winds and micro blasts of the inter-mountain West and other areas. Best to take them down at night. Also, there is a pretty good app called Windy that gives detailed wind information, both current and projected, worth looking in to. Dave

Thanks for that. Now that I've thought this through, I can see that in this case, ability to vent both in and out would be best. Dave

Looking forward to your renovation JD. You could add more solar panels up there if needed. Regarding the vent. I wonder if it could be replaced with an Air Admittance Valve inside the trailer. That would clean the slate up on the roof. My vent goes up through the closet, a great place to put the AAV. Used them a lot in residential plumbing to solve difficult routing issues in old homes. Any plumbers out there to comment? I know Oliver already uses one to vent the kitchen sink, so why not the main stack? Good luck and like your new scaffold! Cheers, Dave

I have what rich.dev showed above and has worked great. Otherwise zip ties as Mike and Carole suggested. Twisting chains to adjust length is not recommended and can dramatically reduce their strength. Best to cut them to the required length with no twist! Dave

Revitalizing this thread with just a few more questions! Yes, here I am again..... Charger converter is 45A. All new wire will be 4awg. Still considering either the 1, 300amp Epoch or 2, 100amp Battle Borns.... My new block plan including the solar details. 1. Should I replace the OEM 30A breaker between the SCC and the battery with an 30A anl fuse? If I keep the breaker, how would you orient the aux/battery connections? 2. Given these new Lithium batteries have their own EMS, do I no longer need the OEM temp. sensor wire between battery and SCC? It's easy to keep but don't want to create data conflicts. 3. Where to put a battery disconnect switch? Between the battery and the shunt? Assuming the negative lead is the correct one to switch. Is this step even necessary? Any other comments very much appreciated. 🙏 Also included for your viewing pleasure is a pic of one of my leads off the battery. I sure hope Oliver has gotten a hold of better electricians. There are other crimps showing similar lack of attention. Any of you find similar crimps during your retrofits? Dave

A quick internet search revealed that 14-16 inch pounds is the correct terminal screw torque spec. But to be sure, I'd contact Furrion or whoever made your new plug to verify. I'll be checking mine now! Glad you didn't sustain too much damage. Dave

Thanks for posting that! I was wondering if the regulator size was different. It makes good sense that it is. Curious that if one connects to the trailer's onboard LP quick connect, the propane is still regulated by the lower flow Oliver regulator. I would think that you would still need a stand alone tank that had the high flow regulator separate from Oliver's lower flow regulated system. That's how I plan to run mine anyway. This is very true for the newer Oliver trailers with the built in PI EMS. My 2015 Oliver has no EMS built in so I don't need the neutral/ground plug. I have the portable PI EMS, but would not be using it while boondocking and using the generator. Please correct me if I'm wrong!

This is all true JD. But I am also thinking emergency use of the generator at home where options of multiple fuel use would be an advantage. While having fun in my Oliver, I would only ever run the generator on propane for all the reasons you mentioned, and a few more! I also try to never run ethanol gas in any of my gas powered tools. Only high octane non-ethanol gas is used. Where I live, it is pretty easy to find. There is also a website that will list local "pure gas" locations in your area. https://www.pure-gas.org/ Dave

Once we had the spade connector at the water pump switch come loose. So that is another area for checking out if this happens to anyone else. Glad you solved your problem. Dave

Yes! Thanks for bringing that up. If you want to run the generator on propane only, this could be true. But if you want dual fuel capability, then you'll need the kit. Rethinking the Hutch Mountain kit now in favor of the kit made by Grenergy. If you watch the install videos on YouTube, I think the Grenergy system is much better thought through, with better components. I'm also rethinking the need for the Companion model. The 30 amp plug would be necessary if running two generators in series, but for one gen, the two 20amp plugs would be fine. Dave

I put this on 6 or 7 years ago and it still looks like new. Check the thickness of your cover to be sure the trim will fit. There are different grip ranges available. https://www.amazon.com/dp/B00QAJJJ3Y?ref=ppx_pop_mob_ap_share&th=1

🙏🙏

Oh, forgot to add. After years of being anti-generator, I am softening my view. Especially for very early and late season camping where my solar setup can struggle after days of rain and low light. Currently considering the Honda EU 2200i Companion. The companion model has a 30 amp plug (as well as a standard 20amp) so no adapters needed for my Oliver supplied shore power cord. AC is not really a thought for me, have hardly ever used it. But if that changed, I'd get the soft start for that. I'd also convert the generator to propane with the Hutch Mountain kit, which has gotten very good reviews. As little as I would need the generator, propane would be a better choice over gas. https://www.hutchmountain.com/products/honda-eu2200i-propane-natural-gas-gasoline-tri-fuel-conversion-kit?srsltid=AfmBOop2BOyh5idW05vUOtzKeU9wfC8jIVGVypoD-M00sGuc3CFgqsxA Dave

Although hideously expensive, one could get an aluminum 30# propane tank, which, if I recall correctly, weighs the same (when full) as a steel 20 # tank. A lot of $$ though, but could be worth it for someone's special requirements. https://www.vintagetrailersupply.com/30-lb-7-1-gallon-vertical-aluminum-lp-tank-vts-169/ And yes, as has been mentioned, the Elite 1 will only fit 2 20# tanks. Running out of propane has never been an issue with me. The stuff lasts a long time! Dave

Good post JD. I hope a lot of folks read this. I learned early on that the brake controller is not a "set and forget" device. I am always tweaking mine depending on road conditions, speed and especially GRADE!! At the start of a long steep descent, I put the gain way up. I can tell now when the TV and trailer are in sync with each other. Good thing you have an HD truck and glad you are safe. Brake failure on some of the steep grades we have out west is not an option! Does your Ram Cummins not have an exhaust brake? Not a diesel owner but thought that was one of their great benefits. Cheers, Dave

Tracing leaks is a real challenge. Up in the attic, behind the side panels, there is a lot of wiring (the dreaded Oliver sign and the marker lights to name two). On my trailer, no drip loops were employed on these wires. So when my rear Oliver sign started to leak, as well as my streetside marker light, the water did not go straight down but traveled along the wires horizontally to a low spot where they dripped. In my case, this was out the rear streetside ceiling speaker, which is right over my head when I'm sleeping! This is all just to say that, water can travel a long ways before it finally comes to light. I would tape the Oliver sign and the marker light as one other test. As Steph and Dud B mentioned, water is still getting in from somewhere, even though you sealed the interior of your window, which you shouldn't need to do. Regarding the window weepholes, This was discussed a while back. They are not so effective draining water due to capillary attraction between the narrow slots and the water. What I ended up doing to solve this was to cut some short pieces of paracord and stuff one end into the slot. It acts like a wick and you'd be surprised how much water they will suck out of the track in a heavy rain, and they do it quickly. I know about heavy rain here in the PNW (well, it used to rain here....)! So, you may also want to try this hack to stop the leak. Good luck, Dave

LOL, yes that's exactly what was missed by inches! Just couldn't figure a polite way to explain it! Dave

I know it's not as fun, but opening a hot water valve at any faucet will relieve the pressure in the hw tank. When first learning how to winterize my trailer, I blew out the lines with compressed air without putting the hw tank in bypass mode. I can't remember the exact sequence of events, except when I unscrewed the anode that sucker shot 20 feet across my yard just missing me by inches. Live and learn! Dave

I somehow missed Snackchaser's post last night. Thanks for that great idea about using a fuse instead of a breaker for the charger to battery connection! It makes good sense to me. So I will amend my proposed diagram above to eliminate the 50 amp breaker, and replace it with a 60amp ANL fuse (per JD's recommendation). Wondering if now would be a good time to add a battery disconnect switch, or if I even need one. Seems like a lot of folks have added them. I could add one to the negative 4awg wire between the battery and the ground bus. I read (Battleborn Battery website) that putting the switch on the negative lead is potentially safer, so trust their call on that. I really appreciate all the input I get here. I could hire this all out, but I really want to learn all that I can about the electrical side. And I like doing the work on my own trailer. I've done a lot of my own residential AC work, but the world of 12VDC is quite different in many ways! JD: There is a 30amp breaker between my solar charge controller output and the battery. With the 'aux' connection on the controller side and the' battery' connection on the battery side (seems correct?). The solar panel inputs are not fused, at least not inside the trailer. I need to now draw out a complete wiring diagram of the entire system. It may take a day or two as I'm pretty swamped right now with other projects. But I'll get it up here as soon as I can. Again, I really appreciate all the help I have received here.👍 Dave

Thanks so much JD for your help with this. I had a feeling that the aluminum plate was a bad idea so glad to get the confirmation! Regarding your statement above, do you mean I need to run a second 6AWG positive wire from the LiFePO4 battery to the Battery(line) side of the 40 amp breaker? While still keeping the two fuses connected? Or a more simple solution might be to eliminate the battery to battery connection between the 50 and 40 amp breakers in my diagram (revised by turning the 50A breaker around as you suggested) and instead connect the aux side of the 50amp breaker to the battery side of the 40 amp breaker. That way power from the LiFePO4 battery would travel down the existing 4AWG wire and then jump over to the 40 amp breaker without traveling through the 50 amp breaker as you suggested. This has my head in a knot. I'll draw it up tomorrow! 🙏 Dave

After reading all these posts carefully, and especially the one from JD, I have come up with this wiring plan. I still may consult with an RV solar technician but though I'd post my crude diagram here for any comments. Sorry, my computer graphic skills are non existent. Forgot to write in that all negative leads from charger to battery will also be 4AWG. This is just the Charger/converter side of the system. I left out the solar side for clarity. Also note the orientation of the fuses to make sure I got that right. I wasn't aware that there was a battery and aux side to them. There are no indications of this on my current Bussmann fuses, but I do see this on newer ones. I may connect the two fuses with a 1/8"x1" copper bar as has been described elsewhere on the forum. Mostly for a clean connection as the distance will be so short between the two. My plan is to mount both fuses to an aluminum plate that is bolted to the existing Starboard panel (?) or whatever it is that Oliver used to mount their components. Dave

Received this PDF from Progressive Dynamics. Thought I would post it here for anyone's interest. News to me that when calculating wire length, the combined length of the positive and negative leads must be added together. Dave Wire-Guage-for-Lithium-Charging.pdf

So one final question. The Bussmann circuit breaker between my converter/charger and the hot bus is 40 amp. The next size up is 50amp (Blue Sea) With my new 45 amp charger, and new 4awg wiring, it seems like the 50 amp breaker would be the way to go. Or is the OEM 40 amp breaker adequate? Thanks. Dave

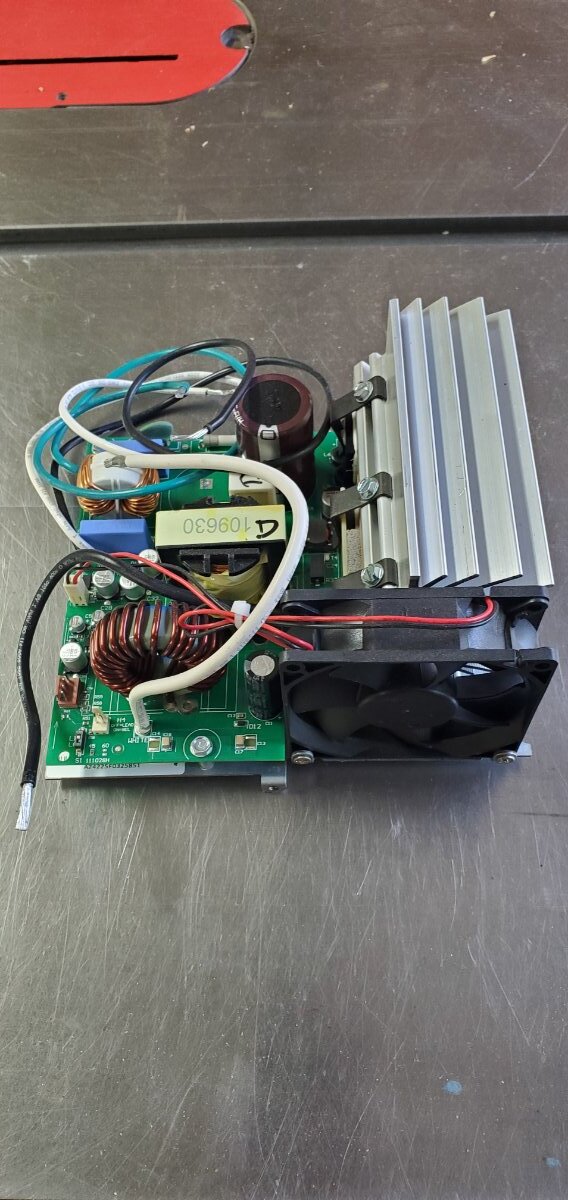

OK, let me try to get through everyone's good advice! 🙏 My new PD converter/charger module is the PD4045CSV, which puts out a max 45 amps. My solar array is 200 watts (Elite 1 remember). I think the newer models are a bit more.... I hope to add an aux 100 watt panel in the future, so 300 watts of panels. Yes, my Blue Sky charge controller is for the solar panels, and there is already a schunt installed that communicates with my Blue Sky IPN Remote display. It sounds like 6awg works for the solar side of my battery charging, but is lacking for the increased amp output of my new converter/charger? According to Snackchaser"s chart, 4awg wire would be the correct size, for the 45amp output of my converter/charger. I think I have enough OEM 6awg wire to install new crimp connectors and keep that wire in place from my charge controller . Some of the old ones were not so great. Even have some exposed wire on two connections that were over stripped and then the heat shrink was cut too short..... For the new converter/charger, I'll run new 4awg to the battery. Sounds like a plan is emerging! Not a lot of room in my trailer's electrical space under rear dinette seat, so glad I don't have to break in to my BS charge controller, it's kind of buried in there. Thanks again everyone for helping me through this. I'm good with the tools, but with the design side of electrical work I'm a bit lacking. Best, Dave PS. guess I'll also have to check the fuse from the converter/charger to battery to make sure it's rated for 45 amps.

My 9 year old AGM batteries are finally at the end of their life and I’ve decided to convert to a LiFePO4 battery system. One Epoch 12v 300ah battery I am looking at will fit nicely in my Legacy1 battery box and will have almost 2x the amp-hr capacity of my 2 6v AGM’s. . I have ordered a new Progressive Dynamics charger/converter module as my old one does not have the lithium switch or the other manual means to charge lithium batteries. So this is all good. My question is about the wiring. I do not have an inverter, nor do I plan to get one in the future. Between propane and 12VDC, I feel pretty comfortable. My current system however is wired with only 6awg wire. This seems way too small (or not??). The crimp connections are also of poor, bordering on dangerous quality. So I want to redo all the wiring from the batteries forward. Distances are short but with the new lithium batteries, I’m wondering what gauge wire is recommended? I have the Blue Sky charge controller and can’t find in the OM the max wire size it can accommodate. Any other ideas or cautions for this conversion would be appreciated! And thanks to those who have posted a lot of great info in other posts about this conversion. Cheers. Dave
