Starting a Lithium Upgrade


Recommended Posts

I'm starting a Lithium upgrade on a 2019 Elite II Hull 505 - I've reviewed many other posts and projects (thanks for your postings) and decided to start this one to document my project to install new Lithionics batteries.  Comments from those of you with experience very welcome:

Overview:  Lithium Upgrade Project:

Reason I'm upgrading:

My 4 AGM's finally died this spring.
I've got some time now to do this project now before a 9 month road trip later this year.



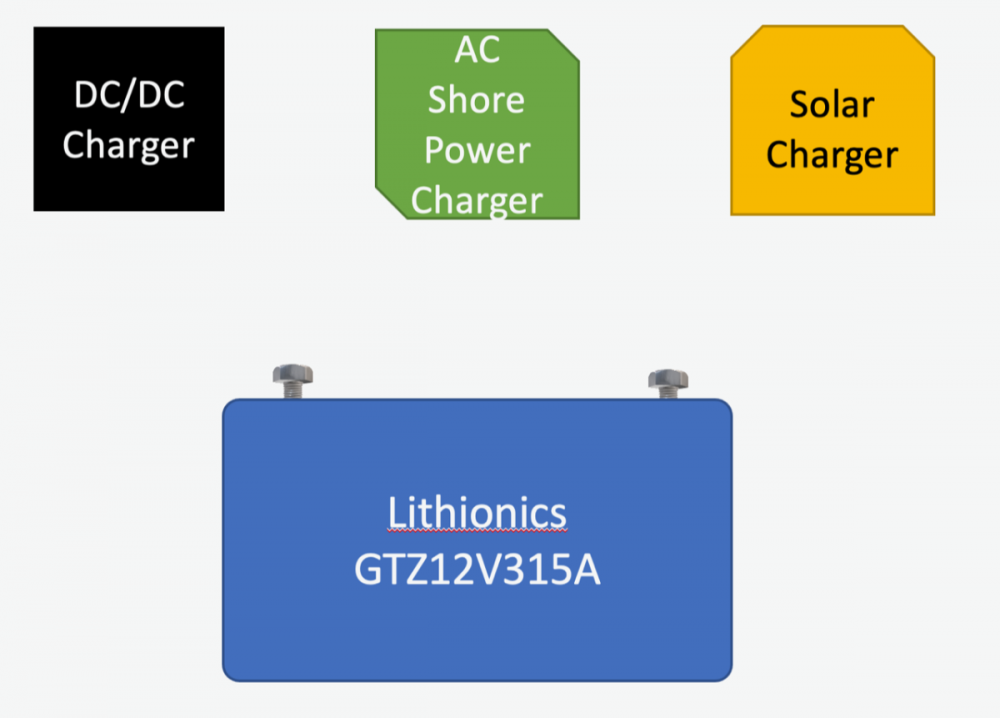

There are three ways that batteries get charged in hull 505:
1) From Alternator/7PIN
2) From AC Shore Power
3) From Solar:


1) Alternator or DC/DC CHARGING:
    Our Oliver's batteries get charged through the 7 pin connector while driving.
    This is considered Alternator Charging or DC/DC charging.
    For Lead Acid Chemistry this charging method works fine as the amount of current drawn by AGM's or WET Lead Acid's is relatively low because they have higher internal resistance.
    Many of you know that you can't rely on that 7 pin connection to fully re-charge your batteries but they can keep them from declining.
    Hull 505 was built with a 20A breaker in this 7 Pin line to protect the wiring and Tow Vehicle alternator.
    For Lithium batteries with very low internal impedance this current draw can be many time higher, and result in overloading the tow vehicle alternator or cause wiring overloads.
    To make charging more consistent and protect the alternator a DC/DC charger is the preferred choice for LI batteries.
    My Plan:  I will be adding a Victron DC/DC 30A Charger on board the Oliver.

 Installation Research and feedback from Oliver Service says that I need to:

  • Carefully inspect the existing 7 pin wiring and do load calculations.
  • Worst case I'll be running a new pair of dedicated 6 AWB charging wires from engine bay of Truck all the way back to the DC/DC charger.
  • Figure out my location to mount for the Victron DC/DC charger. Must be near the batteries and have some cooling space and dissipation plate under the charger.
  • Run new 6AWG wires from my Truck Engine Bay all the way back to an Anderson Connector on the Rear Bumper of my truck.
  • On the Oliver, run 6AWG wires back into the same bay as the DC/DC charger.



2) AC Shore Power Charging - Upgrade to Xantrex XC 2000 Pro Inverter/Charger - provides 100A Battery Charging

    In my specific hull 505 I have a Progressive Dynamics 4000 load center.  This houses the AC Breakers, DC Fuses and a converter section for battery charging.
    In my PD4000 there is a PD 4065 Converter section (65A) with Lithium Jumper for Battery Charging.
    In normal operation that charger is set to WIZ (or Lead Acid) position and it follows a profile that's perfect for lead acid batteries and AGM's.
    If I move the switch (or jumper) to the LI position, it now has a constant output at 14.6V which is OK for Lithium but not optimum for the Lithionics batteries.
    Lithionics prefers that I use another charger with a programmable LI profile.
    My Plan: I'm upgrading my current PD converter charger and separate Prosine 2000W inverter to an integrate  Xantrex XC2000 Pro  Charger/Inverter.
                   Note: I don't plan on running my AC off the batteries so the 2000W inverter is plenty for my needs. In the Platinum Package Oliver installs the XC3000.



 Installation Research and feedback from Oliver Service says that I need to

  • Disconnect the existing PD4065  converter charging leads that go to the batteries and tape them up.
  • Leave the charger block in the PD4000 load center cage  - just in case I need to downgrade later back to AGM's.
  • Remove the existing 2000W Inverter and Auto Transfer switch.
    (The load and AC wires go back into the new XC2000 along with the 4/0 B+ and GND leads)
    • Mounting issue: I'll need to figure out how to attach the new inverter to the same spot under the street side bed.


3) Solar Charging  - No Change at this time

   In my Hull 505, I have a Zamp 30A PWM Solar Controller.
   This controller isn't as efficient as an MPPT controller, but it is already installed and works.
   In keeping this first install simple, I'm leaving that in place.
   My Plan:  I'll be leaving Zamp 30A Charger in place for now, and will upgrade to a higher power MPPT controller in the future along with more solar panels.

 Installation Research and feedback from Lithionics says that I need to:

  • Install a breaker on the solar + line so I can Isolate from batteries.



4) Decluttering the battery box -
    It looks like many of you have moved all the loads and negatives to common bus bars as a way to declutter the battery box area.
    I want to do the same...I've read the posts so far but wonder what's been the most difficult part of those change overs?
    I plan to wire in a cutoff switche for the main B+ power (Big Red Knob) and a breaker for the Solar Inputs so I can cut all power for winter LI battery storage.



Comments welcome before I get to the start line.



Craig

Hull 505



Edited by Galway Girl
Updated Diagram
  • Thanks 1
  • Like 3

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

  • Moderators
Posted (edited)

Galway Girl, I  split your post to a new topic, so that you get your own comments.

Good luck with the upgrade. We'll look forward to your progress !

Edited by SeaDawg
Typo

2008 Ram 1500 4 × 4

2008 Oliver Elite, Hull #12




Link to comment
Share on other sites

We bought our 2020 Elite II with LifeBlue Lithiums, so I can't comment on an upgrade, but I can comment on things I've learned that you may want to consider in your "design".

1.  Temperature control:  the Lithiums like to be at room temperature (+/- 20F).  OTT installs a heating mat custom made for super-cold conditions.  I know a lot of owners with Lithium, including myself, have sealed off the battery box vents and insulated the door.  Conditioned air is also something to consider.  @John E Davieshas vented and installed a computer fan to help with temperatures in his battery box.  I took a different approach and decided to keep the battery box air tight and tie it in directly with the cabin conditioned air using a dedicated 4" smart fan and ducts.

2.  A charger that has either software control or an easy to access cutoff between the charger and the batteries.  Lithiums don't like to be topped off and kept at 100%, so I have found that I do a lot of shorter charge cycles like from 50% to 85% or so.  Turning the charger off / on may be something you find you would like to do more often than you have in the past, so easy access is very nice to have.

Good luck - I'm sure you will get lots of great advice and help from other members that have just done the actual upgrade!

John

  • Like 2
  • Love 1

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

Posted (edited)
9 hours ago, NCeagle said:

Lithiums don't like to be topped off and kept at 100%

John -- So  having the ability to turn on or off the charger is useful...and that I should let the lithiums drain down further before recharging.
Does that mean while connected to shore power I should turn off the Xantrex 2000XC Pro charger until the batteries are down to 50% ?

FYI:

The batteries I'm using come from Lithionics and are internally heated with embedded wireless BT monitors.
They also have integrated ON/OFF switch for cutoff of power for safety and storage.
They are now being offered by Oliver as part of their new Lithium Platinum Package.

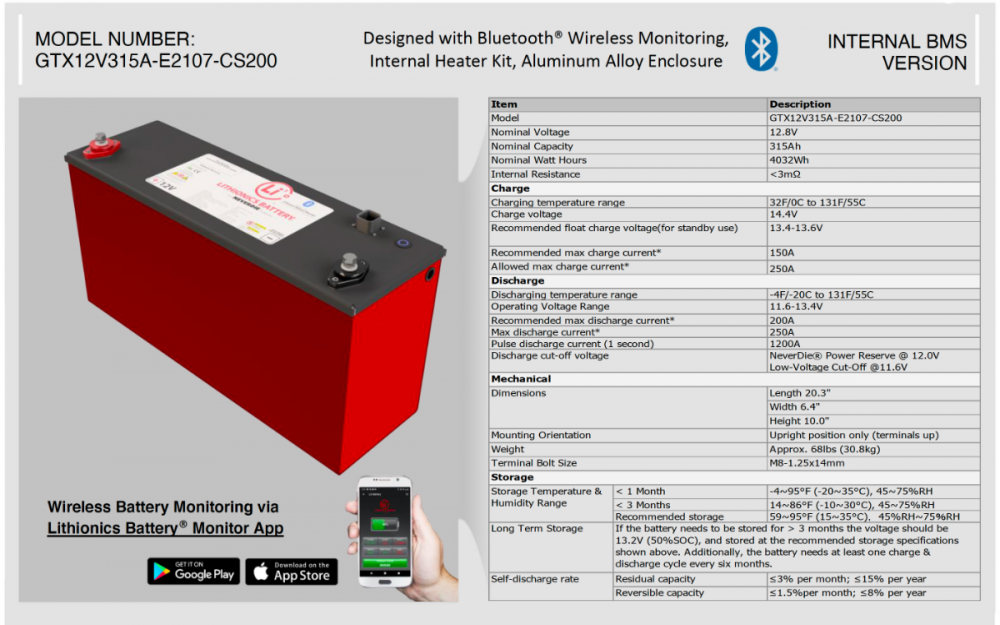

Attached is the full data sheet on the Lithionics GTX 315A battery.

Two of these batteries will perfectly fit into the existing Battery Tray.
Based on the dimensions, and Oliver testing they have ~1/2" space each side for spacer blocks to keep batteries tightly secured along with the strap system.
Once I get the batteries in hand I'll be doing a set of schematic drawings.
I'll be taking pictures of tear out, and reinstall and any other mods I need to make along the way.

I'll also be adding a Xantrex XC 2000 Pro - Inverter Charger with BT Monitor/control panel.



1339944375_ScreenShot2021-03-30at10_36_46AM.thumb.png.41538243e9cc1ef84a4f8cb9a9283e47.png





**********   Picture and text below from the Oliver Website including the picture of batteries in the existing tray *****************

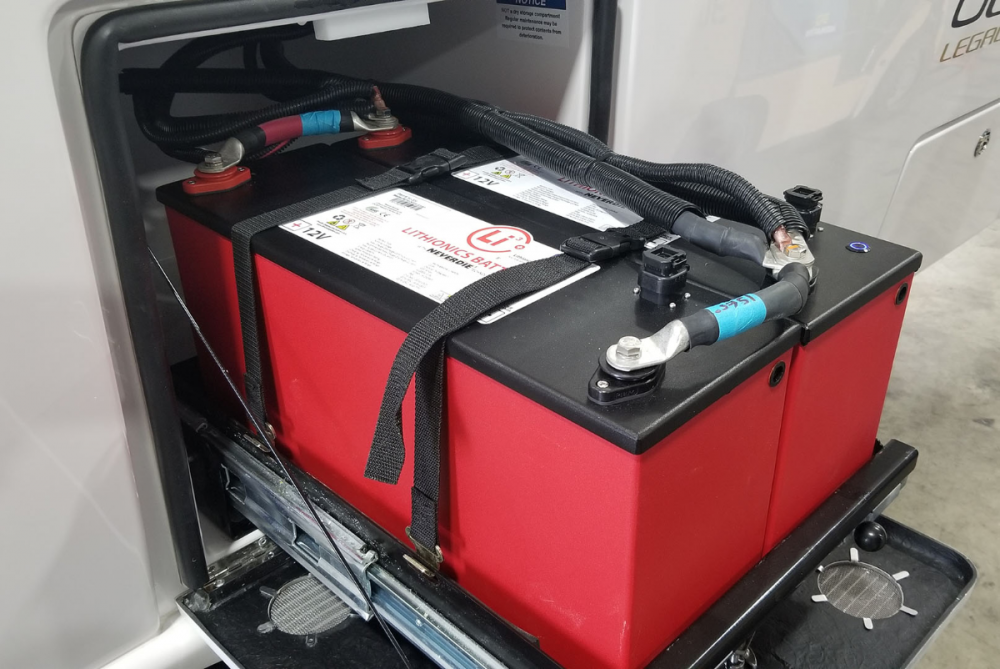

https://olivertraveltrailers.com/travel-trailers/legacy-elite-2/upgrades-add-ons/

The 2022 Oliver Lithium Platinum Package includes...
- 630 AH Lithium Batteries Package (2 Lithionics GTX315A)
- 340 Watt Solar Package with Charge Controller (Zamp PWM Controller)
- 3000 Watt Inverter - Xantrex XC 3000 Pro
- Micro-Air soft start capacitor for the A/C







GTX12V315A-E2107-CS200-R7.pdf








Edited by Galway Girl
removed duplicate image
  • Like 2

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

  • Moderators

May I recommend the Victron MultiPlus over the Xantrex?  It's less than $300 more and will give you a true hybrid inverter/charger, 3000 watts, and would cover the biggest expense in creating a full Victron network, with all the bells and whistles that entails.

  • Like 1

❄️

Link to comment
Share on other sites

  • Moderators
Posted (edited)
20 hours ago, Galway Girl said:

I've read the posts so far but wonder what's been the most difficult part of those change overs?

Just getting everything in your head so you're not drowning in a sea of wiring connections.

Q: Are you buying the batteries directly from Lithionics or through Oliver?  I didn't think that Lithionics would sell to the public.  May I ask how much?

Edited by Overland

❄️

Link to comment
Share on other sites

Posted (edited)

I'm working with Oliver and Lithionics.
Lithionics doesn't sell direct to consumers.
Xantrex is used because that's what Oliver Factory is using and supported by Lithionics.


Edited by Galway Girl

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

2 hours ago, Galway Girl said:

John -- So  having the ability to turn on or off the charger is useful...and that I should let the lithiums drain down further before recharging.
Does that mean while connected to shore power I should turn off the Xantrex 2000XC Pro charger until the batteries are down to 50% ?

Yes, when connected to shore power, that's exactly what I do - I turn off the charger at 80% or so and back on at 50% - which is several days since there's primarily lights and fans draining the batteries slowly.  I figured out how to use the Xantrex 3000 software to turn the charger off and on.  I know the BMS protects the batteries from overcharge, but being full all the time does stress the cells as well.  If I know I'll be dry camping, I will top the batteries off, but I'll not keep the charger on (including solar) when they get back to 100%.  I'm not sure if any of this will increase the longevity of the batteries significantly, but I don't mind doing it so far.  Time will tell.



  • Like 2

States Visited Map

2020 Elite II, Hull 688 --- 2021 Silverado 2500HD, 6.6L Duramax Diesel

Link to comment
Share on other sites

  • 2 weeks later...
On 3/30/2021 at 4:14 PM, NCeagle said:

Yes, when connected to shore power, that's exactly what I do - I turn off the charger at 80% or so and back on at 50% - which is several days since there's primarily lights and fans draining the batteries slowly.  I figured out how to use the Xantrex 3000 software to turn the charger off and on.  I know the BMS protects the batteries from overcharge, but being full all the time does stress the cells as well.  If I know I'll be dry camping, I will top the batteries off, but I'll not keep the charger on (including solar) when they get back to 100%.  I'm not sure if any of this will increase the longevity of the batteries significantly, but I don't mind doing it so far.  Time will tell.



NCeagle

I like the idea of turning off the charger while still being on shore power. Could you share how you used the Xantrex software to turn the charger off and on. I have the 3000 watt inverter/charger with the Lithionics batteries. I downloaded the Xantrex app today, but did not see anything obvious in the settings to turn the charger off. Thank you

Alan & Judy

Strawberry Plains, TN

2021 Oliver Elite II

2021 GMC 1500 3.0 Diesel

Link to comment
Share on other sites

Posted (edited)

Alan,

NCEagle (John)  found a slick use of a SW feature and sent this to me earlier in a PM when I asked that same question:



"... I use the software switch called "Charger Ignition Control".  If "auto-on" the charger won't work without a car ignition - which the Ollie doesn't have so the charger is off when that switch is on.  Conversely, when the ignition control switch is set to "off" the charger will charge the battery whenever it has the power to do so."





Craig



Edited by Galway Girl
  • Thanks 2

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

Craig,

I had noticed this setting in the app, John's repurpose does offer a great feature. I will give it a try in the morning.

Thank you,

  • Thanks 1

Alan & Judy

Strawberry Plains, TN

2021 Oliver Elite II

2021 GMC 1500 3.0 Diesel

Link to comment
Share on other sites

  • 1 month later...

 An update for the forum on my project to upgrade to 2 new Lithionics GTX315 Batteries for Hull 505 - Galway Girl.
Some slide ware below is self explanatory...but if you have questions, please ask.

We'll be doing a month long road test in June.


Craig Short
Hull 505





124774712_ScreenShot2021-05-19at8_44_48AM.thumb.png.df51d0c928672131e76f2e4a33317922.png



________________________________

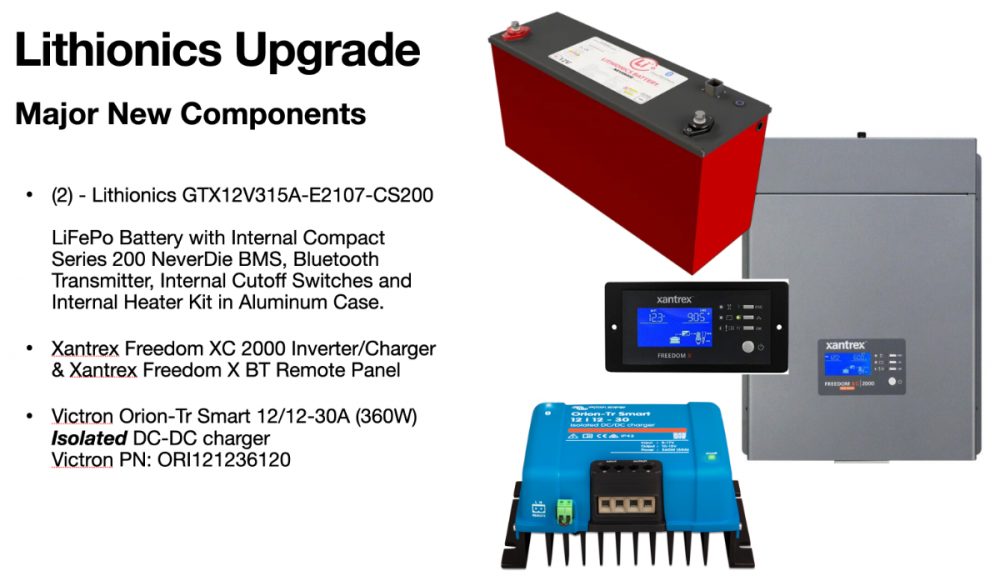

What are we adding?



1603419013_ScreenShot2021-05-19at8_45_18AM.thumb.png.3b0c2d8fc3a628fa449ecd2f3e238a77.png

________________________________

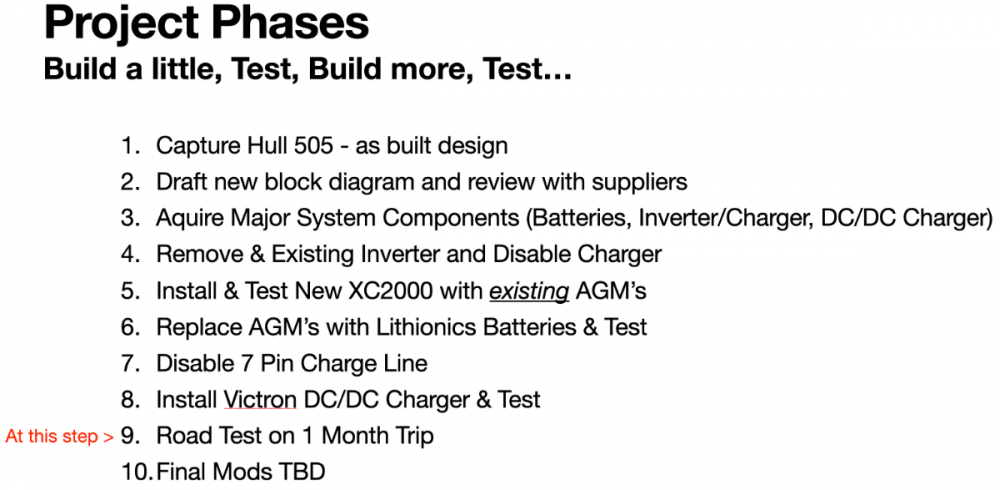

Project plan:

61846080_ScreenShot2021-05-19at8_45_41AM.thumb.png.701a2e98992e7078d715798de4d0cf13.png

_________________________________________________

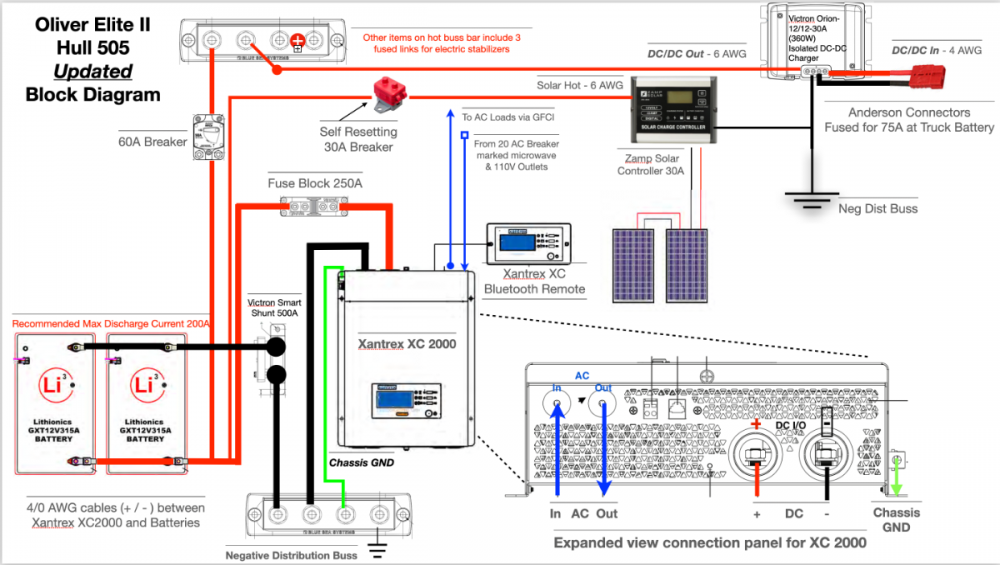

New System Level Block Diagram:

1599482494_ScreenShot2021-05-19at8_48_32AM.thumb.png.58c7fadc40c834b1222c0f09c9d6fba5.png

___________________________________________________

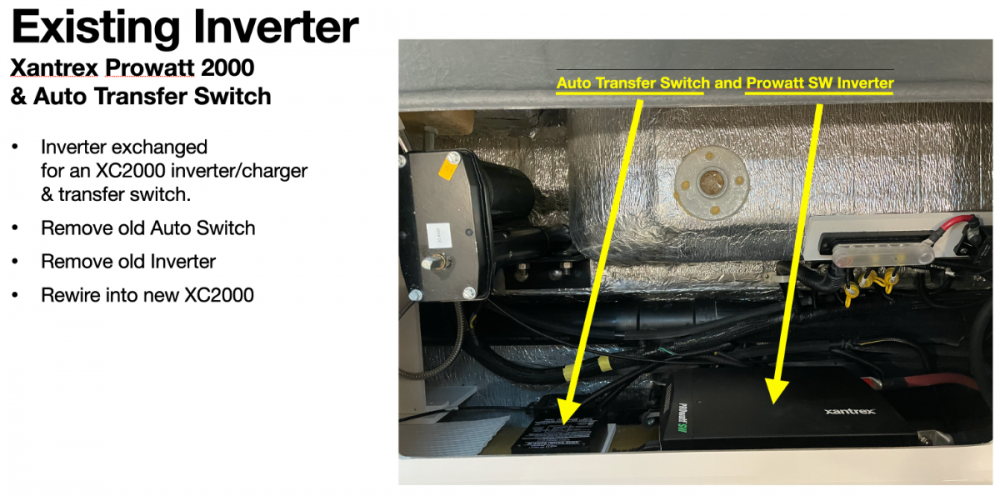

What we are removing from Hull 505:

987101009_ScreenShot2021-05-19at8_46_06AM.thumb.png.276a8995075b8a4f3e1c4239af549b47.png

_____________________________________________________________________________________________________

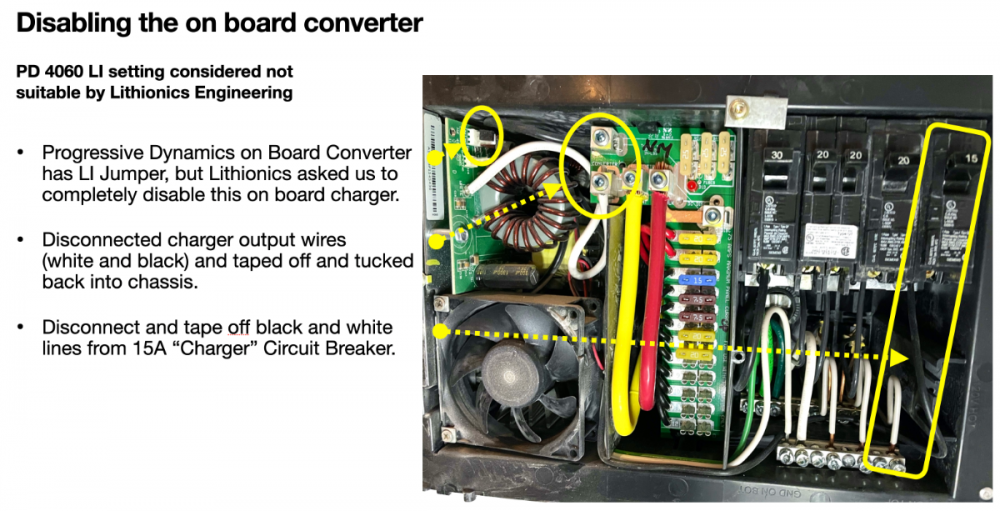

How to disable the existing onboard Progressive 4060 converter / charger:

1791480601_ScreenShot2021-05-19at8_46_39AM.thumb.png.3518f6b33cad1e692fadb7658c624efc.png

_______________________________________

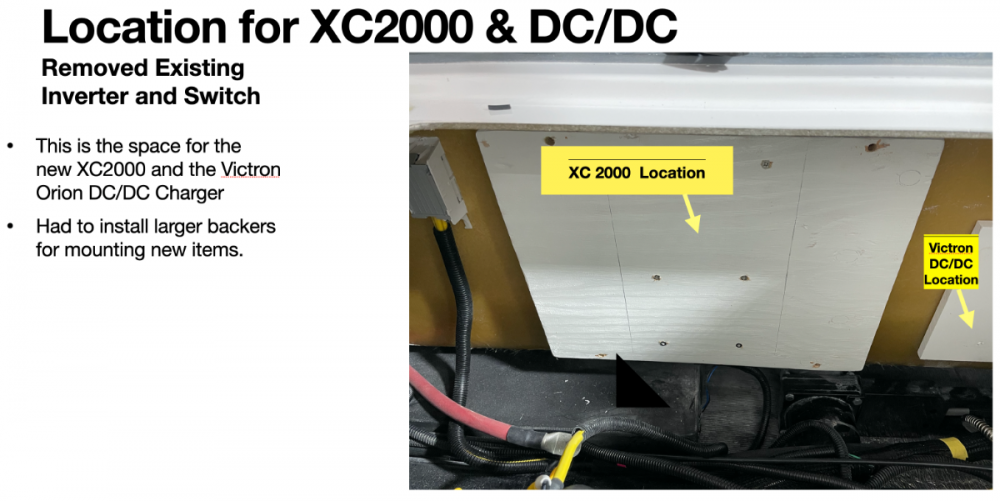

New Components Installed:

1458003228_ScreenShot2021-05-19at8_46_56AM.thumb.png.10828aec34c0f854cf3f9661e37d67b0.png

_________________________________________________________________________________

The finished installation:

1035623142_ScreenShot2021-05-19at9_40_02AM.thumb.png.a4b39d5462d6559a6eaafd1f66ba3856.png

______________________________________________________________________

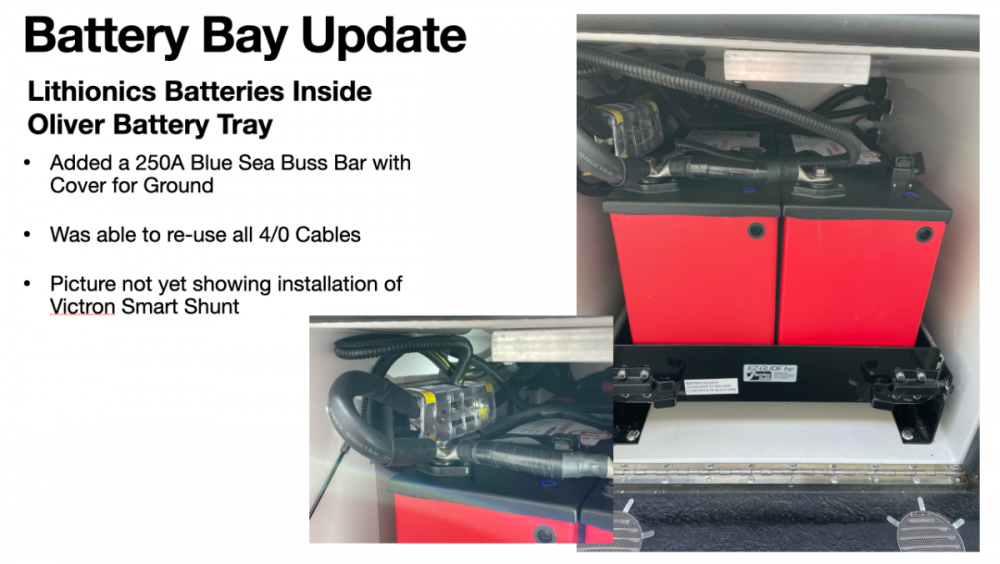

Battery Bay with (2) Lithionics GTX 315's Installed:

115589367_ScreenShot2021-05-19at9_32_32AM.thumb.png.e11c13ce45196608694fa92c031dcfde.png_____________________________________________________________________________________________________

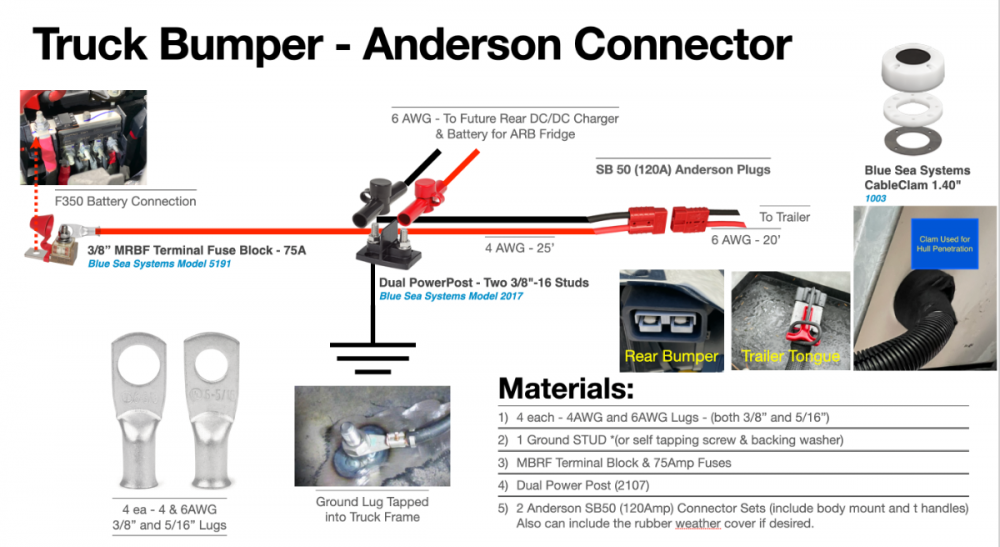

Victron DC/DC Charger Modification - new wiring run and hull penetration

In this case we used a Blue Sea CableClam for the hull penetration to maintain a sealed exterior.

520366898_ScreenShot2021-05-19at9_24_02AM.thumb.png.2e9b38a544375e1c2158f1f162e327a2.png





1242127529_Hull505Upgrade.pdf

  • Like 5

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

Craig:

Impressive - Documentation is very well done.

What do you estimate the conversion will cost in total.

Any reason why your AGM's were so short lived?

RB

Cindy,  Russell and  "Harley dog" . Home is our little farm near Winchester TN

2018 Oliver Legacy Elite II - 2018 GMC 2500 Duramax

"Die young - As late as possible"
ALAZARCACOFLIDMTNVNMOKORTNTXUTWAWYd56201









Link to comment
Share on other sites

The AGM’s were Trojan brand, but the ones in a black plastic case made in China. They are cheaper OEM versions with a one year warranty.

The Trojan support line told me they are inferior to the US made Trojans in the maroon cases. There wasn’t a specific event that caused them to fail, other than one having a short and taking out the other 3.

For the upgrade I estimate the total cost including all the parts, cabling and main gear a bit over $10,000.00










  • Like 1

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

I queried Craig on the Oliver Facebook page and thought I'd recap his answers here for continuity..



Ralph>> I know you worked closely with Oliver, but wasn’t sure what they provided. Did you source all your major parts via Oliver or just the Lithionics?

"Craig Short

Author

It was a team effort as I originally planned to have it done at the factory in the fall, but my Agm’s died in February.
All the wiring, cables, buss bars etc. were locally sourced from Marine Suppliers.

Lithionics was able to supply the GTX315 batteries, Xantrex XC2000 inverter/charger & Bluetooth controller, and the Victron Orion 12/12-30a chargers. (They resell those brands.)

Oliver provided guidance on how to disable the 7pin, how to disable the Progressive on board converter and how to hook up the new inverter to existing circuits. They also suggested where & how to safely drill holes for new 6awg DC/Dc charger wires and how to use the Through Hull CableClam for waterproof Hull penetration.

Ford Body Builder Service told me where to hook up my 6 AWG wires and how to put in a new chassis ground lug.  https://fordbbas.com/home"
  • Like 2

2020 Legacy Elite II Hull 625 - 2013 Lexus LX 570

San Antonio/Boerne - Texas Hill Country

Link to comment
Share on other sites

Craig, did Oliver Service give you a retro-fit labor estimate to do all of this, if you had it done there?

2020 Legacy Elite II Hull 625 - 2013 Lexus LX 570

San Antonio/Boerne - Texas Hill Country

Link to comment
Share on other sites

No, we hadn't received an upgrade quote from Oliver before I had to move forward with a self install.

It's likely any Lithium battery upgrade prices from Oliver will depend upon your specific Hull's existing components and exactly what has to be changed for your upgrade.

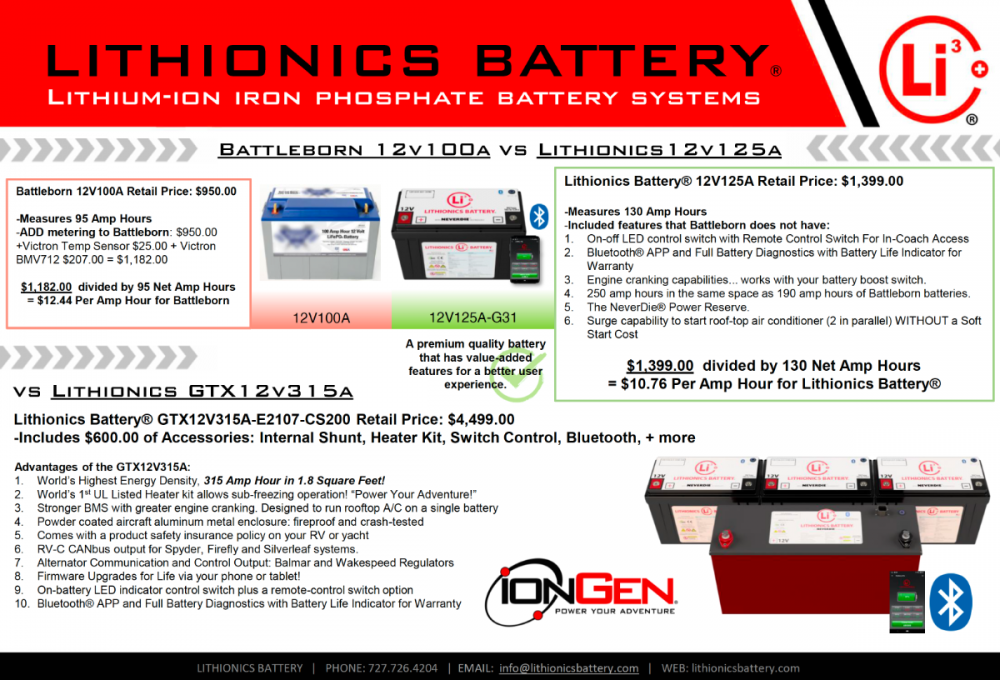

For example, if your hull is already wired up with either an XC2000 or XC3000 Inverter/Charger the cost should be much different  than I paid since I had to also add a new Inverter/Charger.  Oliver now carries two different Lithionics Batteries. They are compared against Battleborn in the chart below from Lithionics.

Best bet is to get with Jason and the Service Team to discuss an upgrade quote.

Hope that helps.

I decided to go with Lithionics because of:
1) Quality of their design
2) UL Testing and Certifications
3) Designed in features like heaters in the GTX, built in bluetooth shunt monitors, designed in cutoff switches...that reduces overall costs and install complexity.

Craig



579560572_ScreenShot2021-05-20at7_12_11AM.thumb.png.66cd45c18eab69090efbe0811415986a.png

Craig




2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

13 hours ago, Galway Girl said:

The AGM’s were Trojan brand, but the ones in a black plastic case made in China. They are cheaper OEM versions with a one year warranty.

The Trojan support line told me they are inferior to the US made Trojans in the maroon cases. There wasn’t a specific event that caused them to fail, other than one having a short and taking out the other 3.

For the upgrade I estimate the total cost including all the parts, cabling and main gear a bit over $8500.00










That sounds like a really good price considering Oliver charges $11000 for just those batteries and the 3000 watt inverter.  What was the individual cost for the batteries?  I have a delivery date in Nov and was considering the lithium pro package.  I was originally just going to do it myself since I was not thrilled with the Lifeblue batteries.  I now understand that Oliver is exclusively installing Lithonics with I assume I will get at the 2021 model price of $8999 which is a pretty good deal when those batteries are included.  I would like the larger batteries that you have installed but the factory price is  quite a bit high for what you get compared to the lithium pro package.  Do I understand correctly that you purchased the batteries and other equipment from Oliver since lithonics doesn't sell to consumers?

As a side topic has anyone replaced the generic lock on the battery tray with something a little more secure?  Having thousands of dollars worth of batteries with a generic lock leaves me a little apprehensive.



John

2021 GMC Sierra 2500 AT4 6.6L Duramax 11350 GVWR  3048lb Payload

2021 Oliver Elite II  (09/21 delivery). Hull #887

Link to comment
Share on other sites

Just saw this tear down comparison between Lithionics GTX315 and Battleborne.





My update to Lithionics  is complete and we’re going out for a month of ttravel to test.





  • Like 1

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

Next UP - Setting Up the Truck to Power additional Electrical Items:

After upgrading to the Lithiums for the Trailer, I decided to move 2 AGM's into the back of our Truck as campsite power.
They will provide added power (210AH)  to be used by our ARB Fridge, Compressor and any other 12V Electrical devices.
To keep the batteries charged while driving I installed a Redarc 25A BC/DC Charger.
In future I may put solar on the Roof of the truck to power the Redarc MPPT controller also to charge those 2 AGM's.
(I also have the ProWatt 2000W Inverter I removed from the trailer that might be mounted later for Campsite AC Power.)

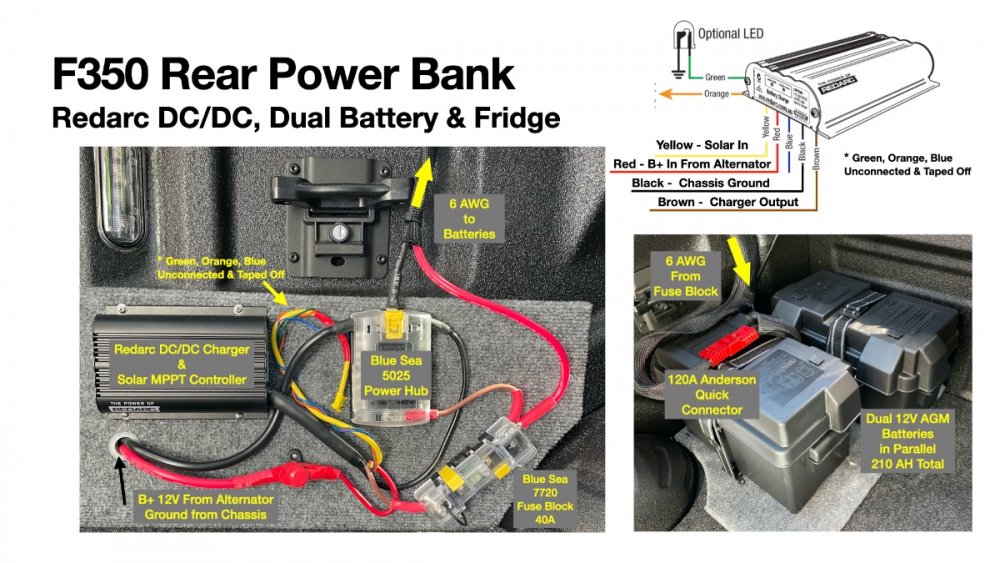

Here's a overview of the installation.








  • Like 1

2019 Elite II (Hull 505 - Galway Girl - August 7, 2019 Delivery)
Tow Vehicle: 2021 F350 King Ranch, FX4, MaxTow Package, 10 Speed, 3.55 Rear Axle
BLOG:  https://4-ever-hitched.com



Link to comment
Share on other sites

  • 3 months later...

JPS 190  "As a side topic has anyone replaced the generic lock on the battery tray with something a little more secure?  Having thousands of dollars worth of batteries with a generic lock leaves me a little apprehensive."

John:

I was thinking the exact same  thought.  However, the latch itself would be an easy to defeat pry target.

Somewhat tongue in cheek, a "Let's Over-Think This" off the wall idea, but maybe feasible if the Pantry is tall enough:

OPTION 1:  How about reinforcing the back of the latch side of the hatch, and adding horizontal tangs high and low (But for JD one in the middle too! 🙂.)  pointing into the battery box.  Drill a hole in each tang for a pin to drop through.  Add holes in the ceiling and floor of the battery compartment.  In the pantry, have a vertical pin with a cord attached to the top of the pin, and a long taper on the bottom of the pin.  Pin would be well smaller diameter than the holes in the tangs.  Put a pulley on the top of the pantry over the stack up of holes.  Run the cord to the front of the pantry so that operation of the drop dead pin (Aka dead bolt) to be operated from inside.

OPTION 2:  Less complex would be to just install two of those cord operated automatic flush bolts.  Reinforce the battery compartment with the provided latch plates.  Add a pulley on the top of the bottom latch, run the top latch cord down to the pulley, then up and connect with the lower latch cord.  Then extend a single cord up into the pantry.  Once in the pantry, use another pulley to allow the cord to then run to the front of the pantry for easy access for opening the latches.  For the professional "over thinkers", add a spring to the battery compartment so that the door will pop open when pulling the cord from the pantry.  LOL.

OPTION 3:  Add an exploding dye charge to "highlight" the thief.  Won't stop the batteries from being stolen, but it will at least bring a smile to your and the Police Officer faces when you describe what the thief looks like.






Geronimo John

Tug:  2019 F-150 SuperCrew Lariat, 3.5L EcoBoost, Max Trailer Tow, FX-4, 4X4, Rear Locker

ALAZARCACOIDKSKYLAMSNENVNMNCOKORTNTXUTVA













Link to comment
Share on other sites

Craig:

I have studied your Oliver lithium and F-350 DC to DC installation and am very impressed by your design and attention to detail.  Thank you for sharing it with our fellow OTT trailer owners.

 I will be installing three 100Ah Battleborns in my LE2 this next summer.  To take advantage of their summer sale (Saved $450), I have advance purchased the three Battleborn batteries, and a Victron 712 Smart. Your documentation is my reference bible for the effort.

 I cover a lot of miles each summer, mostly boondocking without solar.  As such, I am now planning to replicate your F-350 DC-to-DC charging system for my F-150 TV.  Currently I am in the process of planning and preparing the BOM.  If you don’t mind, I would like to ask you some questions and get your thoughts:

 1.      Concerning the 4 AWG stranded copper wire:

 ·       Where did you purchase your wire?  The best so far that I have found is BatteryCables USA.

 ·       Did you use cable that was “bonded” with a rib (Jumper Cables), or two separate cables?

 ·       What path did you run your cables:  Into the frame, into conduit outside of the frame, inside the cab, or just attach it under the body periodically down the line?

2.       Like most Ollie’s, mine is loaded well and does not sway.  😊  This affords the opportunity to grease my Anderson 2 5/16” ball for wear reduction purposes.  Generally speaking, as a result, the negative connectivity between my LE2 and F-150 is impacted.  The remaining grounding between the LE2 and TV effectively is via the two safety cables and the small 7 pin ground wire.  This works ok for trailer lights, but I would not want to rely on these for the DC-to-DC effort.  As such, I plan on running two 4 ga wires from the TV battery to the Anderson plugs, and on to the DC to DC and my Battleborns.  Did you do yours that way or just run a single 4 ga cable and then use short chassis grounds on both ends of the Anderson Connectors?

 2.     Which version of the Orion DC to DC unit did you use:  Grounded or Isolated Unit?

3.     The DC-to-DC charger is listed as 87% efficient.  With a 30-amp output, the input would be 34.5 amps.  With one way wire length of 45’ (From your report), and some assumptions, I checked the voltage drop battery to battery.  With my assumptions for the calculator, It shows an 8.04% voltage drop.  This exceeds the normal accepted standard of 3%.  Does the DC-to-DC charger act as an automatic “Buck/Boost” transformer thereby pretty much negating the voltage loss concern?  My WAG is that battery to battery connections would greatly ameliorate most of the smart alternator voltage variable output changes due to the “Stored Energy” of the batteries themselves.  Your thoughts?

 4.     Did you experience any hick-ups with the Ford smart alternator causing issues for the DC-to-DC charger (See below Victron Info)?  Did you have to make any adjustments to the factory pre-sets in the Victron charger as a result?  If so, what were the changes?

 5.     I noted that your report indicated that you fused your cables at the battery at 75 Amps.  For a 45’ cable run, this is pretty high.  Since my only load on the cables will be the DC-to-DC charger, and it’s max loading will be about 35 amps, I am considering using just a 40 or 50 amp fuse or breaker.  Your thoughts.

 I thank you for your time, and again I VERY much appreciate your postings and comments!




Edited by Geronimo John
Took Questions Off Line to Galway Girl.

Tug:  2019 F-150 SuperCrew Lariat, 3.5L EcoBoost, Max Trailer Tow, FX-4, 4X4, Rear Locker

ALAZARCACOIDKSKYLAMSNENVNMNCOKORTNTXUTVA













Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

×
×
  • Create New...
